Description: Ships: Price:
ATTO ExpressPCI UL4D Dual-channel Ultra320-to-PCI-X SCSI Host Adapter for the Ultimate Data-Delivery Performance. ROHS Compliant (EPCIUL4D0RO) 24-48 hrs $449.99
Add to Your Basket:

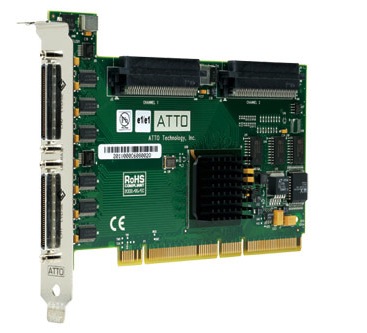

ATTO ExpressPCI UL4D
Dual Channel Ultra320 SCSI, PCI-X Host Adapter

Mac PC

This card adds:

  • Two Internal Ultra320 SCSI 68-pin Ports
  • Two External VHDCI SCSI 68-pin Ports

Requires:

  • Available PCI-X Slot

See Specifiactions below for system and/or OS compatibility information

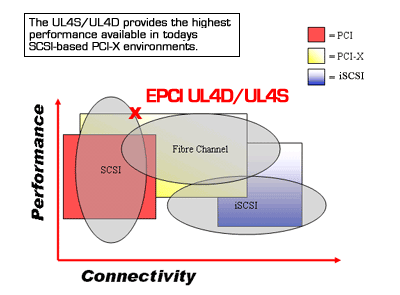

Today's computing applications continue to place incredible strain on the host PCI bus and storage subsystem. In an ongoing effort to bring new heights of performance and reliability to today's professional applications, ATTO is pleased to introduce the ATTO ExpressPCI UL4D with PCI-X ... alleviating PCI bus bottlenecks. Leveraging this latest in SCSI storage connectivity, the UL4D delivers up to 640 MB/sec. data throughput - making it twice as fast as currently available SCSI host adapters. The UL4D's blazing fast speed, plus the advantage of the new PCI-X bus interface and improvements in the SCSI standard, enable it to deliver the high bandwidth required in data-intensive environments.

Specifications

Features

  • Ultra320 SCSI performance enables high throughput for servers and high-end workstations
    • Two external channels for aggregate throughput of up to 640 MB/sec.
    • Supports up to 30 SCSI bus IDs
    • Supports Low Voltage Differential (LVD) for cabling up to 12.5 meters per bus
    • Compatible with Single-ended SCSI devices, providing cable distances up to 3 meters
    • Supports all five original requirements of Ultra3 SCSI:
      • Double Transition Clocking
      • Domain Validation
      • Quick Arbitration Select
      • Packetization
      • Cyclical Redundancy Checks
  • Additionally, the UL4D supports Ultra320-specific features such as Free-Running Clock, Read/Write Data Streaming, Flow Control, Training Patterns, Pre-compensation, and Asynchronous Information Protection (AIP)

SCSI Interface

  • 320 MB/sec. per channel data-transfer rates
  • Two (2) external VHDCI and two (2) internal high-density connectors per channel
  • Low Voltage Differential (LVD) signaling
  • Support for tagged command queuing
  • Backward compatible with Ultra 160, Ultra2, Ultra/WIDE, Fast/WIDE and
  • Narrow SCSI devices

Advanced SCSI

  • Double transition clocking
  • Domain validation
  • Cyclical Redundancy Checking (CRC)
  • Packetization
  • Quick Arbirtration Select (QAS)
  • ASPI compliant (for PC users)
  • Bootable from attached disks
  • Support for disconnect/reconnect
  • Support for multiple block sizes

Advanced Data Streaming (ADS)

  • Improved PCI system bandwidth use
  • Optimized SCSI-3 algorithms
  • Tagged command queuing
  • Embedded RISC I/O processor

Accelerated PCI Bus Management

  • PCI-X bus master rate of 1 GB/sec.
  • PCI-X 1.0a compliant
  • PCI 2.2 and PCI 99 compliant
  • 64-bit/133 MHz PCI-X (backward compatible with standard PCI)
  • General Characteristics:
    • Automatic termination
    • Upper-byte termination for Narrow devices
    • Flash ROM BIOS for easy field upgrades
    • PC 99 compliant
    • Plug and play compatible
    • Includes ATTO ExpressPro-Tools™ and ATTO Configuration Tool formatting

Dimensions:

  • Length 6.521"
  • Height 4.450"

Operating Environment:

  • Temperature: 0-45º C
  • Humidity: 10-90% non-condensing
  • Airflow: 100 LFM (min)

Reliability:

  • MTBF = 150,000 hours
  • MTTR < 15 Minutes

Power:

  • 0.75 typical/2.0 max. Amps @ + 5.0 VDC
  • 0.05 Amps @ + 12.0 VDC

PCI Signal Compatibility:

  • 3.3 Volts/5 Volts universal

OS Compability

  • Windows Server 2003
  • Windows XP
  • Windows® 2000 /NT
  • Mac® OS X
  • Linux
Warranty: 3 Year ATTO Warranty
Click here to get your Model Identifier number
This PCI Card is compatible with the following Computers:

Machines Have Model Identifier PowerMac7,2

Power Mac G5 (dual 2.0GHz)
(April, 2005)

Machines Have Model Identifier PowerMac9,1

Power Mac G5 (1.8GHz)
(October, 2004)

Machines Have Model Identifier PowerMac7,3

Power Mac G5 (dual 1.8GHz, dual 2.0GHz, dual 2.5GHz)
(June, 2004)

Machines Have Model Identifier PowerMac7,2

Power Mac G5 (1.6GHz, 1.8GHz, dual 1.8GHz, dual 2.0GHz)
(June, 2003)

Compatible with PCs with an available 64-bit PCI-X
expansion slot (preferred) or a standard 32- or
64-bit PCI expansion slot.
