ATTO ExpressPCI UL5D Low Profile
640MB/s Ultra320 SCSI Host Adapter
RAID Ready | Up to 30 Ultra320 SCSI devices

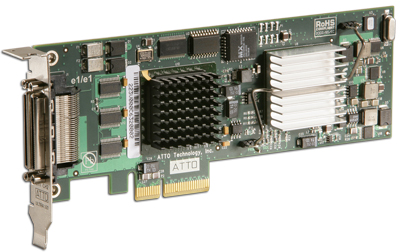

The ATTO ExpressPCI UL5D Low-Profile SCSI host adapter is the industry's first true low-profile PCIe SCSI host adapter. The UL5D LP offers users the same high-performance and feature set that ExpressPCI SCSI host adapters are renowned for, but due to the low-profile form factor of the UL5D LP, it is also ideal for integration into enclosures where space is at a premium, such as 1U/2U server chassis. The UL5D LP offers external dual-stacked VHDCI SCSI connectors, allowing direct-attached applications to realize data-transfer rates of up to 640 MB/sec.

OWC Note: This is a special-order item - no returns allowed except for DOA replacement within 15 days of shipment delivery.

Highlights

• Ultra320 SCSI

• Up to 320 MB/sec. per channel data-transfer rates

• Dual independent SCSI channels

• x4 PCI Express host connectivity

• Exclusive Advanced Data Streaming (ADS™) Technology

• Driver support for Windows®, Mac® OS X, Novell Netware®,and Linux

• Supports up to 30 SCSI bus IDs

• Up to 12 meter cable lengths
• On-board termination

• Flash ROM for easy field upgrades

• Plug and play compatible

• Includes ATTO ExpressPro-Tools™ & ATTO Configuration Tool formatting & utility software


The ExpressPCI UL5D LP offers support for the next generation of PCI bus technology with a 4-lane PCI Express (PCIe) interconnect. By leveraging the high-performance of both PCI Express and Ultra320 SCSI, the UL5D LP is an ideal fit for data-intensive environments, including video-editing applications requiring support for multiple streams of 10-bit highdefinition video. The combination of highperformance and a low-profile form factor provides an ideal solution for space constrained enterprise servers, as well as high-end workstations running high-volume, mission critical applications such as messaging and databases.

With features including Ultra320 SCSI, PCI Express technology, the industry's first true low-profile form factor dual channel design, and ATTOexclusive technologies such as ADS, the ExpressPCI UL5D LP is perfect for providing highperformance Ultra320 SCSI to space-constrained chassis and enclosures.
