| Description: | Ships: | Price: |
|---|---|---|
| The Alesis M1 Active 520's are 50W/25W bi-amped near-field monitors with 5" woofers that offer incredible bass and midrange definition with flat frequency response from their high-precision drivers and professionally crafted crossovers. (M1ACTIVE 520) | 24-48 hrs | $199.00 |
|
|
ALESIS

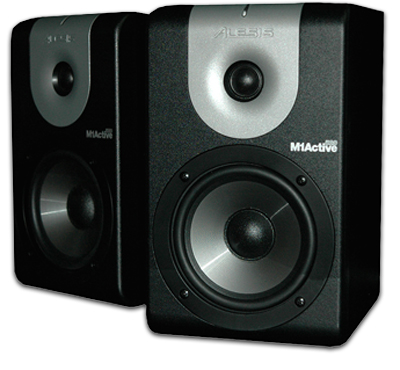

M1Active 520 Reference Monitors
The M1 Active 520 is the third generation of the acclaimed Alesis M1 Active Series. The M1 Active 520 offers incredible bass and midrange definition and flat frequency response from its high-precision driver and professionally crafted crossover.
With a bold new look, redesigned driver, bass density control and EQ, this affordable, high-precision active reference monitor delivers superb sonic clarity.
These speakers are like a "sound microscope" that will allow you to hear every nuance of your mix and help you make better mixes.
With a bold new look, redesigned driver, bass density control and EQ, this affordable, high-precision active reference monitor delivers superb sonic clarity.
These speakers are like a "sound microscope" that will allow you to hear every nuance of your mix and help you make better mixes.
- Gallery
Features
- Big sound without the Big price tag.
- Solid construction and stylish design.
- Excellent for desktop or small studio work.
- Incredible bass and midrange definition.
- Top mounted clip light turns from blue to red to indicate signal overload to prevent potential speaker damage.
- High-precision drivers offer lower distortion and smoother frequency response.
- Acoustical waveguide for superior imaging with minimal diffraction.
Product Specifications
Manufacturer Part Number
- M1ACTIVE 520
Bi-amplified Design
- Tweeter – 25W
- Woofer – 50W
Woofer
- 5" lightweight, magnetically-shielded, ultra-stiff polypropylene cone with rubber surround and high power handling voice coil
Tweeter
- 3/4" silk dome with magnetic shielding
Frequency Response
- 56 Hz - 20 kHz
Crossover Frequency
- 2.8 kHz
Signal-to-Noise Ratio
- >100 dB below full output, unweighted
Inputs
- XLR and 1/4” supporting both balanced and unbalanced cabling
Polarity
- Positive signal on "+" pin creates forward cone displacement
Input Impedance
- 20k ohms balanced or 10k ohms unbalanced
Input Sensitivity
- 85 mV noise (pink) produces 90 dB(A) output SPL at 1 meter. Gain knob turned fully clockwise (maximum)
Front Baffle
- 1" thick front baffle virtually eliminates speaker resonance
Density Switch
- Low frequency density switch for acoustic space adjustment of the monitors
Rear Port
- Rear port design provides deep bass extension and increased SPL
EQ Switches
- Hi, mid and low frequency EQ switches to accommodate user preference and sub-woofers
Power Bar
- Top mounted, integrated power switch/clip light bar
Warranty
Physical
- Dimensions: (W x H x D) 6.5” x 10.5” x 7.75” / 16.5 cm x 26.7 cm x 19.7 cm
- Net Weight: (each speaker) 13.0 lbs / 6.0 kg
Gallery
ALESIS
M1Active 520
Reference Monitors
Mfr P/N: M1ACTIVE 520
OWC SKU: ALEM1ACT520PR
The Alesis M1 Active 520's are 50W/25W bi-amped near-field monitors with 5" woofers that offer incredible bass and midrange definition with flat frequency response from their high-precision drivers and professionally crafted crossovers.
1 Year Manufacturer Warranty
Ships: 24-48 hrs
only
$199.00
