Description: Ships: Price:
Alesis MultiMix 4 USB - Four-Channel USB Mixer with USB stereo input and output. Dual-band EQ on mic inputs. Multicolor LED metering. Main and headphone outputs with independent level controls. 1 Year Alesis Warranty. (MULTIMIX4USB) Same Day $79.00
Add to Your Basket:

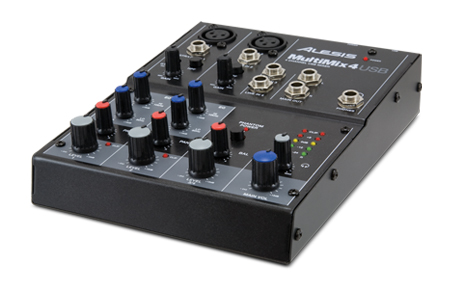

MultiMix 4 USB
Four-Channel USB Mixer

Desktop audio, solved.

Key Features

  • Four-channel mixer with USB stereo input and output
  • Low-noise digital 16-bit, 44.1 kHz signal on USB for easy computer interface
  • Four 1/4" line-level inputs plus RCA tape in/out
  • Two XLR mic inputs with gains, high-pass filters, and switchable 48V phantom power
  • High-impedance guitar input
  • Dual-band EQ on mic inputs
  • Multicolor LED metering
  • Main and headphone outputs with independent level controls

The MultiMix 4 USB is a four-channel desktop mixer with a USB digital audio interface built in. This compact mixer is perfect for using in basic computer-recording setups, video editing and production studios, and portable podcasting setups because it outputs not only line-level analog audio, but also stereo 16-bit, 44.1 kHz digital audio over USB for low-noise, easy computer connection. You can also monitor back from your computer through the same USB connection.

The MultiMix 4 USB mixer has four input channels, all of which can accept a 1/4" line input. You can can plug XLR microphones into channels one and two, including condensers thanks to the mixer's switchable 48V-phantom power supply. You can also plug a guitar or bass directly into channel one's switchable high-impedance input.

Channels one and two offer switchable high-pass filtering at 75Hz to eliminate low-frequency rumble, handling and wind noise. Each channel has an independent pan control and channels one and two provide high and low-shelving EQs. Channels one and two have independent gain trims, while channels three and four are configured as a stereo pair at the level and pan controls.

The MultiMix 4 USB has a two channel, five stage, multicolor LED meter for visual monitoring the main output level. A stereo, 1/4" headphone output has its own level control.









Specifications:

INPUTS: Line (CH 1, 2): 10 K Ohms input impedance
5.5 mV ~ 4.9 V RMS sensitivity for max output
Mic (CH 1, 2): 600 Ohms input impedance balanced
700 mV RMS sensitivity for max output
Line (CH 3, 4): 700 mV RMS sensitivity for max output
HPF (CH 1, 2): 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB)

OUTPUTS: Line: 7 V RMS max
Headphone: 0.5 W into 47 Ohms

SIGNAL-TO-NOISE RATIO: Line: > 92 dB
(max output; JIS A-weighted) Mic: > 62 dB

DISTORTION: < 0.02%

FREQUENCY RESPONSE: Line: 20 Hz – 20 kHz (± 0.5 dB), Mic: 20 Hz – 15 kHz (± 0.5 dB)

CHANNEL EQUALIZER: Bass: ± 14 dB @ 80 Hz, Treble: ± 14 dB @ 12 kHz

CHANNEL FADER KILL: > 90 dB @ 1 kHz

CROSSTALK: > 85 dB @ 1 kHz

INTERFACE: USB1.1 or higher (stereo in and stereo out)

POWER ADAPTER: 10 V AC, 500 mA



Weight:

  • 1.5lb

Dimensions:

  • 7 3/4 L x 6 W x 2"H



System Requirements:

  • Mac: OS X 10.2+
  • Windows: XP, Vista, or 7
  • USB port

Warranty:
