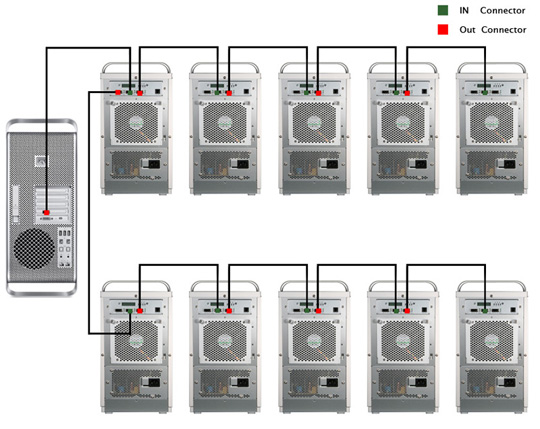

The iT8 SAS Expander is a tower-style enclosure sporting a smooth, modern design that compliments any desktop workstation in style. Through the process of Daisy Chaining, you can connect up to 10 of these enclosures to reach a maximum capacity of 160TB of storage, making this the perfect solution for growing businesses and studio environments.
- Store up to 16TB of data per enclosure, and up to
160TB of data at full expanded capacity.
- Expand your configuration to up to 10 enclosures,
totaling 80 hard disk drives.
- 8 hot-swappable 3.5" disk modules, with secure
locking for SATA II drives.
- Supports RAID levels 0, 1, 5, 6, and 10 or JBOD
configuration.
- Removable Silent Fan Technology that cuts down
the noise level.
- Lightweight, heat-dissipating aluminum-finished
enclosure.
- Mac, Windows, and Linux Systems compitable.
Professional Low Noise Fan
Module Professional Low noise technology makes the iStoragePro Series perfect choice for edit suites and audio video recording Enviroment, who can not tolerate the noise within the studio quiet listening environment. iStoragePro series can dramatically cut back the system noise level compared to most desktop systems in the industry. Fan Module design for field replaceable to ensures data integrity.
|
|
 |
|
|
iStoragePro's Tower 8 Bay SAS Expander JBOD can perform the daisy chain configuration up to 128 HDDs based on RAID controller card's specification.
|
 |
Ideal for: Digital content
creators, digital audio & music production, video post-production, graphic design,
digital photography,
pre-press, D2D backup, video surveillance and game programming. |
| Additional Views |
 |
 |
|
| Product Specifications: |
| Capacity: |
16.0 TB (8x 2.0TB) |
| Drive Interface: |
8x 3.5" 3Gb/s SATA (Serial ATA) |
| RAID Modes Supported |
RAID levels 0, 1, 5, 6, and 10 or JBOD |
| Qualified RAID Controller Cards (Mac): |
|
| Qualified RAID Controller Cards (PC): |
|
| Port Configuration: |
- 1 MiniSAS Host Port*
- 2 MiniSAS Expander Ports**
|
| Operating
Systems Supported: |
|
| Power Supply: |
Universal Auto-Switching |
| External Case Dimensions: |
16" x 7" x 12.75" |
| Bare Enclosure Weight: |
20 lbs |
| Package Contents: |
- 1 Tower Storage Enclosure
- 1 A/C Cable
- 1 Accessories Box
- 1 User Guide
- 8 Removable Drive Trays
|
| Warranty: |
3 Year CiDesign Warranty*** |
|
* Host Port refers to the connection slot used to connect to your computer system.
** Expander Port refers to the connection slot used to connect to other SAS Expander-based systems.
*** Certain restrictions apply. |
