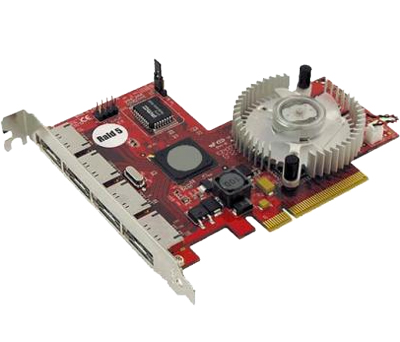

4 Port eSATA PCI Express Host Adapter
Up to 20 SATA devices | Port Multiplier

This card adds:
- Four External eSATA 3Gb/s Ports (up to 5 eSATA devices each)
Requires:
- Available PCIe 1.0 x8 lane Slot
See Specifiactions below for system and/or OS compatibility information |
The eSATA_PCIe8, based on the SiI-3124A chipset, is a single-chip 8x PCI Express to 4-port eSATA host controller that takes SATA performance and features to enterprise levels. |
 |
|
Highlights
- Four eSATA (External SATA II) ports (3 Gbps)
- 8x lanes electrical PCI Express host connection offering 20Gbps
- Supports Port Multipliers with FIS based switching and SteelVine® Storage Processors
- Support for Software RAID 0, 1, 5, 10 with RAID bios (jump-able)
- Connect to Twenty drives via Port Multiplier SiI-3726
|
Dat Optic's eSATA_PCIe8 Four Port eSATA PCI Express Host Adapter brings server-class features to the desktop, with support for up to twenty SATA II drives via Port Multiplier technology.
Suports RAID levels 0, 1, 5, and 10
The eSATA_PCIe8 comes with drivers for the Windows, Linux and Novell Netware operating systems for both RAID and non-RAID operations. Software RAID 0 (striping), RAID 1(mirroring), RAID 1+0 (mirrored stripe), and RAID 5 (parity stripe) functions are supported through Silicon Image's SATARaid™ RAID management GUI software utility.
Support for FIS Based Port Multipliers
The eSATA_PCIe8 based on the SiI-3124 chip-set supports port multiplication using FIS based switching. Traditional SATA controllers only support CMD based switching which can only access a single drive at a time, limiting performance to that of the drive being accessed. The eSATA_PCIe8 accesses multiple drives simultaneously, effectively aggregating the bandwidth of all the drives.
|
|
| Includes |
- eSATA_PCIe8 PCI Express Card
- User manual on CD
|
|
|
| Specifications |
| Ports |
- Four External SATA 3Gb/s Ports.
|
| Connections |
|
| Bus Specifications |
|
| Form Factor |
|
| RAID |
- Supports RAID 0,1,5,10 and JBOD
- RAID mode: jumper set @ 1~2
- BASE /JBoD mode: jumper set at @ 2~3
|
| RAID Controller |
|
| Operating System Support |
- Windows XP/Vista/2003 Server/2008 Server /Win7*- 32bits
- Windows XP/Vista/2003 Server/2008 Server - 64bits
- Linux 32 / 64bit; Novel Netware
- Macintosh OS 10.4, 10.5, and 10.6*
|
| External Connectivity |
|
| Internal Connectivity |
|
| Warranty |
|
| Physical |
|
| Dimensions |
- 4.75" x .875" x 5.25" (121 x 22 x 133mm)
|
| Weight |
|
| Power |
- Operational Voltage : 3.3V/ DC
- Operational Current :155mA ~ 400mA
|
| Operating Temperature (Hardware Environment) |
|
| Relative Humidity |
|
* - Only in BASE bios (JBoD) |
| Click here to get your Model Identifier number |
| This is compatible with the following Mac Pro models: |
 |
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 8-Core, 2.4GHz)
(July, 2010)
|
 |
|
Machines Have Model Identifier MacPro5,1
Mac Pro (Mid 2010 Quad-Core, 2.8GHz, 3.2GHz)
(July, 2010)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 8-Core, 2.26GHz, 2.66GHz, 2.93GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro4,1
Mac Pro (Early 2009 Quad-Core, 2.66GHz, 2.93GHz, 3.33GHz)
(March, 2009)
|
|
|
Machines Have Model Identifier MacPro3,1
Mac Pro (Early 2008, 2.8GHz, 3.0GHz, 3.2GHz)
(January, 2008)
|
|
|
Machines Have Model Identifier MacPro2,1
Mac Pro (8-core, 3.0GHz)
(April, 2007)
|
|
|
Machines Have Model Identifier MacPro1,1
Mac Pro (Original, 2.0GHz, 2.66GHz, 3.0GHz)
(August, 2006)
|
|
 |
Machines Have Model Identifier PowerMac11,2
Power Mac G5 (Late 2005, 2.0GHz, 2.3GHz, dual 2.5GHz)
(October, 2005)
|
|
 |
PC running Windows, Linux or FreeBSD
and available PCI-Express x8 lane or better slot
|
|
|
|
