| Overview |
Up to 8 Drives of Instant Expansion to 16TB and Beyond
 Grow your storage to meet your data capacity needs with minimal effort. To add capacity, simply insert a new hard drive or replace your smallest drive with a larger one, even when all eight-drive bays are full. Unlike traditional RAID systems, the BeyondRAID technology found on DroboElite enables you to mix and match capacities, drive brands and speeds. This allows for continuous expansion as drive capacities grow. With DroboElite, expansion is automatic, instantaneous and access to data is always maintained. |
No Headache Dual-Drive Redundancy
Enable the dual-drive redundancy option to protect against the simultaneous failure of up to two hard drives. It’s all done with a single click, without ever losing access to your data. Running out of space? You can click to switch back to single drive redundancy. Unlike moving between traditional RAID 5 and RAID 6, there’s no need to reformat or migrate data off of the array, potentially saving you hours or days of downtime. |

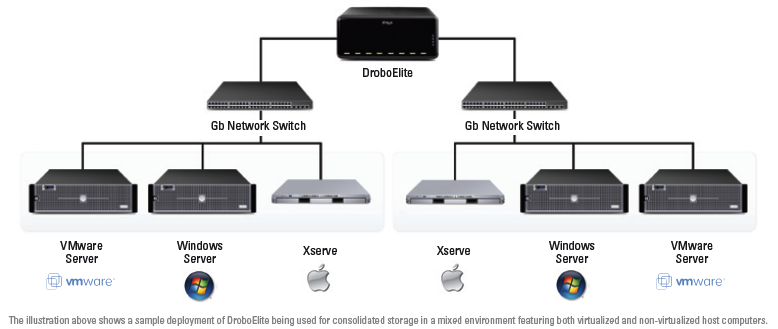

Multi-Host Connectivity
Have multiple servers that need storage? No problem. The DroboElite connects seamlessly to your existing TCP/IP network and utilizes the industry-standard iSCSI protocol to provide simple, consolidated storage for your servers. |
Dual High-Speed iSCSI Interfaces
Unfamiliar with iSCSI? It’s an industry- standard, high performance protocol that has become extremely popular with businesses and individuals who demand high data storage throughput, but it can often be complex to manage. DroboElite changes that by introducing zero- click iSCSI connection creation with optional LUN-level CHAP authentication for both Windows and Mac OS X. |
The Virtues of Smart Volumes™
Create new volumes in seconds and manage up to 255 x 16TB volumes over time with ease. The innovative and timesaving Smart Volume management technology integrated into DroboElite allows volumes to pull storage from the common pool of drives rather than a specific physical drive allocation, eliminating the need to manage capacity at the volume level. Smart Volumes are also data aware, allowing deleted data blocks to be returned to the common pool and ensuring that volumes remain as efficient as possible over time. |
Simplify Your VMware Environment
Storage is an integral part of a successful virtualization strategy. DroboElite has been tested for use with VMware to eliminate risk from your storage decision and help accelerate deployment of your virtual server environment. |
Rack Mount Ready, Desktop Quiet
DroboElite is equally at home in a rack mount environment as it is on your desktop. Dual smart fans automatically manage their speeds to optimize both cooling and minimize operating noise. |
What’s Stored on Drobo?
Drobo S has the speed to act as your daily, primary
hard drive, and the safety and capacity for backup
storage of large media and productivity files such as
video, photos, music, audio, documents, and
spreadsheets. Drobo S is ideal for small business
owners, creative professionals, graphic designers,
photographers, video editors, educators, home offices,
and home media. |
| Technology |
BeyondRAID™ Technology
Every Drobo product comes with the revolutionary BeyondRAID storage technology — the next generation of redundant disk protection. BeyondRAID not only keeps your data safe, but will also increase uptime and availability. BeyondRAID technology offers several improvements over traditional RAID-based storage systems, including the flexibility to replace failed disks and increase capacity all without costly downtime.
Key features of BeyondRAID include:
- Data protection against hard disk failure
- Instant capacity expansion without downtime
- Self-management
- Automatic healing
|
Storage Virtualization
BeyondRAID was designed from the ground up to allow the storage capacity of the array to expand and contract. BeyondRAID makes this a simple process by utilizing a technology called “virtualization.” Virtualization provides a layer of abstraction between the data requested by the file system and the physical location of that data on the disk drives. A given piece of data can be located on any drive, and on any physical location on that drive. This is what makes adding a drive to a Drobo so simple. The new drive just provides additional places to store data.
Virtualization is what enables BeyondRAID to effortlessly change the data arrangement on the drives, for example, changing data stored as a mirror into data stored as parity stripe, without interrupting the user access to data. Virtualization completely decouples the physical space available in the array from the space reported to the operating system. This is how BeyondRAID is able to eliminate the need to manually expand/contract the file system as more space becomes available or is removed. |
File and Operating System Agnostic
DroboElite and its underlying BeyondRAID technology currently support the Windows, Mac, VMware, and Linux¹ platforms, with file system support for NTFS, HFS+, EXT3, and VMFS. Since DroboElite is a block-level system, it easily adapts to almost any environment. |
Redundant Safety
Utilizing dual-disk redundancy, DroboElite’s BeyondRAID technology can ensure your data is safe even if up to two drives fail simultaneously — all without a moment of downtime. You can even switch between single- and dual-disk redundancy with a single click. You’ll feel safer knowing that if drives do fail, DroboElite automatically enters a state of self-healing in which it relays out your data across the remaining healthy drives and sectors. If a drive fails, BeyondRAID technology always returns the drive array back to the safest state possible. |
Proportional Rebuild Times
The time it takes DroboElite to rebuild data after a drive failure or removal is proportional to the amount of data stored in the pool — meaning the less capacity that is used, even on a 2TB disk, the shorter your rebuild times. This is superior to traditional RAID, which lacks proportional rebuild times, and is forced relay out every drive block even if it does not contain user data.
Since DroboElite is “Data Aware”, it tracks where data is on each drive, so it can differentiate between used and unused portions of the drive. This expedites rebuild times and reduces your risk of losing data to an additional disk drive failure. In short, your data is safer on a Drobo. |
Self-Healing
When DroboElite detects a "bad" hard drive, it proactively advises you with a series of warnings ranging from a blinking red LED on its front panel, to pop-up alerts in Drobo Dashboard and email alerts. What DroboElite does next is exceptional. It enters a self-healing mode where it repairs around the bad sector or drive, and works until it returns to the safest state possible. If DroboElite has sufficient time and free capacity (indicated by all lights returning to a solid green state), it can even withstand additional hard disk failures — that's the power of self-healing. |
Mixed Drive Capacity Utilization
Grow storage to meet your data capacity needs with minimal effort. To add capacity, simply insert a new hard disk or replace the smallest disk with a larger one, even when all four disk bays are full. Unlike traditional RAID systems, the BeyondRAID technology enables IT managers to efficiently mix and match disk brands, capacities, and speeds. This allows for continuous expansion as disk capacities grow. Now, expansion is automatic, instantaneous and access to data is always maintained. |
Thin Provisioning
Thin provisioning is a technical term that describes how the BeyondRAID technology communicates with your operating system. BeyondRAID communicates with your OS about how much drive space you have; up to 16TB per volume.¹ Specifying a larger amount of storage than is physically available allows you to grow into the volume without having to reformat or migrate your data in order to add capacity. |
Smart Volumes™
Create new volumes in seconds and manage up to 255 volumes over time with ease. The innovative and timesaving Smart Volume management technology integrated into DroboElite allows volumes to pull storage from the common pool of drives rather than a specific physical drive allocation, eliminating the need to manage capacity at the volume level. Smart Volumes are also data aware, allowing deleted data blocks to be returned to the common pool and ensuring that volumes remain as efficient as possible over time. |
Multi-host Connectivity
The DroboElite connects seamlessly to your existingTCP/IP network and utilizes industry-standard iSCSI protocol with optional CHAP authentication to provide simple, consolidated iSCSI storage for your servers. |
Self-Managing
DroboElite is iSCSI SAN storage that manages itself. There are no complex configuration screens, confounding choices, or other complications that prevent so many other storage devices from working out of the box. For companies that need simple, consolidated storage for multiple servers but don’t want to deal with the complexities of traditional SANs, DroboElite is the ideal solution.
Setup can be completed in a matter of minutes and routine tasks such as expanding capacity are as simple as adding a drive or replacing the smallest drive in the array. No need to back up data or re-create a RAID array. DroboElite will automatically recognize the additional capacity and make it immediately available to all Smart Volumes and applications. |
Drive Reordering
One long-standing requirement inherent in traditional RAID-based systems was that, if for some reason you needed to remove the drives, you’d have to replace them in the exact same order. When you remove your disks from DroboElite, you can put them back in any order you like. |
Accoustics
