EZQuest Steelvine Studio RAID eSATA Port
Multiplier PCI-X
Enclosure
Single eSATA Port, Quad Channel

|

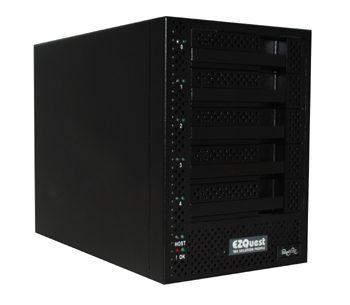

EZQuest Steelvine Studio RAID eSATA Port Multiplier PCI-X
SteelVine Studio RAID eSATA Drives provide high-speed performance with enhanced data protection with easy plug and play setup. They are simple, affordable solutions that replicate data in the background while you continue to work, avoiding expensive data recovery. SteelVine Studio RAID eSATA Drives can be configured as Striped for size and speed or mirrored for speed and security, with a hot spare for an extra layer of security.
|
 |
Features:
- Flexibility of hardware RAID 0, RAID 1, RAID 10, or JBOD
- Capable of creating 5 Real Time Layers
- High-speed eSATA II connection (3Gb/sec)
- High Write Speeds up to 187MB/sec
- Supports Non-Compressed Video Streams up to 50 SD, DVCPro, HDV, DV System, HD 1080i & 1080p
- Easy Plug and Play setup
- Dual Fans for Maximum Cooling
- High-quality Steel enclosure
- Internal Power Supply
- One year Warranty
|
|
|
| IDEAL FOR : * Non-Compressed Video Streams up to 50 SD, DVCPro, HDV, DV System, HD 1080i & 1080p |
|
| Product Specifications: |
| Drive Interface: |
5 bays x 3.5" SATA (Serial ATA) |
| Fan: |
Dual Ball-Bearing Low (dB) Decibel fan |
| Port Configuration: |
1x eSATA Port |
| Front LED's: |
For each drive, host connection, fault indication, and power indication |
| RAID Levels: |
0, 1, 0+1 Hot Spare, JBOD |
| Supported HD Video: |
HDTV 1080i and 1080p (non-compressed) |
| Max Data Transfer Rate: |
- eSATA - SATA-II (or 240MB/sec)
|
Macintosh System
Requirements: |
- OS 10.2.8 or later
- Built-in/add-on FireWire 400, USB 2.0, or eSATA
- PowerMac G4, G5, Intel 500MHz processor or higher
- Minimum 128MB RAM (512MB or greater recommended)
|
Windows System
Requirements: |
- Win2000, WinXP, or Windows Vista
- Built-in/add-on FireWire 400, USB 2.0, or eSATA
- Intel Pentium 500MHz processor or higher
- Minimum 128MB RAM (512MB or greater recommended).
|
| Case: |
Metal |
| Power Supply |
Universal, Auto-Switching built in power supply |
| External Case Dimensions: |
10.3 in X 5.8 in X 8 in / 14.4 x 20 x 25.7 cm |
| Total Shipping Weight: |
18.5 lbs (8.4 Kg) appx. populated total weight |
| Warranty: |
1 Year Manufacturer Warranty |
|
| |
| This EZQuest Steelvine Studio RAID Enclosure includes: |
- Steelvine Studio RAID eSATA 5 Bay enclosure
- eSATA II ( 2 meters) Cable
- 4 Port eSATA II 3Gb/s PCI-X Host Adapter
- power cable
|
 |
|
