Description: Ships: Price:
Edimax Wireless nLITE 3dBi High Gain USB Adapter. Increases wireless coverage 3x! Compatible with wireless 802.11n standard with data rate up to 150Mbps. 2 Year Edimax Warranty. (EW-7711UAn) Same Day $49.95
OWC Discounted Price: $39.99
Add to Your Basket:

Edimax

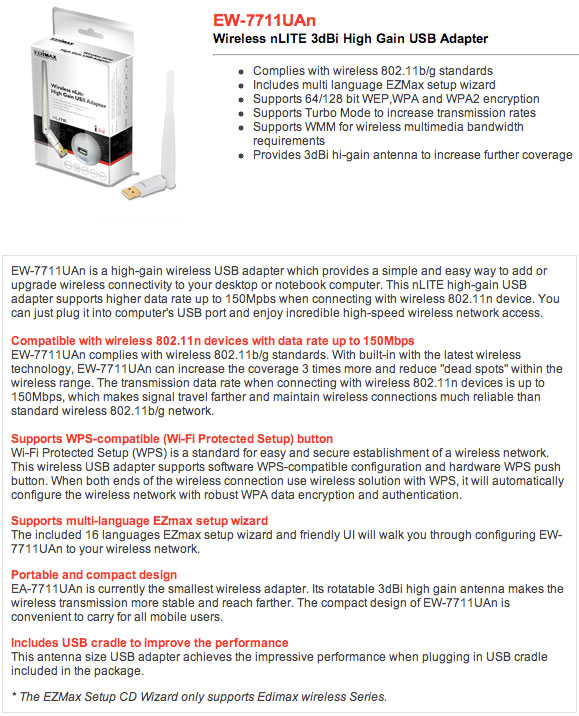

Edimax EW-7711UAn
Wireless nLITE 3dBi High Gain USB Adapter


EW-7711UAn is a high-gain wireless USB adapter which provides a simple and easy way to add or upgrade wireless connectivity to your desktop or notebook computer. This nLITE high-gain USB adapter supports higher data rate up to 150Mpbs when connecting with wireless 802.11n device. You can just plug it into computer's USB port and enjoy incredible high-speed wireless network access.

Compatible with wireless 802.11n devices with data rate up to 150Mbps
EW-7711UAn complies with wireless 802.11b/g standards. With built-in with the latest wireless technology, EW-7711UAn can increase the coverage 3 times more and reduce "dead spots" within the wireless range. The transmission data rate when connecting with wireless 802.11n devices is up to 150Mbps, which makes signal travel farther and maintain wireless connections much reliable than standard wireless 802.11b/g network.

Supports WPS-compatible (Wi-Fi Protected Setup) button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless USB adapter supports software WPS-compatible configuration and hardware WPS push button. When both ends of the wireless connection use wireless solution with WPS, it will automatically configure the wireless network with robust WPA data encryption and authentication.

Features
  • Complies with wireless 802.11b/g standards
  • Includes multi language EZMax setup wizard
  • Supports 64/128 bit WEP,WPA and WPA2 encryption
  • Supports Turbo Mode to increase transmission rates
  • Supports WMM for wireless multimedia bandwidth requirements
  • Provides 3dBi hi-gain antenna to increase further coverage

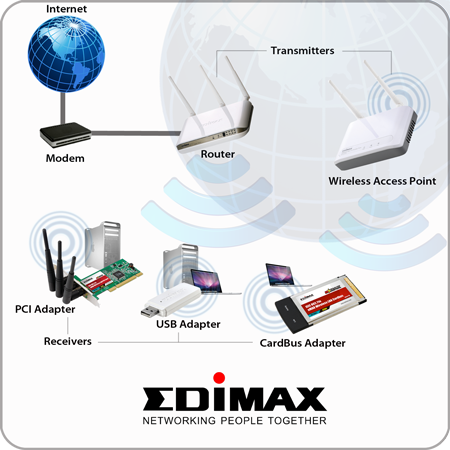

Wireless Setup Diagram

Need Additional Items for
Your Wireless Setup?

Routers (Send out your wireless signal):

BR-6574n Wireless IEEE802.11 b/g/n Gigabit Broadband Router
BR-6324nL Wireless IEEE802.11 b/g Broadband Router

Access Points (Receive your signal and send it further):

EW-7416APn Wireless 802.11n Access Point

Receivers (Add to computer to receive the wireless signal):

EW-7708Pn nMax Wireless 802.11n Draft 2.0 32-bit Cardbus
EW-7728In nMax Wireless 802.11n Draft 2.0 PCI Card
EW-7718Un nMax Wireless 802.11n Draft 2.0 USB Adapter
EW-7711UAn Wireless nLITE 3dBi High Gain USB Adapter
EW-7727In Wireless 802.11n PCI Adapter

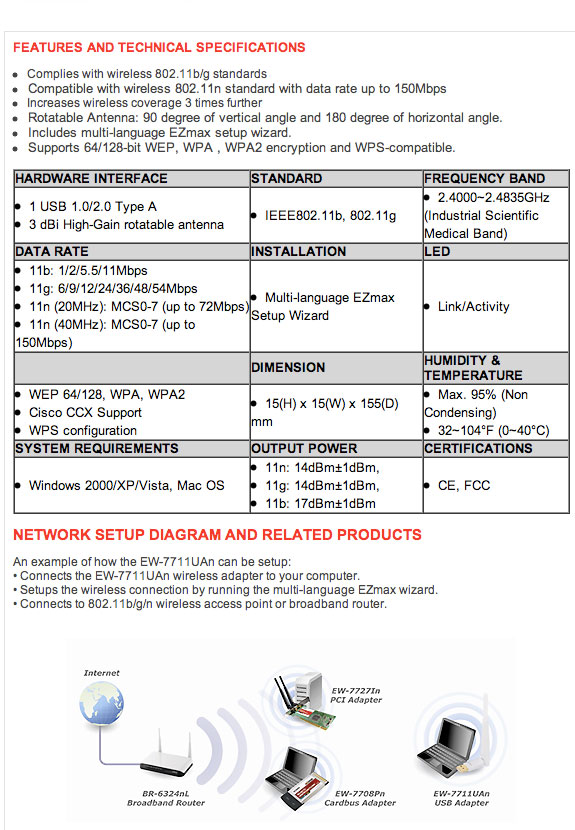

Product Specifications:
Hardware Interface:
  • 1 USB 1.0/2.0 Type A
  • 3 dBi High-Gain rotatable antenna
Data Rate:
  • 11b: 1/2/5.5/11Mbps
  • 11g: 6/9/12/24/36/48/54Mbps
  • 11n (20MHz): MCS0-7 (up to 72Mbps)
  • 11n (40MHz): MCS0-7 (up to 150Mbps)
Output Power:
  • 11n:14dBm ± 1dBm
  • 11g:14dBm ± 1dBm
  • 11b:17 ± 1dBm
Installation: Multi-language EZmax Setup Wizard
Standard:
  • IEEE 802.11b
  • IEEE 802.11g
  • Compatible with wireless 802.11n standard with data rate up to 150Mbps (nLite)
Security:
  • WEP 64/128, WPA, WPA2
  • Cisco CCX Support
  • WPS configuration
Frequency Band: 2.4000~2.4835GHz (Industrial Scientific Medical Band)
Humidity & Temperature:
  • Max. 95% (Non Condensing)
  • 10 ~40°C
System Requirements: Windows 2000/XP/Vista/7, Mac OS X
Dimensions: 15(H) x 15(W) x 155(D) mm
Certifications:
  • CE
  • FCC
Warranty: 2 Year Edimax Warranty
Downloads
Quick Start Guide Manual Driver
