Tracks

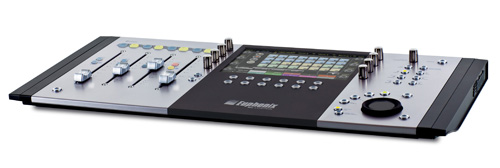

MC Control v2's touch-screen allows easy access to setup functions, soft keys and track information.
The new high-resolution 800 x 480 pixel LED-backlit touch-screen interface not only displays all of your project's top-level information like track names/numbers, metering (from mono to 5.1 surround data), fader/pan values, automation mode, etc., but also lets you quickly access all plug-in and EQ parameters, trigger macro commands, perform surround panning, and much more. The LED-backlit display provides you with a wide viewing angle, bright graphics and excellent color consistency.
There are three main screens:
1. Tracks
2. Soft Keys
3. Setup
The Tracks Page provides you with instant push button access to audio tracks in any DAW or video editor that supports the EuCon, HUI or Mackie Control protocols. Use these buttons to layout tracks onto the MC Control's faders. You can also set a track or multiple tracks into Record, Solo, Mute or just select them for editing operations directly on the screen without ever touching a mouse.
When an MC Mix unit is added to an MC Control this screen allows tracks to be laid out in any order on the faders with EuCon applications such as Nuendo and Logic Pro. |
Soft keys
These soft keys provide an easy way for you to quickly access app functions at the touch of a button. Program keystroke shortcuts for any application or direct commands with EuCon enabled applications such as Logic Pro and Nuendo.
These soft keys instantly change to match as soon as you switch to another application, and you can save your favorite soft keys for each application you use.
Assignable Soft keys (12)
12 programmable soft keys are available just below the touch-screen for fast access your most frequently used functions. These can easily be programmed to trigger simple keystroke commands as well as complex macros, and automatically change to match each application as it comes into focus.
Application Sets
MC Control intelligently recognizes the application that is in focus, or up front. Each application has an associated Application Set which loads as soon as the application is brought into focus. MC Control comes with several default sets for popular applications but it is easy to make your own, custom sets.
|
Control Room/Monitor Setup
Control Room Setup

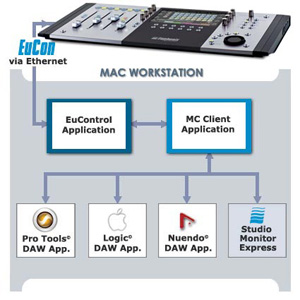

This screen lets the user choose the source of the control room volume knob, as well as providing talkback, dim, and mute functions. Typically this is used for controlling Studio Monitor Express, but will also control an application that supports EuCon monitor sections, like Apogee's Maestro.
Monitor Setup
This screen lets the user configure and choose the source of the monitor volume knob. The Control Room volume knob adjusts the monitor level when the Shift Key is held.
8 Touch-Sensitive Rotary Encoders
with On-Screen Displays
These eight rotary controllers offer direct control over everything from panning and gain, to editing your most powerful plug-ins and EQ, and depict instant positional feedback via mapped knob displays on the touch-screen (Euphonix Patent Pending).
The knobs can also be pressed to instantiate and navigate through parameters.
Touch sensitivity allows automation to be written intuitively.
|
MC Control v2 is loaded with power features to speed up and enhance your creativity with any media application.
The minimum system requirements are:
