• 8 touch-sensitive motorized faders
• 8 touch-sensitive rotary encoders
• 8 displays for surround metering, parameter and track names
• Link up to four MC Mix units and/or an MC Control for up to 36 faders

• Control multiple applications & workstations via Ethernet
• 250X faster and 8X the resolution of MIDI
• Supports HUI and Mackie Control protocols
• Slim-line design for easy studio integration and portability

EuCon is a high speed Ethernet control protocol developed by Euphonix that allows the MC Mix to connect to any Mac OS X application. EuCon carries control information for faders, knobs, displays and more between the MC Mix and whatever application is in focus on your computer.

EuCon is MIDI on steroids and is the next generation control protocol for working with music and video applications.

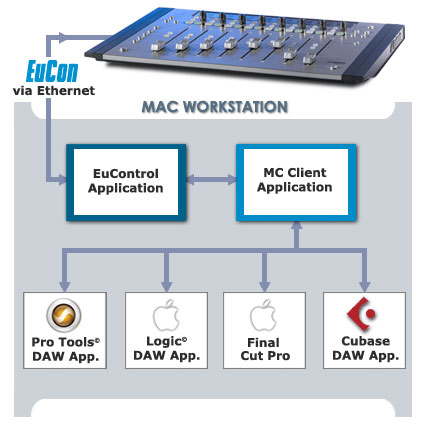

The EuControl application manages the MC Mix’s connection to the Mac, and the MC Client application connects the EuCon control data to all the applications. The MC Mix can connect to any application, but for fader and knob control, the application must be able to support either EuCon, HUI, or Mackie Control protocol.

DAWs and Video Edit applications which include EuCon, HUI or Mackie Control protocol include:

• Logic Pro
• Final Cut Pro
• Soundtrack Pro
• Cubase
• Nuendo
• Digital Performer
• Pro Tools
• Reason
• Live
• and more…

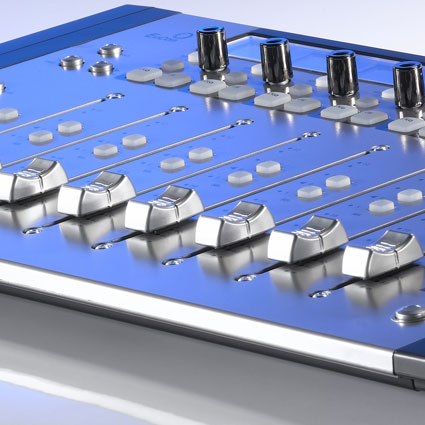

8 Motorized Touch-Sensitive Faders

MC Mix includes eight high-quality 100mm long throw faders for accurate and smooth mixing.

Touching a fader will automatically select and control the corresponding track within any application that supports EuCon, HUI or Mackie Control protocols as soon as the application is brought up front, or in focus. Fader meters and track designations are displayed by the corresponding OLED above each fader strip.

The Record/Automation keys to left of each fader offer direct arming of tracks for recording and/or selection of the track's automation mode, while the Select/Assign keys lock the selected track to a dedicated fader while allowing you to bank through tracks with the remaining faders - perfect for master fader and sub-mix applications.

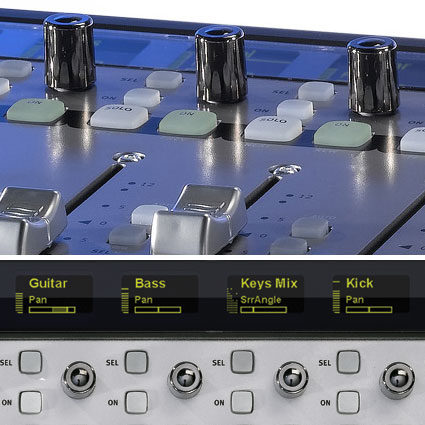

8 Touch-Sensitive Rotary Encoders with OLED Displays

These eight rotary controllers offer direct control over everything from panning and gain to editing your most powerful plug-ins and EQ and depict instant positional feedback via the OLED displays above each knob. The knobs can also be pressed to instantiate and navigate through parameters.

The Knob Set Selector Keys found along the left side of the MC Mix let you quickly assign the rotary encoders to control plug-ins, EQs, panning, signal routing and much more. You can choose to control the same parameter across all tracks (e.g. pans) or assign all knobs to one track for simultaneous editing of multiple parameters at once - perfect for plug-ins.

The high-resolution 128 x 64 pixel OLED displays provide track name/number, detailed metering (from mono to 5.1 surround data), parameter name/value currently being modified by its corresponding rotary encoder, current automation mode and more.
