GlobalWIN Travel Box Dorri Enclosure with
Hardware Data Encryption
High-Speed USB 2.0

|
Travel Box Dorri 3.5" IDE/ATA USB 2.0
Hardware Data Encryption Enclosure

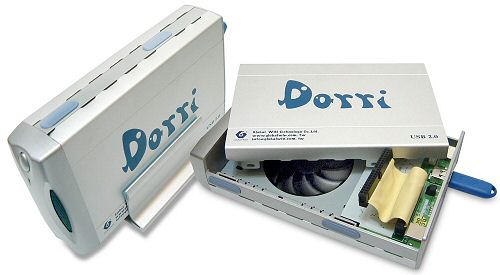

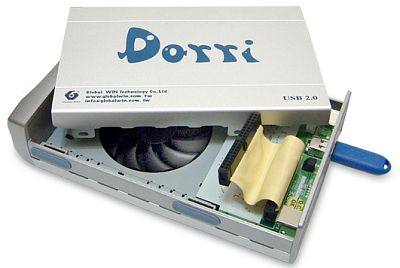

The Travel Box Dorri is a slim and compact housing that combines a portable aluminium hard disk case, hardware encryption, and easy connectivity using USB 2.0.
The built-in hardware encryption technology is the key feature of Global WIN’s Travel Box Dorri. The X-wall 40-bit encryption chip delivers sophisticated hardware encryption technology and, by supporting DES (Data Encryption Standard), the new Travel Box meets the US NIST (National Institute of Standards and Technology) standard.

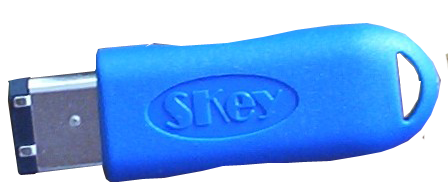

To utilize this encryption technology, the external HDD case is equipped with two USB Security-Keys (S-KEYs). Both S-KEYs contain the same security code. An S-KEY has to be connected to the USB port before using the Travel Box Dorri. Thereafter, all files will be written as encrypted data to the hard disk drive. After removing the S-KEY (from the Travel Box Dorri) the data is held securely and encrypted on the hard disk drive. To continue to work with the secure data, one of the S-KEYs has to be reconnected.
|

| Protect your data from prying eyes. |
| |
| Your data is protected even if the entire drive is stolen. |
With the correct S-Key plugged in, all the data can be accessed.
|
Without the correct S-Key plugged in, the hard drive looks like an unformatted drive.
|
| Delivers significant performance improvement over software encryption. |
| Encrypt/decrypt the entire ATA hard disk including boot sector, operating system, and all swap/spool files without performance loss. |
|
Features:
- DES (Data Encryption/ decryption Standard) meets US NIST (National Institute of Standards and Technology) standard.
- Hard Drive is as secure as an unformatted drive when not activated by the S-Key.
- Supports 10,000 RPM HD with no overheating problems. Designed with powerful heat dissipation features and a built-in super-silent 19dBA 80 mm fan.
- Screwless aluminum alloy case design, providing a trouble-free installation, more ductility and better heat dissipation.
- Supports Plug and Play use with both Macs and PCs (except with Win 98. Win 98 Driver CD is included)
- Supports IDE/ATA (PATA) type 3.5" hard drives up to 750GB capacity.
- USB 2.0 high data transfer rate up to 480Mbps, backwards compatible with USB 1.1
- Can be oriented vertically or horizontally.
- CE safety approved.
|
|
|
| Additional Views: |

|
 |
| "The Travel Box Dorri is delivered without memory and so is named after the friendly but forgetful character ‘Dory’ in Walt Disney’s film Finding Nemo"Andy Lin, Global WIN’s President and CEO. |
|
| Product Specifications: |
| Drive Interface: |
- 3.5" IDE/PATA (Parallel ATA)
- supports all brands/capacities of 3.5" IDE/ATA hard drive up to 500GBs and larger w/standard 40 pin IDE/ATA Connector.
- OWC NOTE: This drive enclosure requires an IDE/ATA hard drive mechanism.
Most computers produced since 2006 use Serial ATA (SATA) hard drives. Please make sure that the drive you wish to use with this enclosure is compatible. If you need an enclosure for a SATA hard drive, click here.
|
| Port Configuration: |
1x USB 2.0 Port
1x Security Key port |
| LED: |
Blue: Indication of power on, HD data in/out and S-key error |
| Max Data Transfer Rate: |
- USB 2.0 - 480Mbps (or 60MB/sec)
|
Macintosh System
Requirements: |
- OS 8.6 or later
- Built-in/add-on USB 2.0
|
Windows System
Requirements: |
- Win98SE / ME / Win2000 / XP
- Built-in/add-on USB 2.0
|
| Case: |
Anodized Aluminum |
| Cooling Fan: |
80mm x 80mm x 10mm, Sleeve Bearing, 1,500 RPM, 19dBA |
| Power Supply |
AC Input 100~240 Vac / 1.2A 50~60Hz
DC Output:12V /2A 5V / 2A |
| External Case Dimensions: |
8 in. (203mm) x 4.8 in. (122mm) x 1.8 in. (45.8mm) |
| Weight: |
1.14 lbs (0.52 Kg) |
| Warranty: |
1 Year Manufacturer Warranty |
| This Travel Box Dorri enclosure includes: |
- Travel Box Dorri 3.5" USB 2.0 Enclosure

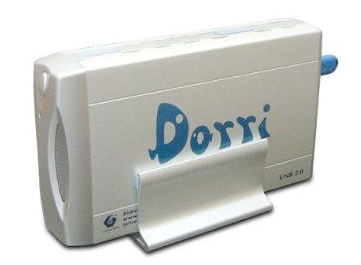

- Aluminum foot stand for vertical orientation
- 2x USB Security-Keys (S-KEYs)
- S-Key carry strap
- USB cable
- Four mounting screws
- Windows 98 driver CD
- External Power Supply
- Power Cable
- User Manual
|
 |
|
|
| |
| |
| |
|
| |
| |
|
