Description: Ships: Price:
3' HighPoint Infiniband (latch style connection) to 4x SATA Fan Out Cable. Fanout style cable allows connection of four SATA drives to one infiniband connector. 1 Year HighPoint Warranty. (IB-1M4S) Same Day $25.00
Add to Your Basket:


HighPoint Technologies Inc.

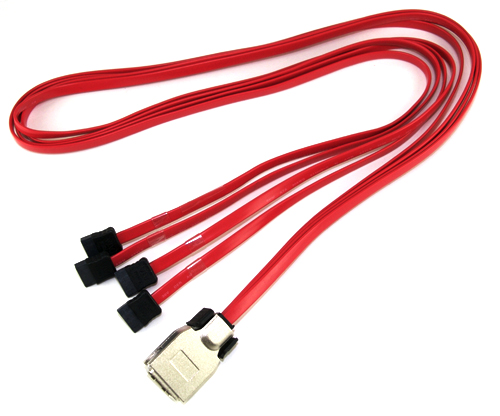

3' Infiniband to 4x SATA Fan Out Cable

Mac PC

The HighPoint Infiniband to 4x SATA fan out cable attaches to any controller card that has a latch style inifiniband connector.

  • Fanout style cable allows connection of four SATA drives to one infiniband connector.
  • With clip type connectors and external shielding cable, the infiniband (Multilane SATA) cable providse a data path free of RFI or EMI.
  • A perfect cable for a demanding high speed transfer bus.



Specifications
Manufacturer Part Number
  • IB-1M4S
Data Transfer Rates
  • SATA Revision 1.0: 1.5Gb/s (150MB/s)
  • SATA Revision 2.0: 3.0Gb/s (300MB/s)
Connections

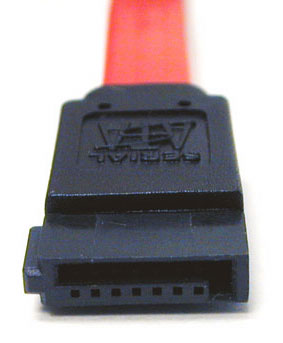

  • Four (4) Internal 7 pin SATA connections

These ends of the cable

fits these type ports.
  • One (1) Infiniband 4X Low Profile Latch Style SFF-8470 connection

This end of the cable

fits this type port.
Conductor
  • Copper
Compatibility
Warranty
Physical
Length 3.28 ft (1.0 m)
Weight 3.2 oz. (90g)
