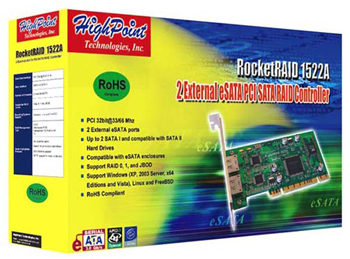

RocketRAID 1522A Host Adapter
Initially SATA was designed as an internal or inside-the-box interface technology, bringing improved performance and new features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, bringing the same performance and features to external storage needs instead of relying on USB or 1394 interfaces.
RocketRAID 1522A Highlights
- PCI 32bit@33/66MHz
- 2 External eSATA ports at 1.5Gb/s
- Up to 2 SATA(compatilble with SATA II) Hard Drives
- Support RAID 0, 1, and JBOD
- Support Mac OS X 10.5.x
Controller Specifications
- PCI 32bit@33/66 Mhz
- 2 External eSATA ports at 1.5Gb/s
- Up to 2 SATA(compatilble with SATA II) Hard Drives
- Compatible to eSATA enclosures
- Support RAID 0, 1, and JBOD
- BIOS Booting (INT13) to RAID array
(PC Only)
- Hot swap and hot spare
- Online array roaming
- Web browser-base software (Web GUI)
- Command Line Interface (CLI)
- SMTP email notification for events and error reporting
- Remote array management through (Web GUI, RAID GUI and CLI)
- Support Mac OS X 10.5.x
- RoHS Compliant
RAID Management Tools
- BIOS
- Web based RAID
- Management Software and CLI
Operating Systems
- Mac OS X 10.5.x
- Windows (98/ME, NT, 2000, XP, 2003, x64)
- Linux(opensource)
- FreeBSD(opensource)
