IOGEAR MiniView USB KVM Kit w/Cabling - Control 4 Computers with one VGA Display, USB Keyboard, and USB Mouse. Hot Swappable, Keyboard/Mouse Presence Emulation for non-controlled systems, & More. (IOGGCS124U)
|
Same Day
|
$217.95 |
 |
|
|
|
|
Description:
MiniView™ II USB KVM - 4 Port MiniView™ II USB KVM Switch
IOGEAR introduces the first ever "True" USB KVM with USB enabled hot keys and On Screen Display (OSD). IOGEAR's 4 Port MiniView™ II USB KVM (GCS124U) allows you to control up to 4 computers with 1 USB keyboard, monitor, and USB mouse. With IOGEAR's USB Sniffing Technology you can use your favorite USB keyboard to control all features of the USB KVM. The MiniView™ II USB features keyboard and mouse emulation so your computer never loses touch with its peripherals. IOGEAR's GCS124U is daisy chainable which will allow you to control up to 64 computers from one USB keyboard, monitor, and mouse. The OSD allows you to name each computer and set security access for each. Since IOGEAR is a total solutions provider, we have included four sets of premium bonded KVM cables.
Cables Included! |
|
Function:
|
|
|
|
Features/Benefits:
• Includes four complete sets of premium 2-in-1 bonded KVM cables
• Features the first ever USB Sniffing technology
• Hot swappable - Plug-n-Play
• Keyboard and mouse wakeup function
• USB Hot Key selection
• On Screen Display (OSD) with security control
• Keyboard and mouse emulation
• Daisy chainable (control up to 64 computers)
• USB 1.1 compliant
• Directly select computers from the switch
• Rack mountable (requires optional kit)
• 3 year limited warranty
|
|
|
|
|
|
Built In OSD* (On Screen Display) allows PCs to be named and accessed via a menu driven interface
|

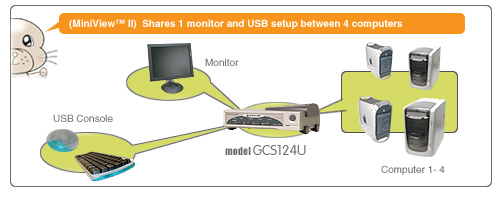

Control 4 computers using 1 single USB mouse and keyboard
|
4 CPU ports connect to your PC, Mac or any other USB-compliant computer
|
|
Requirements:
- PCs or Macs with at least one available USB port
- A USB compliant operating system
- A HDB15 video display adapter and monitor
- USB mouse and keyboard
OWC Note: This KVM does not function properly when using the aluminum USB 2.0 keyboards from Apple. If you have one of these Apple keyboards, you will need this item, instead. |
|
|
|
Package Content:
• 1 MiniView™ II USB KVM switch
• 1 user manual
• 1 warranty registration card
• 4 bonded USB KVM cables
• 1 power adapter
• 1 quick start guide
|
|
Specifications:
|
|
Function
|
GCS124U
|
| Case |
| Case Qty. |
5
|
| Height |
9.5
|
| Length |
21.5
|
| Width |
14
|
|
Computer Connections
|
| Daisy Chain or Cascading |
64
|
| Direct |
4
|
|
Console Connectors
|
| Keyboard |
1 x USB Type A
|
| Monitor |
1 x HDB-15 Female (Std. VGA/SVGA)
|
| Mouse |
1 x USB Type A
|
| CPU Connectors |
|
| Keyboard & Mouse |
4 x USB Type B
|
| Monitor |
4 x HDB-15 Male (Std. VGA/SVGA)
|
| Dimensions |
| Height |
2
|
| Length |
6
|
| Width |
8.8
|
| Emulation |
|
| Keyboard |
USB Plug-n-Play
|
| Mouse |
USB Plug-n-Play
|
| Housing |
|
| Case |
Plastic/Metal
|
| LEDs |
|
| On Line |
4
|
| Selected |
4
|
| Package Dimensions |
|
| Height |
4
|
| Length |
13
|
| Width |
8.5
|
| Port Selection |
Push Button, Hot Keys, or OSD
|
| Power |
|
| Amps |
600mA
|
| Voltage |
DC 9V
|
| Power Consumption |
DC 9V 600mA
|
|
Scan Interval
|
5 sec.
|
| Video Resolution |
1920 x 1440 (Max.); DDC2B
|
| Weight |
| Case Wt. |
33
|
| Package Wt. |
6.2 Lbs.
|
|
|
|
