Description:

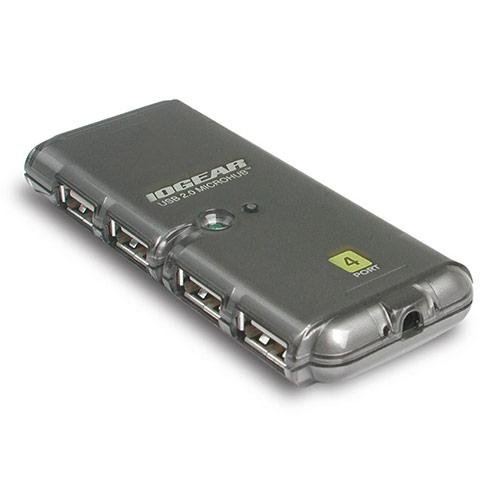

MicroHub™ - 4 Port Hi-Speed USB 2.0 Hub
"World's Thinnest USB 2.0 Hub"
IOGEAR's 4-port USB 2.0 hub provides 4 Hi-Speed USB 2.0 ports for your high-speed connectivity needs. This device is USB 2.0 certified and provides a data transfer rate of up to 480 Mbps. The GUH274 is an updated, portable version of IOGEAR's first USB 2.0 hub, model GUH204; this updated version features a smaller form factor and new design. It supports Windows® 98SE, 2000, ME, XP, and Mac OS X or later.
The MicroHub™ 2.0 also supports USB 1.1 devices since it is backward compatible with USB 1.1 specifications. It is very easy to use, Plug-n-Play, hot swappable and portable. It is backed by IOGEAR's 3 Year Limited Warranty. |
|
Function:
|
|
|
|
Features/Benefits:
• 4 USB 2.0 ports for easy expansion
• Supports a data transfer rate of up to 480 Mbps
• 40 Times faster than USB 1.1 products
• Plug-n-Play, hot swappable
• Backward compatible with USB 1.1 specifications
• Supports Windows 98, 98SE, 2000, ME, XP, and Mac OS X or later version
• A - B cable tucks away when not in use
• 3 Year Limited Warranty
|
|
|
|
|
|
Cable tucks away into its own compartment when not in use
|
Plug-n-Play, hot swappable with data transfer rate up to 480 Mbps
|
Informative LEDs allow for quick status monitoring
|
|
Requirements:
• For PC Users
• Windows®98SE, 2000, ME, XP
• Available USB 2.0 port
• For MAC Users
• Mac 8.6 or greater. Requires OS X for USB 2.0 support
• Available USB 2.0 port |
|
|
|
Package Content:
• GUH274 - Hi-Speed USB 2.0 Hub
• Manual
• Power Adapter
• Warranty Registration Card
|
|
Specifications:
|
|
Function
|
GUF274
|
| Cable Connections |
| Input |
Hi-Speed USB Type A (female)
|
| Cable Length |
2.0 in (5.0 cm.)
|
| Case |
| Case Qty. |
24
|
| Height |
10.5 in (26.6 cm.)
|
| Length |
15.25 in. (38.7 cm.)
|
| Width |
13.0 in. (33.0 cm.)
|
| Dimensions |
| Depth |
0.2 in. (0.5 cm.)
|
| Height |
3.4 in. (8.6 cm.)
|
| Width |
1.5 in. (3.8 cm.)
|
| Housing |
| Case |
Plastic
|
| Humidity |
20-80% RH, (Non Condensing)
|
| LEDs |
| Power On |
1
|
| Operating System Support |
Windows®, 98SE, 2000, ME, XP, MAC OS 8.6 or greater
|
| Operating Temperature |
20 to 50 degrees (Celsius)
|
| Package Dimensions |
|
| Depth |
1.8 in. (4.5 cm.)
|
| Height |
7.0 in. (17.7 cm.)
|
| Width |
4.0 in. (10.1 cm.)
|
| Ports |
4 downstream
|
| Power Connections |
DC adapter (included)
|
| Power Consumption |
5.0V
|
| Storage Temperature |
0 to 70 degrees (Celsius)
|
| Transfer Rate |
480 Mbps
|
| USB Specification |
USB 1.1 and 2.0 compliant
|
| Weight |
| Case Wt. |
14.5 lbs. (6.5 kg.)
|
| Package Wt. |
0.5 lbs. (0.22 g.)
|
| Unit Wt. |
0.1 lbs. (0.04 g.)
|
|
|
