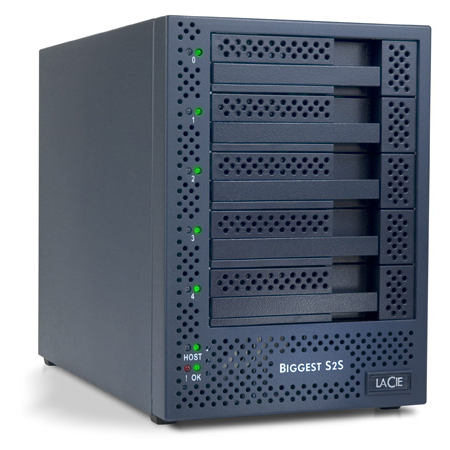

LaCie Biggest S2S with PCI-X Card
SATA II - 5-Disk RAID System Tower
5TB

• The first SATA II RAID solution for Hi-def video
• New generation SATA II 3Gb/s technology
• 5 bays with hot-swappable drives
• Supports RAID levels 0, 1, 0+1, JBOD

An extraordinary combination of high capacity - up to 5TB, RAID security, and fast speed, this 5-drive tower provides enhanced data protection, massive storage space, and a convenient plug & play user experience. Supporting RAID levels 0**, 1, 0+1, and JBOD, this innovative solution at a fraction of the cost for traditional RAID systems is powered by the newest industry-leading Serial ATA (SATA II) 3Gb/s technology. Simply plug it into a SATA II 3Gb/s host and enjoy a rapid sustained transfer rate of up to 187MB/s. This all-in-one storage solution comes bundled with the LaCie SATA II 3Gb/s PCI-X Card 4E. Designed for business professionals who require high-volume security and speed, this mega-storage solution is ideal for audio/video and creative professionals.

Specifications

Capacity : 5 TB Host Interface : SATA II 3Gb/s Disk Interface : 5 bays x SATA II 3.5" Transfer rate : Mac: up to 187MB/s 64-bit PC: up to 160MB/s 32-bit PC: up to 99MB/s** Supported RAID levels : 0, 1, 0+1, JBOD Supported OS : Windows 2000 Windows XP*** Windows 2003 Windows Vista Mac OS X Supported HD Video : HDTV 1080i and 1080p (non-compressed) Power Consumption : 150 W maximum (unit with 5 drives) Power : 110-240VAC, 50/60 Hz LEDs : For each drive, host connection, fault indication, and power indication Operating Temp. : 0-35 °C / 32-95 °F Operating Humidity : 20-80% non-condensing Storage Humidity : 10-90% non-condensing Software : Management Console (GUI) Dimensions (WxHxD) : 5.8 x 8 x 10.3 in / 14.4 x 20 x 25.7 cm Weight : 18.5 lbs /8.4 kg (with drives installed) Comments : *Actual available capacity varies depending upon operating environment (typically 5-10% less). **RAID 0 can only be configured using four drives. ***Windows XP will not recognize single volumes greater than 2TB. ****Sustained transfer rates can vary for a RAID product in function of several elements like: the host interface, the selected RAID configuration (storage policy), etc. Transfer rates of up to 187MB/s can be achieved in Fast configuration (RAID 0) on current Macs. Rates as high as 160MB/s can be achieved in Fast configuration on PC. Box Content : LaCie Biggest S2S RAID system tower with 5 drive bays including hard disks Accessories Box Contents : Power cable, SATA II 3Gb/s external cable (2 meters), LaCie Biggest S2S Utilities CD-ROM with User’s Manual, LaCie Biggest S2S Quick Install Guide PCI-X Card Box Contents : LaCie SATA II 3Gb/s PCI-X 4E Card; CD-ROM with User’s Manual; Quick Install Guide Warranty : 3 Year Limited Warranty Specifications and appearance are given as guidelines and may change without notice.
