Description:	Ships:	Price:
M-Audio Octane 8-channel Preamp and A/D Converter with ADAT Lightpipe (MID99004076200)	Same Day	$549.00

Add to Your Basket:



Octane 8 channel Preamp and A/D Converter with ADAT Lightpipe:

The 8-channel Octane preamp is specifically designed to enhance the front end of any multitrack digital recording system. Its award-winning M-Audio preamp technology delivers pristine digital signals to any Lightpipe-compatible devices such as hard disk recorders and digital mixers. Octane is ideal for miking drum kits or bands—and the two mic/instrument channels are great for guitar, bass and other instruments. M-S matrix encoding lets you employ stereo miking techniques previously available only in pro studios. Octane even has analog preamp (direct) outs for each channel, making it the perfect upgrade for any digital audio interface or mixer. Word clock also means that you can sync multiple Octanes for as many channels as you need as your studio grows.

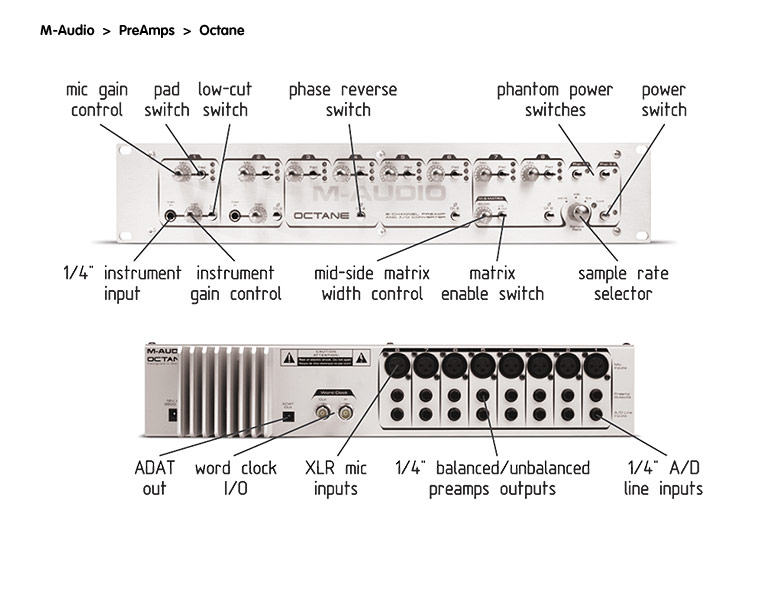

Features:

award-winning M-Audio preamp technology
8 channels, each including:
- microphone input (XLR)
- line input (1/4” TRS)*
- preamp out (1/4” TRS)*
- 3-segment LEDs
- 20dB pad
- phantom power with indicator (groups 1-4, 5-8)
2 channels are mic/instr preamps (front-panel 1/4” TS)
ADAT Lightpipe output (TOSlink)
24-bit audio resolution throughout
selectable sample rate (44.1k and 48k) and external sync
word clock I/O (75-ohm BNC) for synchronization to other digital devices
line inputs are half-normalled as insert ins or standalone A/D
M-S matrix encoding on channels 7 & 8 with width control
phase reverse switches on even channels
low-cut filter on channel 1 (-12dB/oct @ 80Hz)

* balanced/unbalanced operation

	SPECIFICATIONS:
	MICROPHONE INPUTS:
	variable gain:	50 dB
	frequency response:	20-20kHz, +/- 0.11dB; mid gain
	signal-to-noise ratio:	120dB, A-weighted; mid gain
	dynamic range:	120dB, A-weighted; mid gain
	THD+N:	0.00041% -107dB, 1dB below clipping, 22Hz-22kHz; mid gain
	EIA noise rating	-129dBu @ max gain, 600 ohms, 22Hz-22 kHz (unweighted)
	input impedance:	2.85k ohms, no pad; 3.600k ohms, pad engaged

	INSTRUMENT INPUTS:
	input impedance:	3M ohms
	variable gain:	44 dB
	frequency response:	20Hz-20kHz, +/- 0.03dB; mid gain
	signal-to-noise ratio:	133dB, A-weighted; mid gain
	dynamic range:	133dB, A-weighted; mid gain
	THD+N:	0.0018% -95dB, 1 dB below clipping, 22 Hz-22kHz; mid gain
	system throughput gain:	6 dB to 50dB (balanced out); 0dB to 44dB (unbalanced out)

	LINE INPUTS:
	line input impedance:	20K Ohms (balanced), 13.3k ohms (unbalanced)
	frequency response:	20Hz-20kHz, +/- 0.04dB
	signal-to-noise ratio:	110dB, A-weighted
	dynamic range:	110dB, A-weighted
	THD+N	0.00067% -103dB, -1dBFS, 22Hz-22kHz

	ADDITIONAL FEATURES
	maximum rated analog output (digital clip):	+26 dBu (balanced), +20 dBu (unbalanced)
	output impedance:	600 ohms (balanced)
	M/S matrix:	L=M+S/3 and R=M–S/3
	digital clip level at line inputs	+20dBu
	channel quasi-peak level indicators	light 3dB, 10dB and 20dB below digital clip
	word clock range (switchable):	44.1kHz, 48kHz and external
	word clock slave sync range:	33kHz to 59kHz
	word clock impedence:	75 ohms
	power:	18 VAC (16.5 VAC minimum) @ 3.5A inline power adapter
