Internal for Windows® 98SE, Me, 2000, XP & Vista

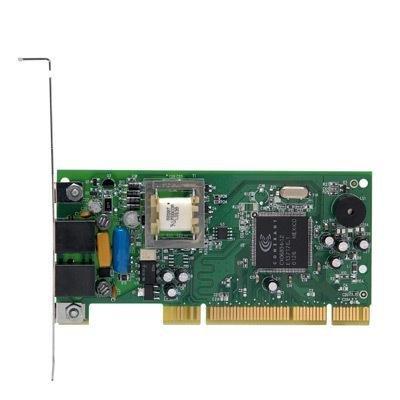

The Zoom/Modem V.92 PCI is a Plug-and-Play internal modem which is easily installed into a PCI slot of a Windows computer. Performance of the Model 3025 is enhanced by an on-board Digital Signal Processor (DSP) which performs complex modulating/ demodulating functions
The Model 3025 is fully compatible with all features of the latest V.92/V.44 interna- tional standards and will also communicate at V.90 and slower speeds.
- Faster negotiation: most modems call the same Internet service number every time. V.92 modems save the connection profile to significantly reduce connection time.
- Improved data compression: the old V.42bis compression standard was set over ten years ago, before the World Wide Web! The new V.44 standard is designed for the kinds of content seen on the Web today and can noticeably improve your down- load speeds.
- Faster upload speeds: V.92 can send e-mail and attachments up to 40 percent faster than V.90 modems.
- Modem-on-Hold: allows you to answer an incoming call without losing an Internet connection on the same line.*
|
 |
|
| Package Includes |
- Zoom V.92 PCI internal modem
- RJ-11 phone cord
- User guide
- Software on CD ROM
|
 |
|
| Specifications |
|
| Form Factor |
|
| Data Speeds |
- 56,000 bps receive/48,000 bps send with auto-negotiation of V.92 and V.90
- 300 to 33,600 bps full-duplex supporting all international and Bell standards.
|
| Fax Speeds |
- 300 to 14,400 bps, Group 3, Class 1
|
| Standards Supported |
- Data: V.92, V.90, V.34, V.32bis, V.32, V.22bis, V.22A/B, V.22, V.23, V.21, Bell 103/212A
- Compression: V.44, V.42bis, MNP5
- Error Control: V.42, MNP2-4
- Hayes™ AT and extended AT command set compatible
- V.80 for H.324 (videophone) compatibility
|
| Dialing |
- Supports programmable duration DTMF (touchtone)
- Call progress tone detection (dialtones, busy, ring, etc.)
|
| Video Support |
- V.80 (required for point-to-point H.324 video over standard phone lines)
|
| Additional Features |
- On-board DSP
- Downloadable firmware for easy upgrades
- Voice mail with multiple private mailboxes, password protection, remote retrieval and easy message review (requires soundcard)
- Plug and Play for automatic configuration with Windows 95, 98, Me, 2000, XP
- 2 telephone jacks (RJ-11)
|
| System Requirements PC |
- Pentium 133 MHz or faster processor
- Windows Vista, 98SE, Me, 2000, XP
- 16 MB RAM
- Voice Mail requires a soundcard for message playback (microphone required to record a personalized greeting message)
- Hard drive
|
| Warranty |
1 Year ZOOM Warranty |
| Physical |
|
| Dimensions |
- With bracket: 4.8" x 5.3" x .5" (12.2cm x 13.5cm x 1.27cm)
- Without bracket: 2.3" x 4.8" x .43" (5.9cm x 12.2cm x 1.1cm)
|
| Regulatory Approvals |
- FCC Parts 15B and 68
- UL, C-UL
- Industry Canada
- CE Approved
- RoHS Lead-free compliant
|
* Compatible call waiting service is required for Modem-on-Hold and may not be available in all areas or countries. Check with your ISP or online service for the implementation schedule for V.92 and V.44. |
|
