MXL 604
Condenser microphone

• 10 db pad w/switch
• Selectable roll-off filter and 10 db pad

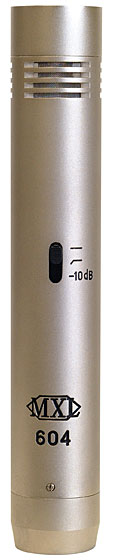

The MXL 604 is the latest in quality instrument microphones. Using transformer-less FET circuitry and a 20mm gold diaphragm capsule design, The 604 delivers the dynamic range required in the most demanding instrument miking applications. It features; -10dB switchable attenuation; selectable low-frequency roll-off; and an interchangeable omni-directional capsule making the the 604 perfect for acoustic guitar, ambient and overhead drum miking. The 604 exhibits low noise characteristics with a wide dynamic range.

Specifications:

• Type: Condenser pressure gradient mic with large 20 mm diaphragm
• Frequency Range: 30Hz-20kHz
• Polar Pattern: Cardioid
• Sensitivity: 15mV/Pa
• Impedance: 150W
• S/N Ratio: 77dB (Ref. 1Pa A-weighted)
• Equivalent Noise Level: 17dB (A weighted IEC 268-4)
• Max SPL for 0.5% THD: 137dB
• Power Requirements: Phantom Power 48V ±4V
• Size: 22mm × 133mm
• Weight: 0.3lb
• Metal Finish: Silver

Frequency Response & Polar Pattern

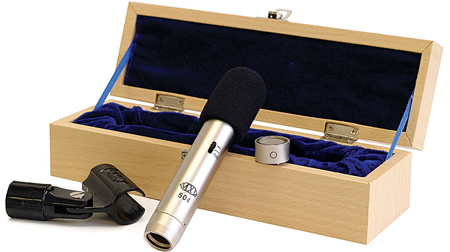

Package Includes

• MXL 604 Condenser microphone
• Deluxe wooden storage case
• mounting clip and foam windscreen
• 20mm gold cardiod and omni-directional capsules.
