| Transducer Type |
Tube condenser mic (Mullard 12AT7) |
|

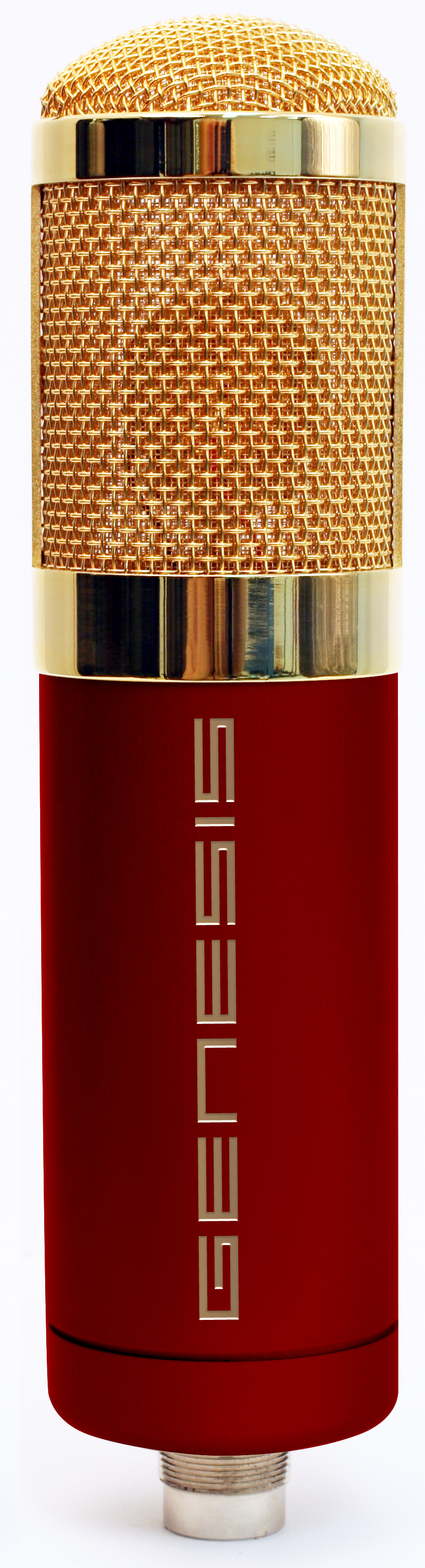

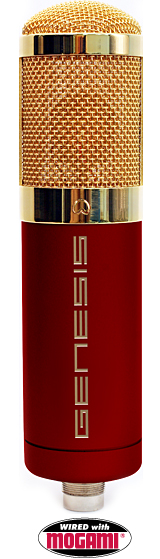

The Genesis is a masterfully engineered tube microphone with features and performance levels found in mics priced thousands of dollars more. From intimate vocal recordings to fast-attacking rap, the Genesis cuts beautifully through the mix with spectacular detail. Recording professionals and musicians are praising the Genesis for its clean highs, warm mids, and tight bottom-end, features attributed in part to the genuine Mullard 12AT7 tube.
|
| Polar pattern |
Cardioid |
| Frequency response |
20 Hz - 20 kHz |
| Sensitivity |
27mV/Pa (+/- 10mV depending on capsule) at 1kHz (1 Pa = 94 dB SPL) |
| Output Impedance |
200Ω |
| High Pass Filter |
6 dB/octave @ 150Hz |
| Maximum SPL |
130 dB/140 dB (0dB, -10 dB pad) |
| Maximum Output |
+12 dBV = 3.1 Vrms (2.5kΩ, 1% THD) |
| Noise Level A-Weighted |
18 dB (A-weighted IEC 268-4) |
| Dynamic Range |
130 dB (@ 2.5kΩ) |
| Power Requirement |
+48V DC Phantom Power (IEC 268-15) (+35V min.) |
| Weight |
1.55 lbs/703g |
| Size |
59mm x 240mm/2.32 in. x 9.45 in. |
| Current Draw |
1.8mA (typical AI+48V) |
