Description: Ships: Price:

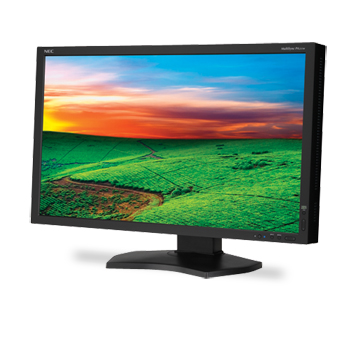

NEC MultiSync 23" Professional Graphics Desktop Monitor. DisplayPort, DVI-D & VGA inputs. 1920x1080 res. 8ms response, 1000:1 Contrast Ratio. Brand New with 4yr NEC Warranty. (PA231W-BK) 24-48 hrs $619.00
OWC Discounted Price: $617.99
Add to Your Basket:


NEC
23" Professional Graphics Desktop Monitor
One DisplayPort | One VGA | Two DVI-D | 1920x1080 Resolution

Mac PC

Enjoy the best of both worlds with the 23" NEC MultiSync PA231W, an eco-conscious widescreen LCD display that touts unparalleled color performance. Designed for graphics and photography applications, this ENERGY STAR-qualified model features a 14-bit 3D LUT, picture in picture, USB hub with DisplaySync Pro™ and many other cutting-edge technologies that bring accurate, consistent and repeatable color performance to your desktop.

  • 72% coverage of NTSC color space
  • Superior screen performance (1000:1 contrast ratio, 1920 x 1080 native resolution, 270 cd/m2 brightness)
  • Supports internal programmable 14-bit 3D lookup tables (LUTs) for calibration
  • AmbiBrightTM ambient light sensor automatically adjusts the display's brightness based on lighting conditions
  • XtraView+TM technology provides for the widest viewing angles available with minimal off-angle color shift
  • DisplaySync ProTM controls two computers with only one keyboard and mouse
  • Color Vision Emulation for type P/D/T supporting Color Universal Design
MultiProfiler
This software provides an intuitive interface to control the display's sophisticated technologies, such as loading any ICC profile directly into the display for optimal color space matching.
XtraView+™
Delivers wide viewing angles of up to 178º horizontally and vertically (up to 89º up, down, left and right) with less color shift and without any glare, reflection or distortion.
3D LUT
Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion (with 10-bit DisplayPort input) for accurate color, smooth images and hardware calibration.

Ambix4™
Allows up to four inputs (DisplayPort, VGA and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
AmbiBright™
Automatically adjusts the backlight depending on the brightness of ambient lighting conditions. It also tells the monitor to enter power saving mode whenever the ambient lighting falls below a predetermined value (like when lights are shut off at the end of the day), which can significantly reduce energy consumption.

Rapid Response™
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
CableComp™
Equalizes the video signal to eliminate color halos on long cable runs.

Digital Uniformity Compensation
Reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using new signal processing circuitry.

Package Includes
  • Monitor with stand
  • Power cord
  • 15-pin D-sub cable
  • DVI cable
  • USB cable
  • Mounting Screws
  • DisplayPort cable

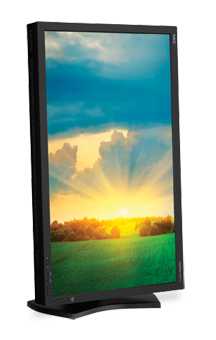

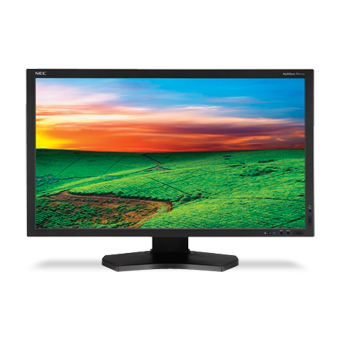

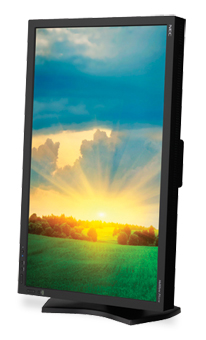

Gallery
Specifications

Manufacturer Part Number

  • PA231W-BK
Type
  • LCD
Display Area
  • 23.0" diagonal
Housing Color
  • Black
Maximum Resolution
  • 1920 x 1080
Aspect Ratio
  • 16:9
Pixel Pitch
  • 0.27mm
Pixels Per Inch
  • 96
Brightness
  • 270 cd/m²
Contrast Ratio
  • 1,000:1
Response Time
  • 8ms (2ms G to G)
Viewing Angle (H/V)
  • 178° /178°
Color Gamut (Coverage / Size)
  • Adobe RGB: 75.4% / 75.8%
  • NTSC: 71.6% / 72.4%
  • sRGB: 96.6% / 102.2%
Input
  • 1x DisplayPort
  • 2x DVI-D Dual Link
  • 1x VGA
Audio Output
  • None
Speaker Type
  • None
Vesa Mounting
  • Yes, 100mm x 100mm
Tilt
  • Yes
Swivel
  • Yes
Pivot
  • Yes
Height Adjustable
  • Yes, 0 ~ 5.9"
Base Detachable
  • Yes
Agency Compliances / Certifications
  • ENERGY STAR 5.0
  • TCO 5.0
  • RoHS
  • CE
  • FCC
Warranty
Physical
Power Consumption
  • 46W
Standby Power
  • 0.2W

Operating Temperature

  • 41-95°F / 5-35°C

Operating Humidity

  • 30-80%

Operating Altitude

  • 6,562 ft. / 2,000m

Storage Temperature

  • 14-140° F / -10-60° C

Storage Humidity

  • 10-85%

Storage Altitude

  • 40,000 ft. / 12,192m
Dimensions (With Stand)
  • 21.4" x 13.3" x 9.0" (543.6 x 337.8 x 228.6 mm)
Dimensions (Without Stand)
  • 21.4" x 12.7" x 2.9" (543.6 x 322.6 x 73.7 mm)
Weight (With Stand)
  • 22.5 lbs. (10.2 kg)
Weight (Without Stand)
  • 15.4 lbs. (7.0 kg)
