Description: Ships: Price:
NEC MultiSync 30" Widescreen Professional Graphics Desktop Monitor. Includes SpectraViewII Color Calibration Kit. Two DisplayPort & two DVI-D dual link inputs. 2560x1600 resolution, 1000:1 Contrast Ratio. Brand New with 4yr NEC Warranty. (PA301W-BK-SV) 24-48 hrs $2,549.00
OWC Discounted Price: $2,497.99
Rating: 5.0 based on 1 reviews.
Add to Your Basket:

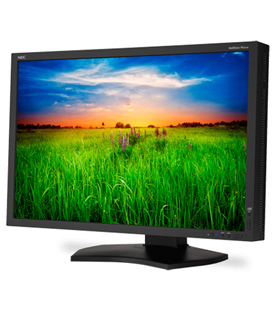

NEC 30" Widescreen

Professional Graphics Desktop Monitor

Two DisplayPort | Two DVI-D | 2560x1600 Resolution
The 30" NEC MultiSync PA301W is the ultimate LCD display for professional graphics and photography applications and can tackle the most demanding color-critical projects. This 10-bit widescreen LCD, which features four digital inputs, a 2560x1600 resolution with a wide color gamut, a 14-bit 3D LUT, high brightness and an integrated USB hub with DisplaySync Pro, sets the standard for accurate, consistent and repeatable color performance.
Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion (with 10-bit DisplayPort input) for accurate color, smooth images and hardware calibration.
This software provides an intuitive interface to control the display's sophisticated technologies, such as loading any ICC profile directly into the display for optimal color space matching.
Delivers wide viewing angles of up to 178° horizontally and vertically (up to 89° up, down, left and right) without any glare, reflection or distortion.
Allows up to four inputs (DisplayPort, VGA and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
Automatically adjusts the backlight depending on the brightness of ambient lighting conditions. It also tells the monitor to enter power saving mode whenever the ambient lighting falls below a predetermined value (like when lights are shut off at the end of the day), which can significantly reduce energy consumption.
Rapid Response
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
Digital Uniformity Compensation
Reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using new signal processing circuitry.
Equalizes the video signal to eliminate color halos on long cable runs.

Product Specifications

Manufacturer Part Number

  • PA301W-BK-SV


  • LCD

Display Area

  • 29.8" diagonal

Housing Color

  • Black

Maximum Resolution

  • 12560 x 1600

Aspect Ratio

  • 16:10

Pixel Pitch

  • 0.25mm

Pixels Per Inch

  • 101


  • 350 cd/m²

Contrast Ratio

  • 1,000:1

Response Time

  • 7ms (2ms G to G)

Viewing Angle (H/V)

  • 178° /178°

Color Gamut

  • Adobe RGB: 98.2% / 106.7%
  • NTSC: 93.3% / 102%
  • sRGB: 100% / 144%


  • DisplayPort
  • DVI-D
  • VGA 15-pin D-sub

Audio Output

  • None

Speaker Type

  • None

Vesa Mounting

  • Yes, 100mm x 100mm, 200mm x 100mm


  • Yes


  • Yes


  • Yes

Height Adjustable

  • Yes

Base Detachable

  • Yes

Agency Compliances / Certifications

  • UL (cUL)
  • TUV-Type
  • RoHS
  • CE
  • FCC-B




  • (operating) 5°C - 35°C (41°F - 95°F)
  • (non-operating) -10°C - 60°C (14°F - 140°F)


  • (operating) 20% - 80% RH (Non-condensing)
  • (non-operating) 10% - 85% RH (Non-condensing)


  • (operating) 3,048m (10,000 ft.)
  • (non-operating) 12,192m (40,000 ft.)

Power Consumption

  • 155W

Standby Power

  • 1.7W

External Case Dimensions

  • (with stand) 27.1" x 18.4" x 11.9" (688.3 x 467.4 x 302.3 mm)
  • 27.1" x 17.6" x 4.9" (688.3 x 447 x 124.5 mm)

Total Shipping Weight

  • (with stand) 41.5 lbs. (18.8 kg)
  • (without stand) 27.6 lbs. (12.5 kg)
Manufacturer provided specifications for NEC p/n PA301W-BK-SV UPC#: 805736037555


  • MultiSync 30" Monitor
  • SpectraViewII Color Calibration Solution
  • Power cord
  • DVI cable
  • USB cable
  • Mounting Screws

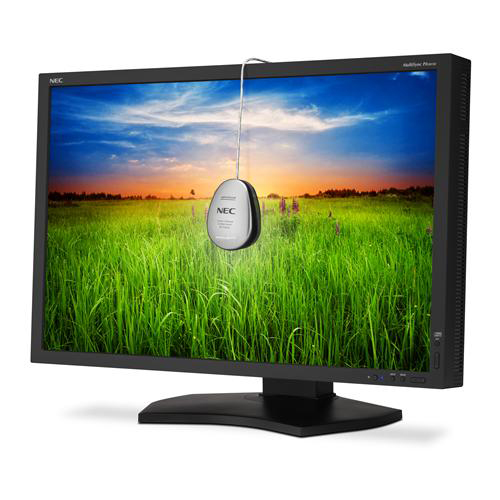

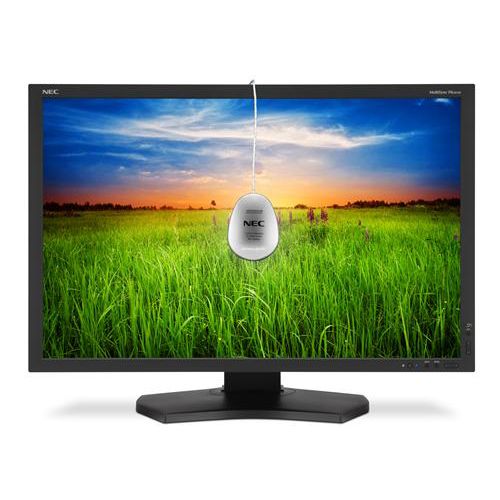

Includes SpectraView II Color Calibration Solution

Software and Colorimeter help the display achieve accurate & consistent color performance

NEC Multisync includes
The SpectraView II Color Calibration Solution combines a customized wide color gamut measurement sensor with sophisticated software, resulting in a highly accurate, reliable, repeatable and feature-rich display calibration and profiling solution.

This monitor also touts an ultra-wide color gamut, allowing you to view photographs and graphics in optimum color. With its multitude of leading-edge capabilities, combined with groundbreaking design, this display could easily be considered the most intelligent visual displays solution to date.

The Calibrator can only be used on other NEC monitors due to the software used is proprietary to NEC.

Software Requirements

  • Apple Mac OS X v10.5 or higher.
  • Microsoft Windows 2000, Windows XP (Home and Professional editions), Windows XP x64, Windows Vista 32 bit and x64 versions, and Windows 7 32 bit and x64 versions.
  • Suse Enterprise Desktop 10 and higher.
  • At least one available USB port for MDSVSENSOR3 color sensor.
NEC MultiSync 30" Professional Graphics Desktop Monitor Mfr P/N: PA301W-BK-SV OWC SKU: NECPA301WBKSV Includes SpectraViewII Color Calibration Kit. Two DisplayPort & two DVI-D dual link inputs. 2560x1600 resolution, 1000:1 Contrast Ratio. 4 Year NEC Warranty Ships: 24-48 hrs only $2,497.99 NEC PA301W-BK-SV, Click to Buy Now
