Description: Ships: Price:
Native Instruments Audio Kontrol 1 Hardware Controller & Software Bundle - great for guitarists! For Mac & PC. (NAT11310) 24-48 hrs $249.00
Add to Your Basket:
Native Instruments

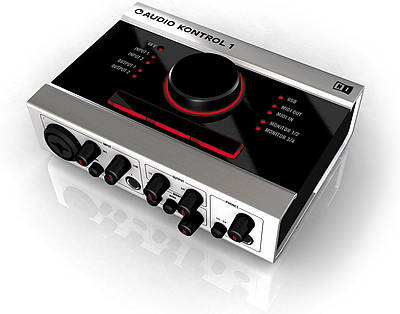

Audio Kontrol 1

Sonic Specialities

The new AUDIO KONTROL 1 is a high-end audio interface. Offering crystal-clear 192 kHz, 24 bit-quality, it is far more than just a sound card. Freely-assignable buttons and a controller knob combine with advanced MIDI key commands for full control of software applications; setup files for popular programs ensure it's hassle-free.

AUDIO KONTROL 1 merges innovation and quality and does so with an ear for practicality.

Universal Appeal

AUDIO KONTROL 1's adaptability makes it the perfect audio interface for musicians, producers and DJs. Versatile connection configurations, included controller assignment preset files as well as the full versions of GUITAR COMBOS and TRAKTOR 3 LE, and now also KEYBOARD COLLECTION and CUBASE LE (for Windows) guarantee its universal appeal:

Perfect for
Producers		 Great for
Guitarists		 Deluxe for
DJs

Top Features

  • High-quality, portable audio interface with sturdy aluminium casing
  • 24-bit / 192 KHz quality, high end Cirrus Logic® A/D, D/A converters and 103 dB-A SNR
  • 2 balanced inputs: 1 line/mic (XLR/1/4" TRS Neutrik, phantom power supplied) and 1 line/HiZ (TRS); individual gain controls with acitvity and clip LEDs
  • 4 balanced outputs (1/4" TRS ) with two stereo level controls
  • Headphone output with A/B source switching and level control
  • Direct monitoring with mono switch and mix control
  • Low latency ASIO/Core Audio driver
  • USB 2 bus powered, MIDI I/O
  • 3 freely-assignable buttons and 1 controller knob. MIDI and key commands support for control of professional audio software and other media applications such as iTunes, Winamp or Final Cut Pro
  • Includes full versions of TRAKTOR 3 LE, GUITAR COMBOS and KEYBOARD COLLECTION, plus CUBASE LE for Windows!

Import and Compatibility

ASIO™, Core Audio™ ,DirectSound™

System Requirements

Mac OSX 10.4.x, G4 1.4 GHz or Intel® Core™ Duo 1.66 GHz*, 512 MB RAM

Win XP, Pentium / Athlon XP 1.4 GHz, 512 MB RAM

Windows systems must have Service Pack 2 installed.

USB 2.0 Interface

Additional Information

The AUDIO KONTROL 1 hardware, TRAKTOR 3 LE and KEYBOARD COLLECTION are Universal Binary - ready for Intel-Macs.

GUITAR COMBOS Universal Binary coming soon!

AUDIO KONTROL 1 drivers are multi-client capable.

GUITAR COMBOS ,TRAKTOR 3 LE and KEYBOARD COLLECTION require registration/activation.

CUBASE LE is only for Windows!

Technical Specifications

General Interface Specifications
Input (A/D) Output (D/A)
Channels 2 4
Sampling Rate 44.1, 48, 96, 192 KHz 44.1, 48, 96, 192 KHz
Bit Resolution 16, 24 16, 24
Converter Cirrus Logic Cirrus Logic

Input Specifications
Line Microphone Instrument
Impedance 44 kOhms
Balanced		 3.6 kOhms
Balanced		 1 MOhm
Unbalanced
Full Scale Level
(max. gain)		 +2 dBu -40 dBu -4 dBu
Maximum Input Level +16 dBu +10 dBu +10 dBu
THD + N 0.006 % 0.007 % 0.006 %
SNR 100 dB
(A-weighted)		 100 dB
(A-weighted)		 100 dB
(A-weighted)
Frequency Response 20 - 20000 Hz
±0.5 dB		 20 - 20000 Hz
±0.5 dB		 20 - 20000 Hz
±0.5 dB
Equivalent Input Noise N/A -128 dBu (A-weighted) N/A

Output Specifications
Line Headphone
Impedance 100 Ohms Unbalanced
200 Ohms Balanced		 8... 600 Ohms (Load)
Maximum Output Level +13 dBu 4.26 V rms,
100 mW @ 100 Ohms
SNR 103 dB
(A-weighted)		 102.5 dB
(A-weighted)
THD + N 0.005 % 0.006 %
Frequency Response 20 - 20000 Hz
±0.5 dB		 20 - 20000 Hz
±0.5 dB

Miscellaneous Specifications

  • MIDI Interface: 1 Input, 1 Output
  • Microphone Input: Includes 48-volt Phantom Power
  • Computer Connection: USB 2.0, Bus-Powered
  • Dimensions: 52mm x 150mm x 123mm (HxWxD)
  • Weight: 400g
