| Specifications |
| Network Ports |
- 16 auto-sensing 10/100/1000 Mbps UTP ports
|
| Forwarding Mode |
|
| Performance |
- Bandwidth: 32 Gbps (non-blocking)
- Forward rate (10 Mbps port): 14,800 packets/sec
- Forward rate (100 Mbps port): 148,000 packets/sec
- Forward rate (1000 Mbps port): 1,488,000 packets/sec
- Latency (100 to 100 Mbps): 40 μ (max)
- Latency (1000 to 1000 Mbps): 10 μ (max)
- Queue buffer memory: 512 Kbytes per port
- MAC address database: 8,000
- Acoustic noise: 0 dB
- Heat dissipation: 38.8 Btu/hr
- Mean time between failures (MTBF): 393,000 hours (~45 years)
|
| Power Consumption |
- 12V DC, 1.5A, 18W; plug is localized to country of sale
|
| Status LEDs |
- Power, link, speed and activity
|
| Physical Specifications |
- Dimensions: (w x d x h) 285 x 103 x 27 mm (11.22 x 4.06 x 1.06 in)
- Weight: 1.08 kg (2.38 lb)
|
| Environmental Specifications |
- Operating temperature: 0º to 50º C (32º to 122° F)
- Operating humidity: 90% maximum relative humidity, non-condensing
|
| Safety Agency Approvals |
- CE mark, commercial
- UL listed (UL 1950)
- C-Tick
|
| Electromagnetic Compliance |
- CE Class A
- FCC Part 15 Class A
- EN 55022 (CISPR 22)
- EN 55024
- VCCI Class A
- C-Tick Class A
|
| Standards Compliance |
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- Honors 802.1p priority tags
- Honors DSCP priority tags
- Jumbo frame support: up to 16 KB
|
| System Requirements |
- Category 5e cables or better
- Network card for each PC or server (e.g. NETGEAR GA311)
- Network software (e.g., Microsoft® Windows®, Linux®, Mac® OS)
|
| Package Contents |

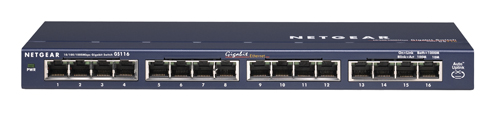

- ProSafe 16-port Gigabit Desktop Switch (GS116v2)
- Wall-mount kit
- AC adapter
- Installation guide
- Warranty/support information card
|
