| Description: | Ships: | Price: |
|---|---|---|
|
DIY Upgrade Bundle: 480GB Mercury Electra 3G Solid State Drive, OWC On-the-Go FW800/USB 2.0 Kit + Includes OWC 5 Piece Tool Kit. 3 Year OWC Warranty on SSD, 1yr OWC Warranty on Enclosure. (DIYSSD480F8)
Parallels for only $35.00! Exclusive offer with purchase of OWC SSDs. Run Windows and/or Linux applications from your OS X Desktop! ---- Additional Offer also available: ---- This item qualifies for the ProSoft Drive Genius Special, only $29 - That's 70% off retail! Offer will be shown in basket once this item is added. |
Same Day |
$758.97 Bundle Priced for: $699.99 |
|
|

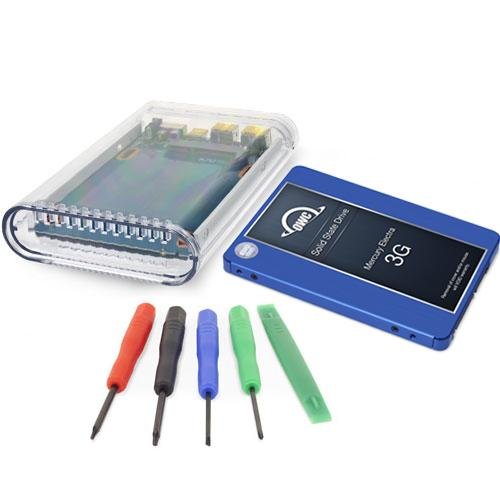

OWC DIY Bundle:
480GB 2.5" OWC Solid State Drive 9.45mm
OWC On-The-Go Pro Quad Kit,
OWC 5 Piece Toolkit & Software Bundle
Mac / PC / FireWire 800 / FireWire 400 / USB 2.0 & 1.1
Everything you need in one package, immediately ready to assemble and:
- Backup and store your data with style and confidence.
- Take your data with you - small enough to keep in a pocket!
- Easily add additional laptop storage with no AC adapter required.
Examples of how this bus-powered On-The-Go
bundle can be used in real world situations:
bundle can be used in real world situations:
Power Users / Travelers: Relocate your "home folder" to your Express and have your files with you at home, at work or on the road without the need to synchronize your machines.
Laptop Owners: Clone your current internal SATA hard drive in your laptop to the new drive. Then install the new, larger drive in your laptop and keep the smaller drive in your Express for additional storage space.
iTunes Aficionados: Keep a copy of your iTunes library on your external drive to play on multiple machines.
Gamers: Add additional storage to your XBox 360 or PS3 game console to store music, media, and other downloads. PS3 even includes a backup utility to protect your internal drive's data.
For Everyone: Have the piece of mind of a complete backup plan. Create a bootable clone of your hard drive at regular intervals so if your computer goes down, your productivity doesn't go down with it. Boot to another computer and keep on working!
Includes
- OWC Mercury On-The-Go Pro FireWire 800 / USB 2.0 storage solution for SATA 2.5" Hard Drives
- 480GB OWC Mercury Electra 3G Solid State Drive
- OWC 5-Piece Mini Toolkit
- Nylon Spudger
- Phillips #00
- Straight Blade 1.8mm
- Torx T8
- Torx T6
- 15" High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable)
- 18" High Quality Double Shielded USB 2.0 (5 pin mini A - B) certified connecting cable
- Carrying Case
- On-The-Go Pro Manual
- OWC 1 Year Warranty with 48-Hour Turnaround Time
- Click here to download (PDF, 11MB)
Gallery
480GB Mercury Electra 3G SSD Specifications:
Specifications
Controller
SandForce 2181 Series Processor with 7% Over Provisioning
NAND
Asynchronous Tier 1/Grade A 2X-nm NAND Flash Storage
Form Factor
Standard 9.5mm 2.5"
Interface
SATA 3Gb/s
Capacity1
480GB useable capacity
Total Flash Memory Components - 512GB
32GB allocated to real-time data redundancy & error correction
Total Flash Memory Components - 512GB
32GB allocated to real-time data redundancy & error correction
Formatted Capacity2
447GiB
RAID Support
Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage.
SMART Attributes
Standard5
Native Command Queuing
up to 32 commands
Manufacturer Model Number
OWCSSDEX3G480
RoHS Compliant
Yes
Format
Unformatted (Instructions on formatting here)
Physical
Height (max)
9.45mm (0.372″)
Width (max)
70.06mm (2.758″)
Length (max)
100.12mm (3.941″)
Weight
80 grams +/- 2 grams
0.176 lbs +/- 2.82 oz
0.176 lbs +/- 2.82 oz
Reliability3
Data Reliability
ECC Recovery: Up to 55 bytes correctable per 512-byte sector
Security
Chip Based Data Encryption: 256-bit & 128-bit AES-compliant
TRIM Support
OS Dependent
Nonrecoverable Read Errors
Less than 1 sector per 1016 bits read
Warranty
3 Year OWC Warranty
(Standard return policy applies.)
(Standard return policy applies.)
Performance
Sustained
Reads (up to)
Reads (up to)
285MB/s
Sustained
Writes (up to)
Writes (up to)
275MB/s
Read Incompressible
Data Rate (up to)
Data Rate (up to)
208MB/s
Write Incompressible
Data Rate (up to)
Data Rate (up to)
235MB/s
Random 4K Read4
Up to 60,000 IOPS
Random 4K Write4
Up to 60,000 IOPS
Read Latency
less than 0.1ms
Write Latency
less than 0.1ms
Environmental (Operating)
Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C
Environmental (Non-Operating)
Temperature (°F)
-67°F to 302°F
Temperature (°C)
-55°C to 150°C
Acoustics
Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels
- 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
- In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
- Specific application environments such as temperature and duty cycle will affect the overall reliability.
- Specifications provided by SandForce.
OWC On-The-Go Pro Specifications:
Bus Interface
- FireWire 1394B (IEE1394A/B/iLink Compliant), 2 9 Pin (powered) ports
- USB 2.0 / 1.1 Backwards compatible 5 pin mini "B" port.
Chipset
- Oxford 943 FireWire/USB chipset
Max Data Transfer Rate
- FireWire 800 - 800Mbps (or 100MB/sec)
- FireWire 400 - 400Mbps (or 50MB/sec)
- USB 2.0 - 480Mbps (or 60MB/sec)
- USB 1.1 - 12Mbps (or 1.5MB/sec)
Macintosh System Requirements
- Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
- Mac OS X 10.2.8 or later. Including ‘Lion’ 10.7.x and an available USB2.0/1.1 or FireWire 800/400 port.
- Time Machine® Compatible: Mac OS X 10.5 (version introduced) and later.
Windows System Requirements
- Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
- Windows 2000 or later and an available USB 2.0/1. or FireWire 800/400 port.
Related Items
Power Supply
- Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add on FireWire 800 PCI Card.
- Bus Power via FireWire 400 on all models made in 2001 or later via Factory ports or any model with add on FireWire 400 PCI Card.
- Bus Power via USB on most computers with USB 2.0 port factory stock.
- Optional AC Adapter* (available as a separate purchase here)
* AC adapter not required for most applications provided computer bus supplies appropriate power needs.
Drive Requirements
- Any 2.5″ SATA hard drive or SSD up to 12.5mm size. Use of 12.5mm size drives requires Installation Support Kit.
External Case Dimensions
- 3.5" (W) x 5.5" (D) x 1" (H)
- 88.9mm x 139.7mm x 25.4mm
Total Shipping Weight
- 6.8 oz. (.19kg) bare enclosure
Product Manual
Operating Environment:
Temperature
- Dependant on mechanism installed
Relative Humidity
- Dependant on mechanism installed
Vibration
- Dependant on mechanism installed
MTBF (hours)
- Dependant on mechanism installed
Warranty
OWC 1 Year Solution Warranty
View more information about the OWC 1 Year Solution warranty
(Standard return policy applies.)
Reviews
-
"Performance is generally very good... clocks in at well over 40MB/s... " — Christopher Phin, Mac Format -
"Performed very well... topped the chart among pocket-size portable external hard drives" — CNET, Rating: Very good -
"The Best of Both Worlds: Performance and Portability." — The Mac Observer -
"Small, Lightweight, Very Rugged and Priced Right" — Scott Kelby, Photoshop User -
"A Little Powerhouse In Your Pocket" — Ko Maruyama, Creative Mac -
"Highly Recommended."
"Faster Than Most Pocket-Size Drives." — PC Magazine -
"Nice Package... Solid Components in a Great Looking Acrylic Case... I Carry This With Me All the Time" — PC Magazine -
"Among The Fastest External Drives We've Tested" — Macworld -
"The Powerhouse of Storage Systems" — Linsey Knerl, Tom's Guide -
"That drive is great... it's my favorite enclosure... it looks AWESOME!!" — Leo LaPorte, Andy Ihnatko, MacBreak -
"Very Fast - Faster Than My Fastest Hard Disk." — Marshall Clow, MacNN -
"An Ideal Storage Upgrade Situation." — John Guilfoil, BlastMagazine.com -
"Blazing Transfer Speeds" — Roberto Baldwin, MacLife -
"Plenty of Oomph" — Dennis Sellers, Macsimum News -
"I Am Very Satisfied With this Enclosure...I Like the See-Through Case...The Ports Are Laid Out Nicely." — Bryan Sherman, The Gadgeteer -
"This Enclosure Has Never Failed Me" — Terry White, Terry White's Tech Blog -
"A Nice Portable Chunk of External Storage... A Worthwhile and Cost-Effective Upgrade." — Ctein, The Online Photographer -
"The OWC Mercury On-The-Go with an Extreme Pro SSD drive is Fast, Silent and Portable!" — Terry White, Terry White's Tech Blog - Mercury Extreme Pro 3G 240GB -
"...a nice looking external drive...Simple installation process"
— Tomas Ratas, Test Freaks
OWC DIY Bundle:
480GB
2.5" OWC Solid State Drive 9.45mm OWC On-The-Go Pro Quad Kit, OWC 5 Piece Toolkit & Software Bundle
Mfr P/N: DIYSSD480F8
OWC SKU: OWCDIYSSD480F8
SATA Enclosure Kit with OWC Mercury Pro SSD & 5 piece toolkit.
On-The-Go: 1 Year Warranty
SSD: 3 Year Warranty Ships: Same Day only $699.99
SSD: 3 Year Warranty Ships: Same Day only $699.99
