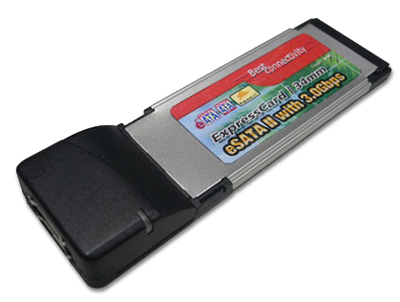

1 Port 3Gb/s eSATA ExpressCard/34 Host Adapter
Supports One SATA device | Hot Pluggable | Hot Swappable

This card adds:
- One External eSATA 3Gb/s Port (for one SATA device)
Requires:
- Available ExpressCard/34 Slot
See Specifiactions below for system and/or OS compatibility information |
Makes adding an eSATA external storage device as easy as plug and play! OWC's eSATA SATA I/II ExpressCard/34 adapter features allows you to hook up a high-speed eSATA device to your laptop, to obtain data transfer rates of up to 3.0Gb/s. This card is compatible with computers that have ExpressCard/34 or ExpressCard/54 slots, and features hot-pluggable and hot-swappable device connections with automatic device configuration. |
 |
|
eSATA Specifications
- Supports 1-independent SATA port
- Data transfer up to 3.0Gbps
- Compliant with Serial ATA II specification
- Backward compatible to Serial ATA 1.0sSpecification
- Supports Native Command Queue (NCQ), Command based switching with Port Multiplier (Windows Only, port multiplication not supported on the Mac)
- Compliant with Gen2i, Gen2m SATA II Electrical Specification Revision 1.0
|
Highlights
- Plug and Play: No drivers required on your Mac.
- Hot Swappable: Add or remove without shutting down.
- JMicron JMB360 chipset
- Compliant with ExpressCard/34 standard
- 1x external SATA II port with 3Gb/s
- Hot plug supported
|
|
| Includes |
- OWC Expresscard with 1x eSATA port
- User Manual
- CD with Windows drivers
|
|
|
| Specifications |
| Ports |
- One External eSATA 3Gb/s Port.
|
| Connections |
- External - Supports one (1) SATA device
|
| Bus Specifications |
|
| Form Factor |
|
| Data Transfer Rate |
- Read up to 170MB/Second
- Write up to 120MB/Second
|
| Chipset |
|
| ATAPI (DVD-ROM) Support |
|
| Bootability |
|
| Operating System Support |
- Mac OS X 10.4.x or later
- Mac OS X Lion compatible
- Windows® 7
- Windows Vista®
- Windows XP Service Pack 2
- Windows 2000
|
| Special notes for Mac users |
- No Drivers are needed for OS X.
- Bootable in MacBook Pro systems using Core 2 Duo processors
(not bootable with original MacBook Pro Core Duo).
- Port Multiplication not supported.
|
| Special notes for Windows users |
- Drivers included on CD
- Cannot boot to drives connected through card.
- Port Multiplication feature is supported.
|
| External Connectivity |
|
| Internal Connectivity |
|
Hot Plug Support
|
|
| Hot Swap Support |
|
| Agency Approvals & Compliance |
|
| Warranty |
|
| Physical |
|
| Dimensions |
- 113mm(L) x 34mm(W) x 4mm(H)
|
| Weight |
|
|
| Click here to get your Model Identifier number |
| Compatibility with the following laptops is as follows: |
 |
Machines Have Model Identifier MacBookPro8,3
MacBook Pro (17-inch Early 2011, 2.2GHz, 2.3GHz)
(February, 2011)
|
 |
|
Machines Have Model Identifier MacBookPro6,1
MacBook Pro (17-inch Mid 2010, 2.53GHz, 2.66GHz, 2.8GHz)
(April, 2010)
|
|
 |
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch Mid 2009, 2.8GHz, 3.06GHz)
(June, 2009)
|
|
|
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch Early 2009, 2.66GHz, 2.93GHz)
(January, 2009)
|
|
 |
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (17-inch Early 2008, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (17-inch Mid/Late 2007, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
|
Machines Have Model Identifier MacBookPro2,1
MacBook Pro (17-inch Core 2 Duo, 2.33GHz)
(October, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,2
MacBook Pro (17-inch, 2.16GHz)
(April, 2006)
|
|
 |
Machines Have Model Identifier MacBookPro5,1
MacBook Pro (15-inch Late 2008, 2.4GHz, 2.53GHz, 2.66GHz 2.8GHz)
(October, 2008)
|
|
 |
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (15-inch Early 2008, 2.4GHz, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (15-inch Mid/Late 2007, 2.2GHz, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
|
Machines Have Model Identifier MacBookPro2,2
MacBook Pro (15-inch Core 2 Duo, 2.16GHz, 2.33GHz)
(October, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch Glossy, 2.0GHz, 2.16GHz)
(May, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch, 1.83GHz, 2.0GHz, 2.16GHz)
(January, 2006)
|
|
 |
PC/Wintel Laptops running Windows XP, Vista, or Windows 7
with available ExpressCard/34 slot
|
|
|
|
