2 Port FireWire 400 ExpressCard/34 Adapter
Plug & Play | Hot Swappable

This card adds:
- Two External FireWire 400 Ports
Requires:
- Available ExpressCard/34 Slot
See Specifiactions below for system and/or OS compatibility information |

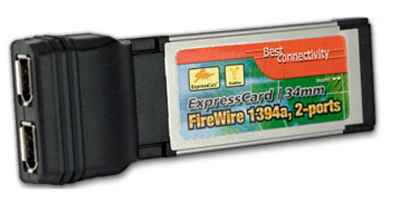

OWC's FireWire ExpressCard/34 features two FireWire 400 ports, each port offering full-bandwidth data throughput, which means you get full-speed connections with no performance hit. This card is compatible with computers that have ExpressCard/34 or ExpressCard/54 slots, and features hot-pluggable and hot-swappable device connections with automatic device configuration. |
 |
|
Features
- 2-ports FireWire 1394a with 400Mb/s
- Compliant with ExpressCard/34 standard
- IEEE 1394-1995 Standard compliant, for High Performance
- Serial Bus and P1394A Supplement 4.0
- 1394 OpenHCI Specification V1.0 and V1.1 compliant
- Data transfer rate: 100/200/400 Mbps
- Fully plug & play and hot plug supported
|
|
|
|
|
| Specifications |
| Ports |

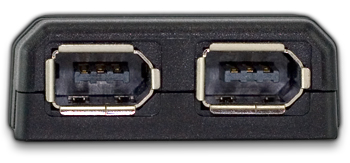

- 2 External FireWire 400 (IEEE 1394a)
|
| Connections |
|
| Form Factor |
|
| Bus Type |
|
| Controller / Chipset |
- Texas Instruments TI XIO2200
|
| Data Transfer Speeds |
- FireWire 400 - 400Mbps (or 50MB/sec)
|
| Operating System Support |
- Mac OS X 10.4 or later
- Microsoft Windows 7, Vista, 2000 and Windows XP
|
| Hardware Requirements |
- MacBook Pro with an available ExpressCard/34 slot
- PC notebook with an available ExpressCard/34 slot
|
| Voltage |
- +3.3V ~+3.0V
(±5% wide range power supply)
|
| Agency Compliances |
|
| Note |
|
| Warranty |
|
| Physical |
|
| Dimensions |
- 117mm(L) x 37mm(W) x 20mm(H)
- 34mm ExpressCard Compliant
|
| Weight |
|
| Operating Temperature (Hardware Environment) |
|
| Relative Humidity |
- Operating: 20% to 80%
- Non-Operating: 15% to 90%
|
|
| Click here to get your Model Identifier number |
| This is compatible with the following laptops: |
 |
Machines Have Model Identifier MacBookPro8,3
MacBook Pro (17-inch Early 2011, 2.2GHz, 2.3GHz)
(February, 2011)
|
 |
|
Machines Have Model Identifier MacBookPro6,1
MacBook Pro (17-inch Mid 2010, 2.53GHz, 2.66GHz, 2.8GHz)
(April, 2010)
|
|
|
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch Mid 2009, 2.8GHz, 3.06GHz)
(June, 2009)
|
|
|
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch Early 2009, 2.66GHz, 2.93GHz)
(January, 2009)
|
|
 |
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (17-inch Early 2008, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (17-inch Mid/Late 2007, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
|
Machines Have Model Identifier MacBookPro2,1
MacBook Pro (17-inch Core 2 Duo, 2.33GHz)
(October, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,2
MacBook Pro (17-inch, 2.16GHz)
(April, 2006)
|
|
 |
Machines Have Model Identifier MacBookPro5,1
MacBook Pro (15-inch Late 2008, 2.4GHz, 2.53GHz, 2.66GHz 2.8GHz)
(October, 2008)
|
|
 |
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (15-inch Early 2008, 2.4GHz, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (15-inch Mid/Late 2007, 2.2GHz, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
|
Machines Have Model Identifier MacBookPro2,2
MacBook Pro (15-inch Core 2 Duo, 2.16GHz, 2.33GHz)
(October, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch Glossy, 2.0GHz, 2.16GHz)
(May, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch, 1.83GHz, 2.0GHz, 2.16GHz)
(January, 2006)
|
|
 |
PC/Wintel Laptops running Windows XP or Windows 7
with available ExpressCard/34 slot
|
|
|
|
