Use your 3.5" bare hard drives with the convenience found in flash memory cards.
Have several bare 3.5" SATA hard drives lying around? Forgot what's on them? Don't want the hassle of installing each into an enclosure to read the data? Perhaps you archive your photos or videos on hard drives and only need to access specific drives occasionally. Tired of screwing and unscrewing those drives into an enclosure each time you need to use them? With this bundle, those days are over. Now you can have hot-swappable storage as simple to use as a flash drive. By installing the Incessa Drive Drawer into the Mercury Pro Quad Interface Enclosure, you now have easy, instant access to your data.
But the value doesn't stop there.
This locking drive drawer bundle features a solid enclosure to protect your hard drive, a cooling fan, and all the convenience of desktop access. Taking your presentation to a client and don't know what computer ports will be available on their system? Travel knowing the data is safe and secure within the enclosure. The OWC Mercury Pro Enclosure includes an amazing 4 interface types: FireWire 800, FireWire 400, USB 2.0, and eSATA! With so many interface choices, it's compatible with virtually any system!
*Note: Hard Drive Activity light non-fuctional when installed in this enclosure.
Descriptions below are indicative of each product separately.
|
|
|
|
|
Drive drawers generally come in two pieces. One (the bay) is mounted in a standard 5.25 inch bay opening in the front of the computer. The other (the caddy) contains the hard drive. The removable caddy moves in or out of the bay on slides. When the caddy is seated in the bay, locked in place, and the key turned on, the connection between the hard drive and the computer SATA port is completed and the hard drive operates normally.
What Makes This Different?
No Caddy Needed! Once installed in your drive bay, you can insert and eject 3.5" SATA hard drives as easily as a floppy disk, tape backup system or flash memory card. Now you can separate and organize large groups of files onto their own hard drive. Perfect for video and/or photo archives, making cloned backups of your internal hard drive to be kept offsite for safety and security, or moving large blocks of data from one machine to another. |
Product Features:
- Easily transport and secure valuable data.
- Easy open latch door.
- Safety metal key lock.
- Patent NSS (Non-Scratch SATA connector).
- 50,000 times insertion rate.
- Supports hot swap*.
- Supports SATA II (3.0 GB/s).
- Caddy-less design.
- Compatible with a wide variety of PC cases.
- Special silicon anti-shock system.
- Driver-free support.
|
|
Specifications
| Item Number: |
IN-SBK-1000 |
| Suitable hard disk type: |
1.0" or 1.6" height, and 3.5" H.D.D. |
| Interface: |
Serial ATA (SATA) |
| Color: |
Black |
| Key Lock: |
Yes |
| Connector: |
NSS (Non-Scratch SATA). |
| Material |
Metal / Plastic. |
| Weight |
2.0 lbs (907 g) / unit. |
| Dimension (L x W x H) |
7 3/16"(182 mm) L x 5 3/4"(146 mm) W x 1 5/8"(42 mm) H. |
| Warranty |
90 Day Manufacturer Warranty
 |
|
*This drive drawer supports hot-swapping as long as the rest of the hard drive sub-system is compatible with hot-swapping.
i.e. The hard drive controller, or RAID controller, and the Operating System.
*Note: Hard Drive Activity light non-fuctional when installed in this enclosure. |
Additional Views:
|
|
|
|
|

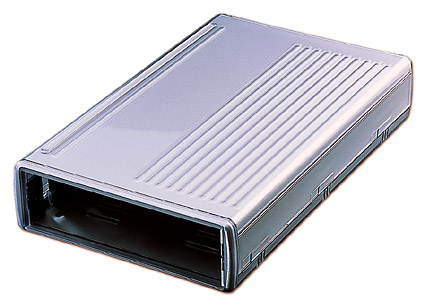

OWC Mercury Pro FireWire 800/400, USB 2.0, eSATA, 5.25" SATA Enclosure |
 |
Turn your 5.25" SATA optical drive into an external optical drive! Just install your favorite drive mechanism into the OWC Mercury Pro enclosure, plug in, and go! It's that easy!
This is a cross-platform solution for both Mac and PC.
The OWC Mercury Pro includes an amazing 4 interface types! FireWire 800, FireWire 400, USB 2.0, and eSATA! With so many interface choices, it's compatible with virtually any system!
The OWC Mercury Pro includes connecting cables for all 4 interface types. Offering true Plug & Play, it's never been easier to get started creating your own DVDs. |
|
FireWire makes it easy, OWC Mercury makes it faster! With transfer rates of up to 300MB/s and a variety of interfaces enables, the OWC Mercury Pro adds Plug and Play connection versatility to nearly any Mac or PC. |
| Product Specifications: |
| Chipset: |
Oxford 934DSB |
| Bus Interface: |
- FireWire 800 (1394b) - 2 Ports
- FireWire 400 (1394a) - 1 Port
- eSATA - 1 Port
- USB 2.0 (1.1 Backwards Compatible) - 1 Port
|
| System Requirements: |
Variable depending on the drive mechanism installed. |
| Compatible Mechanisms: |
CD, CD-R, CD-RW, DVD, DVD-R, DVD-RW, DVD-RAM, Blu-Ray, HD-DVD drive with a SATA interface - compatible with high speed burners. |
| Power Supply: |
110v-240v auto switching |
| External Case Dimensions: |
6.3 in (W) x 11.3 in (D) x 3.1 in (H) |
| Total Shipping Weight: |
Less than 4.0Lbs/1.8kgs |
| Operating Environment: |
| Temperature: |
(operating) 5deg;C - 55deg;C (41deg;F - 131deg;F) (non-operating) -40degC - 65deg;C (-40deg;F - 149deg;F) |
| Relative humidity: |
(operating) 8% - 90% RH (Non-condensing) (non-operating) 5% - 95% RH (Non-condensing)Shock: (operating) 65G 2mS (non-operating) 175G 2mS |
| Vibration: |
Varies with drive mechanism installed |
| MTBF: |
Varies with drive mechanism installed |
| Warranty: |
1 year |
| This OWC Mercury FireWire Drive Includes: |
- External SATA 5.25" Case Kit
|
- High Quality Double Shielded FireWire 800 (1394b) connecting cable (9-9 Pin cable)
|
- High Quality Double Shielded FireWire 400 (1394a) connecting cable (6-6 Pin cable)
|
- High Quality eSATA connecting cable
|
- USB 2.0 Certified A-B Connecting Cable
|
- 110v US Standard Power Cable & 110/240v Auto Switching International Power Supply
|
| Rear View: |
|
|
|
Special OWC Bundle!
