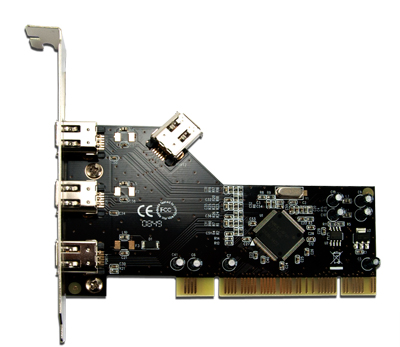

4-Port FireWire 400 PCI Host Adapter
Plug & Play | Hot Swappable | Up to 400Mbps

This card adds:
- Three External FireWire 400 Ports
- One Internal FireWire 400 Port
Requires:
See Specifications below for system and/or OS compatibility information |
|
 |
|
Add more FireWire ports to your
PowerMac G5, Mac Pro, or PC.
This FireWire 400 adapter card can be installed in any PCI slot in order to add three external and one internal IEEE 1394a ports, making it an ideal selection for connecting a broad range of FireWire 400 compatible devices such as external storage, DV camcorders, HD video cameras, personal multimedia devices and more.
|
Features
- Firewire 1394a ports: External x3 and Internal x1
- PCI 2.2 compliant
- PC99 ACPI Compliant
- Transfer rate: Each port up to 400Mbps
- Meets all OHCI and 1394A requirements
- External port: 1394a x 3
- Internal port: 1394a x 1
|
|
| Package Includes |
- 1394a PCI card
- FireWire 400 cable
- Ulead VideoStudio DV software
- User manual
|
|
|
| Specifications |
| Ports |
- Three FireWire 800 (1394b)
|
| Connections |
- External - 3 Ports
- Internal - 1 Port
|
| Bus Specifications |
- PCI 2.2 compliant PCI slot
|
| Form Factor |
|
| Operating System Support |
- Windows 7
- Windows Vista
- Windows 2003
- Windows XP
- Windows 2000
- Windows ME
- Windows 98SE
- Linux
- Mac OS X 10.2.8 or later (including Lion)
|
| External Connectivity |
- x3 FireWire 400 (1394a) connector
|
| Internal Connectivity |
- x1 FireWire 400 (1394a) connector
|
| Data Transfer Rates |
- FireWire 400 - 400Mbps (or 50MB/sec)
|
| Compliances |
|
| Warranty |
|
| Physical |
|
| Temperature |
- operating: 20°C - 50°C (68°F - 122°F)
- non-operating: -0°C - 65°C (-40°F - 149°F)
|
| Relative humidity |
- operating: 20% - 80% RH (Non-condensing)
- non-operating: 5% - 95% RH (Non-condensing)
|
| Dimensions |
|
| Weight |
|
|
| Included Software |
|
Ulead Video Studio DV 5.0 for Microsoft Windows systems
Ulead VideoStudio DV 5.0 is a complete consumer video editing application that allows users to capture and edit video through USB Instant Video. Designed with an intuitive interface for beginners, VideoStudio also includes powerful functionality such as batch capture, and scene detection for easy video acquisition, and storyboard and timeline modes. Requires Windows NT / 98 / 95. View detailed software info |
|
| Click here to get your Model Identifier number |
| This PCI Card is compatible with the following Computers: |
 |
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (dual 2.0GHz)
(April, 2005)
|
|
|
Machines Have Model Identifier PowerMac9,1
Power Mac G5 (1.8GHz)
(October, 2004)
|
|
|
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (dual 1.8GHz, dual 2.0GHz, dual 2.5GHz)
(June, 2004)
|
|
|
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (1.6GHz, 1.8GHz, dual 1.8GHz, dual 2.0GHz)
(June, 2003)
|
|
 |
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (Mirrored Drive Doors - 1.25GHz & dual 1.25GHz)
(June, 2003)
|
|
|
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (FW 800 - 1.0GHz, dual 1.25GHz, & dual 1.42GHz)
(January, 2003)
|
|
|
Machines Have Model Identifier PowerMac3,6
Power Mac G4 (Mirrored Drive Doors - dual 867MHz, dual 1.0GHz, & dual 1.25GHz)
(August, 2002)
|
|
 |
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002 ED - 867MHz)
(August, 2002)
|
|
|
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002 - 733MHz, 800MHz, 933MHz, dual 1.0GHz)
(January, 2002)
|
|
|
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver - 733MHz, 867MHz, dual 800MHz)
(July, 2001)
|
|
 |
Machines Have Model Identifier PowerMac3,4
Power Mac G4 (Digital Audio - 466MHz, 533MHz, dual 533MHz, 667MHz, 733MHz)
(January, 2001)
|
|
|
Machines Have Model Identifier PowerMac3,3
Power Mac G4 (Gigabit Ethernet - 400GHz, dual 450MHz, dual 500GHz)
(July, 2000)
|
|
|
Machines Have Model Identifier PowerMac3,1
Power Mac G4 (AGP Graphics - 350MHz, 400MHz, 450GHz, 500GHz)
(September, 1999)
|
|
|
Machines Have Model Identifier PowerMac1,2
Power Mac G4 (PCI Graphics 'Yikes' - 350MHz, 400MHz)
(August, 1999)
|
|
 |
Machines Have Model Identifier PowerMac1,1
Power Macintosh G3 (Blue & White - 300MHz, 350MHz, 400MHz, 450MHz)
(January, 1999)
|
|
 |
PC/Wintel Desktops
Windows PC with 33-MHz/64-bit PCI slot.
|
|
|
|
