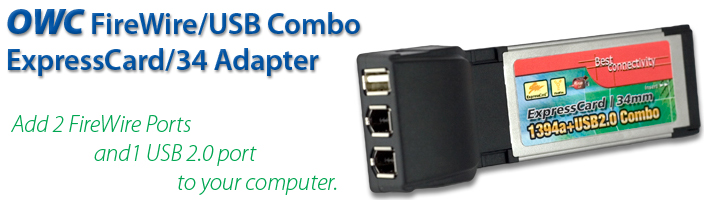

OWC's FireWire/USB Combo ExpressCard/34 features two FireWire 400 ports and one USB 2.0 port. Each port offers full-bandwidth data throughput, which means you get full-speed connections with no performance hit. This card is compatible with computers that have ExpressCard/34 or ExpressCard/54 slots, and features hot-pluggable and hot-swappable device connections with automatic device configuration.
System Requirements:
Features and Benefits
- TI XIO2200 Chipset
- 2-ports FireWire 1394a + 1-port USB2.0
- Compliant with ExpressCard/34 standard
- Fully plug & play and hot plug supported
- 1 Year Warranty
|
USB 2.0 Specifications
- One USB Type-A connector
- USB 2.0 Specification compliant
- Backward compatible to USB1.1 Specification
- Data transfer rate: High Speed 480Mbps, Full Speed 12Mbps and Low Speed 1.5Mbps
|
FireWire Specifications
- Two 6-Pin 1394a ports
- IEEE 1394-1995 Standard compliant, for High performance Serial Bus and P1394A Supplement 4.0
- 1394 OpenHCI Specification V1.0 and V1.1 compliant
- Data transfer rate: 100/200/400 Mbps
|
- MacBook Pro models with ExpressCard/34 slot
OSX 10.4.x & 10.5.x
- Windows Notebook with an ExpressCard/34 or ExpressCard/54 slot
Windows XP SP2 or Vista.
- Bus-powering of devices requires
a power adapter. (sold separately)

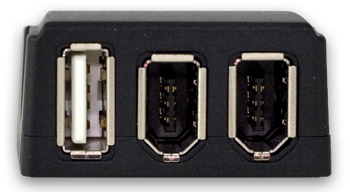

Enlarged Port View
OWC 1 Year Warranty |
