Description: Ships: Price:
2.0TB OWC Mercury Elite-AL PRO FireWire 800/400+USB2.0 Performance RAID-0 Stripe GreenPower 5400RPM Dual SATA HDs Oxford 934 Storage Solution w/64MB Data Buffer. All Cables, Prosoft Data Backup 3, NovaBACKUP, Intech SpeedTools. 3yr Warranty. (OWCME8SRS20EB64)

The purchase of this item qualifies you for special savings on Prosoft Drive Genius v2, up to $74 off Retail! - Offer will display on basket page once item is added.
Same Day $289.99
Add to Your Basket:
Mercury Elite Header

OWC Mercury Elite-AL Pro RAID
FW800/400 & USB 2.0 Storage Solutions

High Performance, High Reliability, High Portability, and Style
are standard for the OWC Mercury Elite-AL Pro RAID Series!

Creative Mac logo
"it's a solid choice..."

MacHome Outstanding
MacAddict Great"Speedy and Solid (RAID) Array"
MacAddict Magazine
Feb. 2006 Issue

Dual Bay EnclosureOutstanding Features:

High Performance: The High-Speed Oxford 934 FireWire 800/400 & USB 2.0 chipset combined with the fastest SATA drive mechanisms available give OWC Mercury Elite-AL Pro RAID Solutions some of the fastest single drive transfer rates possible, even exceeding 80 Megabytes Per Second!

High Reliability: A Top-Notch Design and the Best Components ensure the OWC Mercury Elite-AL Pro RAID Series is Built to Last. The included Three Year Warranty backs this up!

High Portability: The Compact and Shock Resistant Design has the Mercury Elite Series going places! In addition, the OWC Mercury Elite-AL Pro RAID series offers (2) FireWire 800(1394B) ports, (1) FireWire 400 (1394A) port and 1 USB 2.0 port for Easy Plug and Play on ANY system! The OWC Mercury Elite-AL Pro RAID even includes all types of cables!

Style: Designed to compliment any user's system, the OWC Mercury Elite-AL Pro RAID was created in mind with the Power Macintosh G5 system as a starting point. As the pictures show, it's a fine storage solution for any computer. Also, a blue activity LED compliments the design recessed behind the front grille showing when your drive is being accessed.

From day one, the OWC Mercury Elite Series has been designed to be everything you'd hope for and more!

Time Machine Ready Logo Time Machine ready means that our external hard drives keep an up-to-date copy of all of your files and document under OS X Leopard™. Go back in time to recover anything with ease.
EMC Retrospect & Intech Hard Disk SpeedTools Included

PRoSoft LogoProsoft Engineering® Data Backup
for Mac OS X v10.2.8 or later

Macworld Top ProductMacworld 4.5 miceBackup Made Easy. Data Backup makes it easy to backup to FireWire and USB drives, network drives, CDs and even DVDs. Make schedules so you don't need to 'think' about backing up... It does it for you. A $59.00 Value, FREE!

NovaStor
NovaStor NovaBACKUP® Solution for
Windows®
NovaBACKUP has been helping millions of users recover from data loss and disasters for over 18 years. Feature rich, NovaBACKUP provides a powerful backup solution. Built-in support for hundreds of the most popular storage devices and a step-by-step backup and restore wizard makes NovaBACKUP extremely easy to use. Requires Windows 2000 and later. A $49.95 Value, FREE!

Intech Speed Tools logoIntech® SpeedTools Utilities™
Intech Hard Disk SpeedTools consists of a suite of utilities managed by an application which controls the launching, documentation and version control of each individual component utility, such as Disk Defrag and QuickBack. An easy-to-use installation and removal application is provided to make installation a snap, yet powerful enough to allow you to customize which utility component set you would like to create.
An $89.95 Value, FREE!
All OWC Mercury FireWire hard drives are fully compatible with these systems
Mac OS logo

Mac OS X 10.0.x and later - including the latest 10.5.x Leopard™, Apple Mac OS 8.6 and Later.

Mac OS X 10.2.x or later required for FW800 operation.

Winodws PC logo

Windows ME and Later.

Windows 2000 or later required for FW800 operation.

Product Specifications:
Chipset:

Custom Oxford 934 FW800 (1394B) / FW400(1394A) and USB 2.0 (1.1 Backwards compatible) Chipset

Interfaces Supported:
  • FireWire 800 (1394B)
  • FireWire 400 (1394A)
  • USB 2.0 (1.1 Backwards compatible)
RAID / JBOD Support: RAID 0 "Stripe"
Drive Rotation Speed: 5400 RPM
Data Buffer: 64 Megabyte (2 Drives with 32MB (32,768k) cache each)
Port Configuration:
  • FireWire 800 - (2) 9 pin ports
  • FireWire 400 - (1) 6 pin port
  • USB 2.0 - (1) "A" port
Maximum Data
Transfer Rate:
  • FireWire 800 - 800Mbps (or 100MB/sec)
  • FireWire 400 - 400Mbps (or 50MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)
Macintosh System
Requirements:
  • Mac OS 8.6 to 9.2.2, 10.0.x or later and an available USB 1.1 or FireWire 400 port.
  • Mac OS X 10.2.8 or later and an available USB 2.0/1.1 or FireWire 800 port.
Windows System
Requirements:
  • Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
  • Windows 2000 or later and an available USB 2.0/1.1, FireWire 800 port.
Software Included:
Power Supply: 4A 100-240v 50/60hz US/International Auto Switching
External Case Dimensions: 9.3" x 2.8" x 5.6" (237mm x 72mm x 142mm)
Drive Weight
(no accessories):
Approximately 3.0 pounds (1.36kg)
Operating Environment:
Temperature: (operating) 5°C - 55°C (41°F - 131°F)
(non-operating) -40°C - 65°C (-40°F - 149°F)
Relative humidity: (operating) 8% - 90% RH (Non-condensing)
(non-operating) 5% - 95% RH (Non-condensing)
Shock: (operating) 65G 2mS (non-operating) 175G 2mS
Vibration: (operating) 1.0G (5 - 300Hz) (non-operating) 5.0G (5 - 500Hz)
MTBF: More than 300,000 power-on hours
Warranty: Three Year Repair/Replacement Warranty

Note: Do not disassemble or otherwise open your OWC solution prior to the conclusion of OWC's 3 year Warranty period. Doing so will void the remainder of the OWC warranty.

Standard mechanisms: Western Digital Caviar Green

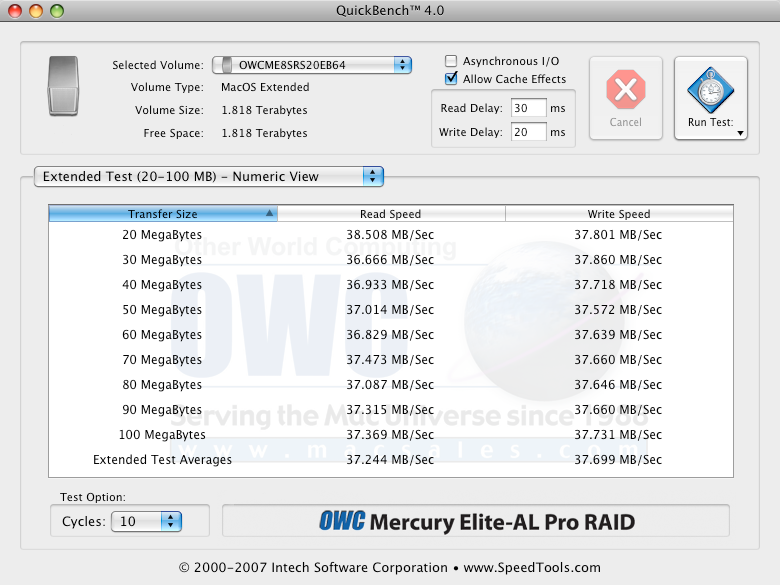

Performance Benchmarks
Tested using a Dual 1.25GHz Power Mac G4 (FW800) running Mac OS X 10.5.6

FireWire 800 (1394B)

FireWire 400 (1394A)

USB 2.0
(Using Sonnet Allegro USB 2.0 PCI Card)
Click benchmark images
for larger view




Other Views:
Rear View
This OWC Mercury Elite -AL Pro drive includes:
