OWC Mercury Elite Pro RAID Enclosure Kit with FireWire 800 & USB 3.0 Interfaces for Two SATA Drives. All cables included. 1 Year OWC Limited Warranty. (MED3FH0GB) Same Day $119.99
OWC Discounted Price: $109.99
Rating: 4.4 based on 5 reviews.
Add to Your Basket:


OWC Mercury Elite Pro RAID

0GB RAID "Add your own drives"
Enclosure Kit

Mac / PC / USB 3.0 & 2.0 / FireWire 800 (FireWire 400 Backwards Compatible)
  • Mac
  • PC
  • FireWire 800/400
  • USB
High-performance and reliability come standard with the OWC Mercury Elite Pro Dual Drive RAID Enclosure.
Time-Tested
The Elite Pro Dual is a customer favorite in the OWC external drive lineup and has provided professional and enthusiasts alike with reliable, time-tested, large capacity and high-performance storage for over 8 years.
High-Performance, Easy to Connect
The Elite Pro Dual combines high-speed Oxford chipsets with two SATA drive bays, allowing you to install two SATA drives up to 4.0TB. Once installed, you can set up both internal drives in RAID 0, RAID 1, or span drive modes.

The Elite Pro Dual comes with two FireWire 800 ports, which are FireWire 400 compatible and a USB 3.0 / 2.0 port. It's also plug-and-play easy to connect to any Mac or PC.
Runs Cool & Quiet
The Elite Pro Dual utilizes a vented front plate and whisper quiet fan to cool the two internal drives by moving air through the enclosure. In addition, its rugged 2mm thick aluminum enclosure acts as a heat sink. This tandem cooling action keeps the Elite Pro Dual running coolly, quietly, and reliably.
Built to Last
A rugged, shock-resistant aluminum enclosure coupled with high-quality internal components ensures the Elite Pro Dual RAID is built to last. It also comes backed by a 1 Year OWC Enclosure Limited Warranty.
Key Features:
  • Supports two 3.5" SATA hard disk drives
  • RAID Support: RAID 0, 1, and span
  • Up to 64MB data buffer
  • Up to 10,000RPM speeds
  • Up to 300MB/s performance with RAID-0
  • Oxford 946DSE and Oxford 3101 chipset
  • Whisper quiet operation
  • Shock resistant aluminum enclosure
  • Drive activity LED (blue)
  • Includes all interface cables
From day one, the OWC Mercury Elite Series has been designed to be everything you'd hope for and more!

Includes

Gallery

Product Specifications:

Chipset

  • Custom Oxford 946DSE and Oxford 3101 FW800 (1394B) / USB 3.0 (2.0 Backwards compatible) Chipset

Interfaces Supported

  • FireWire 800 (1394B)
  • USB 3.0 (2.0 Backwards compatible)

Supported Drive Type

  • Supports Two 3.5" Serial ATA Drives (1.5Gb/s, 3.0Gb/s, and 6.0Gb/s)

Drive Speed Support

  • Up to 10,000RPM

Recommended configurations supported

  • RAID 0 Performance Striping for maximum performance (requires two identical Hard Drives)
  • Non-RAID Span mode combines the capacity of two drives of the same size without any RAID data distribution scheme into one logical volume. Will also combine the capacity of varying size drives based on the lowest capacity drive in the set.
  • RAID 1 also supported, but we strongly recommend the NewerTech Guardian MAXimus for maximum RAID 1 performance requirements.

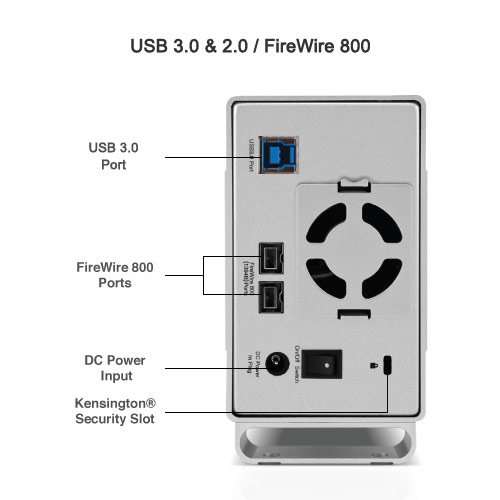

Port Configuration

  • FireWire 800 - (2) 9 pin ports
  • USB 3.0 - (1) Standard-B port

Max Data Transfer Rate

  • FireWire 800 - 100MB/s
  • FireWire 400 - 50MB/sec
  • USB 3.0 - 300MB/s
  • USB 2.0 - 60MB/s
  • USB 1.1 - 1.5MB/s

Port/Interface Bootability

Can I use this solution as an external startup drive?

Macintosh System Requirements

  • Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later. Including 'Mavericks' 10.9.x (10.2 or later required for FW800 and USB 2.0)
  • USB 3.0: Macintosh with USB 3.0 interface, either built in or via USB 3.0 expander card.
  • USB 2.0: Macintosh with USB 2.0 interface, either built in or via USB 2.0 expander card.
  • FireWire 800: Macintosh with FireWire 800 interface, either built in or via FireWire 800 expander card.
  • FireWire 400: Macintosh with FireWire 400 interface, either built in or via FireWire 400 expander card.
  • Time Machine® Compatible: Mac OS X 10.5 (version introduced) and later.

Windows System Requirements

  • USB 3.0: Windows XP and later with USB 3.0 interface, either built in or via USB 3.0 expander card.
  • USB 2.0: Windows 2000 and later with USB 2.0 interface, either built in or via USB 2.0 expander card.
  • FireWire 800: Windows 2000 and later with FireWire 800 interface, either built in or via FireWire 800 expander card.
  • FireWire 400: Windows 2000 and late with FireWire 400 interface, either built in or via FireWire 400 expander card.

Linux Requirements

  • Linux compatible via supported USB and FireWire interfaces.

Power Supply

External Case Dimensions

  • 2.8 in (W) x 9 in (D) x 5.25 in (H) (71.2mm x 228.6mm x 133.4mm)

Drive Weight (no accessories)

  • Approximately 5.5 pounds (2.5kg)

Product Manual

Operating Environment:

Temperature

  • (operating) 5°C - 42°C (41°F - 107°F)
  • (non-operating) -40°C - 65°C (-40°F - 149°F)

Relative Humidity

  • (operating) 8% - 90% RH (Non-condensing)
  • (non-operating) 5% - 95% RH (Non-condensing)

Shock

  • 65G 2mS; (non-operating) 175G 2mS

Vibration

  • (operating) 1.0G (5 - 300Hz)
  • (non-operating) 5.0G (5 - 500Hz)

MTBF (hours)

  • More than 300,000 power-on hours

Warranty

Manufacturer provided specifications for Other World Computing p/n MED3FH0GB UPC#: 794504326154
