Description: Ships: Price:
60GB SSD OWC Mercury On-The-Go Oxford FireWire 800 / 400+USB2 SSD Portable SATA 2.5" based Solution. All Cables, Carrying Case, Prosoft Data Backup, Intech HD SpeedTools Included. 3 year OWC Warranty (MS8USSD060)

Parallels for only $35.00! Exclusive offer with purchase of OWC SSDs. Run Windows and/or Linux applications from your OS X Desktop!
----
Additional Offer also available:
----
This item qualifies for the ProSoft Drive Genius Special, only $29 - That's 70% off retail!
Offer will be shown in basket once this item is added.
Same Day $157.99
OWC Discounted Price: $149.99
Add to Your Basket:


OWC On-The-Go Pro

60GB SSD Triple Interface Storage Solution

Mac / PC / FireWire 800 / FireWire 400 / USB 2.0 & 1.1
  • Mac
  • PC
  • FireWire 800/400
  • USB
The OWC Mercury On-The-Go FireWire 800/400 + USB 2.0 Storage Solution provides maximum storage in an ultra-portable, totally bus powered design!
Outstanding Features
Built with the fastest and most reliable Solid State Drive on the market today. The Mercury Electra 3G SSD line features industry leading SandForce® DuraClass Technologies:
  • DuraWrite™ extends the endurance of your Solid State Drive (SSD).
  • Intelligent Block Management & Wear Leveling automatically distributes data evenly across the entire SSD.
  • Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use.
  • Intelligent "Recycling" for advanced free space management gradually re-writes data across the SSD over time to ensure data never gets corrupted.
  • RAISE™ (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup.
  • Best-in-Class ECC Protection for longest data retention and drive life.
Compact and Versatile
If you're looking for one of the most compatible mass storage solutions made, look no further! The OWC Mercury On-The-Go drive is all you'll need! Packing a one-two punch of super fast FireWire 800 and USB 2.0, the OWC Mercury On-The-Go has what it takes to truly work cross platform. The Mercury On-The-Go Pro is bus-powered, so it doesn't require an AC adapter!
Cool and Silent
The OWC Mercury On-The-Go keeps everything running silent while still keeping your drive cool with a built in aluminum heatsink underneath the hard drive, and passthrough cooling vents on the top of the case. No moving parts on the SSD means no noise emitting from the unit whatsoever.
Fast and Reliable
The OWC Mercury On-The-Go drive uses the latest Oxford chipset for both FireWire 800/400 and USB 2.0. Designed to work with SATA hard drives, this chipset is the latest evolution of the best performing FireWire chipsets on the market. With an SSD drive, your data is not affected by movement or even significant physical contact while operating, thus giving you the highest data performance available.
Includes the Powerful SpeedTools Utility Suite for Mac
The comprehensive Mac utility used by professionals for accurate Mac diagnosis and maintenance. Click the SOFTWARE tab below to learn more »

Includes

Mercury On-The-Go includes
  • OWC Mercury On-The-Go Pro FireWire 800/400 + USB 2.0 storage solution
  • 15" High Quality Double Shielded FireWire 800 connecting cable (9-9 Pin cable)
  • 16" High Quality Double Shielded USB 2.0 certified connecting cable
  • Carrying Case
  • Backup and Utility software CD
    • Intech® SpeedTools Utilities™ OEM (For Mac OS 8.6 - X only)
    • ProSoft Engineering® Data Backup for Mac OS X v10.2.8 or later
    • NovaStor NovaBACKUP® for Windows 2000 or later
    • Carbon Copy Cloner© for Mac OS X 10.4 or later
  • On-The-Go Pro Triple Manual (4.9MB PDF)
  • Over 1.5GB of Freeware/Shareware/Public domain software installed
  • OWC 3 Year Solution Warranty with 48-Hour Turnaround Time
  • Complimentary Level 1 Data Recovery

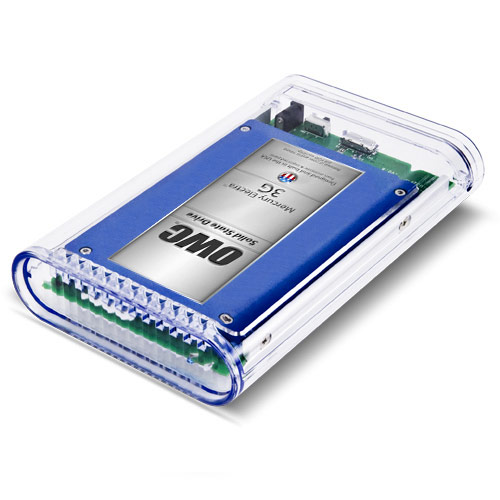

Gallery

Product Specifications:

Bus Interface

  • FireWire 1394B (IEE1394A/B/iLink Compliant)
  • USB 2.0 / 1.1 Backwards compatible

Chipset

  • Oxford FireWire/USB chipset

Standard Mechanism

    Full 16 channel Implementation

    Release Candidate (RC) firmware set

    There are two kinds of firmware for SSDs Mass Production (MP) and Release Candidate (RC). Prior to an MP firmware release, there are beta firmware releases and an RC firmware release. Often, the RC is the same as the MP release, however there can be small changes and bug fixes made between the two. OWC has evaluated the RC for the 6Gb/s SandForce 2281 Processor and found it to be stable with no issues reported during our testing. However, as with any evolutionary product, issues may surface as different usages and configurations are employed and it is important to understand that there will be further updates and revisions.

    Since no firmware update is currently offered for the OWC Mercury EXTREME Pro 6G SSD, no update page exists. To see the typical steps involved with a self performed field firmware update, please visit our 3Gb/s product update page at: http://eshop.macsales.com/Customized_Pages/Framework.cfm?page=sf_firmware.html

    It is important to note that the current firmware update tool requires the use of Windows XP/Vista/7. OWC is currently working on a Mac OS based update tool, but we do not have an exact availability date.

    60GB Mercury Electra 3G SSD Specifications:

    Specifications

    Controller
    SandForce 2181 Series Processor with 7% Over Provisioning
    NAND
    Asynchronous Tier 1/Grade A 2X-nm NAND Flash Storage
    Form Factor
    Standard 9.5mm 2.5"
    Interface
    SATA 3Gb/s
    Capacity1
    60GB useable capacity
    Total Flash Memory Components - 64GB
    4GB allocated to real-time data redundancy & error correction
    Formatted Capacity2
    55GiB
    RAID Support
    Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage.
    SMART Attributes
    Standard5
    Native Command Queuing
    up to 32 commands
    Manufacturer Model Number
    OWCSSDEX3G060
    RoHS Compliant
    Yes
    Format

    Physical

    Height (max)
    9.45mm (0.372″)
    Width (max)
    70.06mm (2.758″)
    Length (max)
    100.12mm (3.941″)
    Weight
    80 grams +/- 2 grams
    0.176 lbs +/- 2.82 oz

    Reliability3

    Data Reliability
    ECC Recovery: Up to 55 bytes correctable per 512-byte sector
    Security
    Chip Based Data Encryption: 256-bit & 128-bit AES-compliant
    TRIM Support
    OS Dependent
    Nonrecoverable Read Errors
    Less than 1 sector per 1016 bits read
    Warranty
    3 Year OWC Warranty
    (Standard return policy applies.)

    Performance

    Sustained
    Reads (up to)
    285MB/s
    Sustained
    Writes (up to)
    275MB/s
    Read Incompressible
    Data Rate (up to)
    208MB/s
    Write Incompressible
    Data Rate (up to)
    235MB/s
    Random 4K Read4
    Up to 60,000 IOPS
    Random 4K Write4
    Up to 60,000 IOPS
    Read Latency
    less than 0.1ms
    Write Latency
    less than 0.1ms
    Read Latency
    less than 0.1ms

    Environmental (Operating)

    Temperature (°F)
    32°F to 158°F
    Temperature (°C)
    0°C to 70°C

    Environmental (Non-Operating)

    Temperature (°F)
    -67°F to 302°F
    Temperature (°C)
    -55°C to 150°C

    Acoustics

    Idle (Typical)
    0.0 bels
    Seek (Typical)
    0.0 bels
    1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
    2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
    3. Specific application environments such as temperature and duty cycle will affect the overall reliability.
    4. Specifications provided by SandForce.
  • 60GB* OWC Mercury Electra™ 3G SSD**

    *1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.

    **OWC reserves the right to replace or upgrade to equivalent or better components.

Drive Interface

  • SATA (Serial ATA)

Port Configuration

  • FireWire 800 - (2) 9 pin powered ports
  • USB 2.0/1.1 - (1) 5 pin mini B port

Max Data Transfer Rate

  • FireWire 800 - 800Mbps (or 100MB/sec)
  • FireWire 400 - 400Mbps (or 50MB/sec)
  • USB 2.0 - 480Mbps (or 60MB/sec)
  • USB 1.1 - 12Mbps (or 1.5MB/sec)

Port/Interface Bootability

    Can I use this solution as external startup drive?
  • FireWire 800: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • FireWire 400: Supported on Macs and PC's meeting minimum requirements. - Click for more info
  • USB 2.0: Supported on Macs and PC's meeting minimum requirements. - Click for more info

Format

Macintosh System Requirements

  • Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
  • Mac OS X 10.2.8 or later. Including ‘Lion’ 10.7.x and an available USB2.0/1.1 or FireWire 800/400 port.
  • Time Machine® Compatible: Mac OS X 10.5 (version introduced) and later.

Windows System Requirements

  • Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
  • Windows 2000 or later and an available USB 2.0/1. or FireWire 800/400 port.

Linux Requirements

  • Linux compatible via supported USB and FireWire interfaces.

Related Items

Power Supply*

  • Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add on FireWire 800 PCI Card.
  • Bus Power via FireWire 400 on all models made in 2001 or later via Factory ports or any model with add on FireWire 400 PCI Card.
  • Bus Power via USB on most computers with USB 2.0 port factory stock.
  • Optional AC Adapter* (available as a separate purchase here)

  • * AC adapter not required for most applications provided computer bus supplies appropriate power needs.

External Case Dimensions

  • 3.5" (W) x 5.5" (D) x 1" (H)
  • 88.9mm x 139.7mm x 25.4mm

Enclosure Weight (no accessories)

  • 0.61lbs. (0.27kg)

Software Included

Product Manual

Operating Environment:

Temperature

  • (operating) 0°C – 70°C (32°F – 158°F)
  • (non-operating) –40°C – 85°C (–40°F – 185°F)

Relative Humidity

  • (operating) 8% - 90% RH (Non-condensing)
  • (non-operating) 5% - 95% RH (Non-condensing)

Shock

  • (operating) 1500G 0.5mS;
  • (non-operating) 1500G 0.5mS

Vibration

  • (operating) 16G (16 - 1600Hz)
  • (non-operating) 16G (16 - 1600Hz)

Warranty

OWC 3 Year Solution Warranty

The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers. OWC and NewerTech storage solutions come fully backed by an Industry-leading 48-hour turnaround time which includes complimentary Level 1 data recovery for the first year, plus additional data recovery options available throughout the warranty period, for complete peace of mind ownership confidence.

View more information about the OWC 3 Year Solution warranty

Note: Do not disassemble or otherwise open your OWC solution prior to the conclusion of OWC's 3 year Warranty period. Doing so will void the remainder of the OWC warranty.

IMPORTANT LAPTOP USER NOTE: There have been reports of system hangs in relation to hibernation mode. We recommend not using ANY program that puts your laptop into hibernation mode when using an SSD.

Normal, automatic sleep mode functions perfectly with no issues.

We also highly recommend you avoid draining your battery completely (5% or less remaining charge) to avoid being automatically switched into hibernation mode by your machine's power saving settings. If your notebook does go into hibernation mode, the machine can hang once it is plugged into an outlet or when using a charged battery as the machine comes out of hibernation mode. If you should experience this, you will need to restart your machine and any unsaved work from that session will be lost. SandForce is working on this issue and it will be addressed in a future firmware update. We will post the update on our firmware update page as soon as it becomes available.
      Manufacturer provided specifications for Other World Computing p/n MS8USSD060


Software

Prosoft Macworld 4.5 mice
Prosoft Engineering® Data Backup 3 for Mac OS X v10.2.8 or later
Backup Made Easy. Data Backup makes it easy to backup to FireWire and USB drives, network drives, CDs and even DVDs. Make schedules so you don't need to 'think' about backing up... It does it for you.
A $59.00 Value! View detailed software info, or click here to purchase software separately from solution
Carbon Copy Cloner® for Mac OS X 10.4 or later
CCC 3 features an interface designed to make the cloning and backup procedure very intuitive. In addition to general backup, CCC can also clone one hard drive to another, copying every single block or file to create an exact replica of your source hard drive. CCC's block-level copy offers the absolute best fidelity in the industry!
View detailed software info
Novastor
NovaStor NovaBACKUP® Solution for Windows®
NovaBACKUP has been helping millions of users recover from data loss and disasters for over 18 years. Feature rich, NovaBACKUP provides a powerful backup solution. Built-in support for hundreds of the most popular storage devices and a step-by-step backup and restore wizard makes NovaBACKUP extremely easy to use. Requires Windows 2000 or later.
A $49.95 Value! View detailed software info
Intech SpeedTools Utilities
Intech® SpeedTools Utilities™
Intech SpeedTools consists of a suite of utilities managed by an application which controls the launching, documentation and version control of each individual component utility, such as Disk Defrag and QuickBack. An easy-to-use installation and removal application is provided to make installation a snap, yet powerful enough to allow you to customize which utility component set you would like to create.
An $89.95 Value! View detailed software info, or click here to purchase software separately from solution
