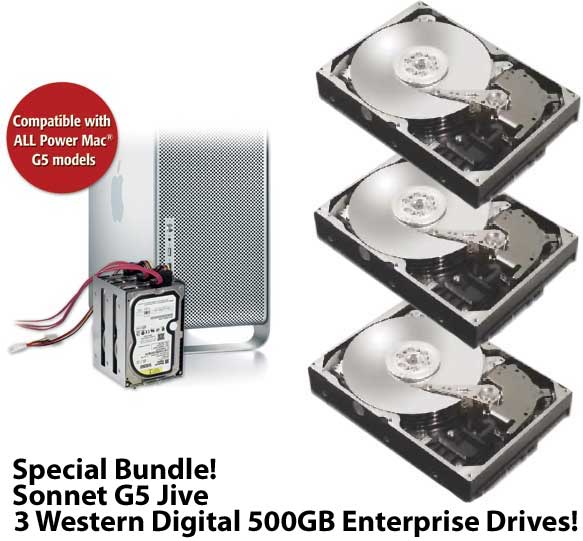

Bundle includes: Three (3) Western Digital RE3 500GB 16MB
Enterprise Class ‘Raid Edition’ 7200RPM SATA II Hard Drives and one Sonnet Technology G5 Jive Mounting Bracket for any PowerMac G5. Requires a SATA Controller card with available ports for 3 SATA I/II Hard Drives.
Click here for options available from OWC.
 WD RE3
3.5-inch Enterprise SATA Hard Drives
500 GB, 1.2 million hours MTBF, 16 MB Cache, 7200 RPM
Generation 3: Best-in-class performance, unparalleled reliability.
High performance enterprise SATA drives designed specifically for business-critical applications.
WD RE3 drives combine 16 MB cache with SATA 3 Gb/s transfer rate for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.
Key Features
- Dual processor - Twice the processing power results in a 20% performance improvement over the previous generation.
- RAFF™ - Western Digital's 4th generation RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration simultaneously, in real time for up to a 60% performance improvement in high vibration environments over the previous generation of drives.
- IntelliSeek™ - Calculates optimum seek speeds to lower power consumption, noise, and vibration in active seek modes without degrading performance.
- Multi-axis shock sensor - An additional 3rd sensor has been added to automatically detect subtle high frequency shock events in all axes enabling compensation to protect the data.
- RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
- Third generation dynamic fly height - Each read-write head's fly height is adjusted in real time for optimum reliability.
- Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
- NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
- Perpendicular Magnetic Recording (PMR) - WD RE3 drives utilize PMR technology to achieve even greater areal density.
Ideal For
servers, video surveillance, and other demanding write-intensive applications.
|
Specifications
| Performance Specifications |
| Rotational Speed |
7,200 RPM (nominal) |
| Buffer Size |
16 MB |
| Average Latency |
4.20 ms (nominal) |
| |
|
| Seek Times |
| Read Seek Time |
8.9 ms |
| Track-To-Track Seek Time |
0.6 ms (average) |
| Full Stroke Seek |
21.0 ms (average) |
| |
|
| Transfer Rates |
| Buffer To Host (Serial ATA) |
3 Gb/s (Max) |
| |
|
| Physical Specifications |
| Formatted Capacity |
500,107 MB |
| Capacity |
500 GB |
| Interface |
SATA 3 Gb/s |
| User Sectors Per Drive |
976,773,168 |
| |
|
| Physical Dimensions |
| English |
| Height |
1.028 Inches (Max) |
| Length |
5.787 Inches (Max) |
| Width |
4.00 Inches (± 0.010 inch) |
| Weight |
1.39 Pounds |
| |
|
| Metric |
| Height |
25.4 mm (Max) |
| Length |
147 mm (Max) |
| Width |
101.6 mm |
| Weight |
0.63 kg |
| |
|
| |
|
| Environmental Specifications |
| Shock |
| Operating Shock (Read) |
65G, 2 ms |
| Non-operating Shock |
300G, 2 ms |
| |
|
| Acoustics |
| Idle Mode |
25 dBA (average) |
| Seek Mode 0 |
26 dBA (average) |
| Seek Mode 3 |
29 dBA (average) |
| |
|
| Temperature (English) |
| Operating |
32° F to 140° F |
| Non-operating |
-40° F to 158° F |
| |
|
| Temperature (Metric) |
| Operating |
-0° C to 60° C |
| Non-operating |
-40° C to 70° C |
| |
|
| Humidity |
| Operating |
5-95% RH non-condensing |
| Non-operating |
5-95% RH non-condensing |
| |
|
| Altitude (English) |
| Operating |
-1,000 feet to 10,000 feet |
| Non-operating |
-1,000 feet to 40,000 feet |
| |
|
| Altitude (Metric) |
| Operating |
-305M to 3,050M |
| Non-operating |
-305M to 12,200M |
| |
|
| Vibration |
| Operating |
|
| Linear |
20-300 Hz, .75G (0 to peak) |
| Random |
0.004 g²/Hz (10 to 300 Hz) |
| |
|
| Non-Operating |
|
| Low Frequency |
0.05 g²/Hz (10 to 300 Hz) |
| High Frequency |
20-500 Hz, 4.0G (0 to peak) |
| |
|
| Electrical Specifications |
| Current Requirements |
| 12 VDC |
| Read/Write |
410 mA |
| Idle |
390 mA |
| Standby |
6 mA |
| Sleep |
6 mA |
| |
|
| 5 VDC |
| Read/Write |
675 mA |
| Idle |
600 mA |
| Standby |
180 mA |
| Sleep |
180 mA |
| |
|
| Power Dissipation |
| Read/Write |
8.3 Watts |
| Idle |
7.7 Watts |
| Standby |
1.00 Watts |
| Sleep |
1.00 Watts |
|
| |
|

|
 |
 |
|
|
|
Looking to add more drives to your perforated performer? Out of the box, your Power Mac G5 provides mounting support for only two hard drives (and one slot is already occupied), so if your needs are limited, that might work out just fine… But, what if you need more storage space than two drives can muster, and you don't want the added expense or desktop clutter of external storage? Check out the G5 Jive—G5 Jive provides secure anchorage for three additional drives and all the cables necessary to connect them to a Serial ATA host controller card—just add SATA drives to create the most cost-effective solution for adding high-performance storage capacity to a Power Mac G5. Using Mac OS X Disk Utility or third party software and multiple drives, you can create a striped (RAID 0) array to achieve great read/write performance, or a mirrored (RAID 1) array for data security. For even greater flexibility and performance, an additional drive in the Power Mac G5’s second drive bay can be included with the G5 Jive drives in a RAID 0 array—a four drive striped array can achieve data transfer rates up to 274 MB/s!
G5 Jive consists of a custom metal base plate and mounting bracket, mounting screws, three internal SATA data cables, and a custom-designed 3-drive SATA power cable. It mounts in the space at the bottom of the case beneath the optical drive, and its installation has zero impact on PCI slots and adapter cards. When combined with a high-performance Serial ATA host controller card like our acclaimed Tempo-X eSATA 4+4, G5 Jive makes it possible for you to add up to three additional internal drives now and four external drives in the future
- Power Mac G5 with PCI or PCI-X slots
- Power Mac G5 with PCI Express (PCIe) slots
|
Part Number: ENC-G5-3HD
All specifications are subject to change without notice. |
|
|
