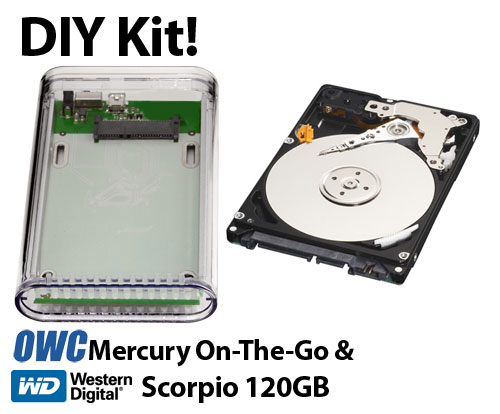

Looking to upgrade your Apple MacBook, MacBook Pro, or Mac mini with a Western Digital 120GB SATA Hard Drive? This DIY bundle is exactly what you need! Install the new hard drive into your computer, and put your old drive into the included OWC Mercury On-The-Go external case! Transfer your data back to your new drive and you're all set!
Prosoft
Engineering® Data Backup for
Mac OS X v10.2.8 or later Backup
Made Easy. Data Backup makes it easy to backup to FireWire
and USB drives, network drives, CDs and even DVDs. Make
schedules so you don't need to 'think' about backing up...
It does it for you. A $59.00 Value,
FREE! NovaStor
NovaBACKUP® Solution for Windows® NovaBACKUP has been helping millions of users recover
from data loss and disasters for over 18 years. Feature rich,
NovaBACKUP provides a powerful backup solution. Built-in
support for hundreds of the most popular storage devices
and a step-by-step backup and restore wizard makes NovaBACKUP
extremely easy to use. Requires Windows 2000 and later. A $49.95 Value,
FREE!
Intech® SpeedTools
Utilities™ Intech Hard Disk SpeedTools
consists of a suite of utilities managed by an application
which controls the launching, documentation and version
control of each individual component utility, such as Disk
Defrag and QuickBack. An easy-to-use installation and removal
application is provided to make installation a snap, yet
powerful enough to allow you to customize which utility
component set you would like to create. An $89.95 Value, FREE!
WD Scorpio delivers best-in-class performance with low power requirements comparable to much slower notebook drives. In addition, you'll get the quietest 2.5-inch drive on the market with real-time data protection technology to help keep your data safe. The Western Digital Scorpio offers a 3 year warranty.
Features:
Fast and efficient Spins at 5400 RPM for fast performance but has power specs similar to slower 4200 RPM drives. Low power consumption yields increased reliability.
Quiet
WD's exclusive WhisperDrive™ technology with SoftSeek™ algorithms make this the quietest 2.5-inch hard drive, regardless of spin speed.
Reliable
WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. Meets the highest shock tolerance specifications: 250 Gs while in operation, 900 Gs when it's idle. WD's DuraStep Ramp™ locks the heads in a secure position away from the disk to provide another layer of protection when the drive is not in use. Utilizing the most technologically advanced material available, the drive can perform a minimum of 600,000 load/unload cycles without contamination - up to twice the performance of its competitors.
Rugged
WD Scorpio's rigid stainless steel top cover withstands more than 5 pounds of pressure - nearly 1.5 times the industry average - without pinching vital internal components.
Ideal For
Portable digital devices of all kinds, including notebook computers, portable external storage, digital audio, GPS systems, and tablet PCs.
Performance Specifications
Rotational Speed
5,400 RPM (nominal)
Buffer Size
8 MB
Average Latency
5.50 ms (nominal)
Seek Times
Read Seek Time
12.0 ms
Track-To-Track Seek Time
2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA)
1,200 MB/s (Max)
Buffer To Disk
500 Mbits/s (Max)
Physical Specifications
Formatted Capacity
120,034 MB
Capacity
120 GB
Interface
SATA 150 MB/s
Physical Dimensions
English
Height
0.374 ±0.008 inch
Length
3.94 ±0.010 inch
Width
2.75 ±0.010 inch
Weight
.26 Pounds (±0.10 lb)
Metric
Height
9.5 ±0.20 mm
Length
100.2 ±0.25 mm
Width
69.85 ±0.25 mm
Weight
0.117 kg (± 0.082 kg)
Environmental Specifications
Shock
Operating Shock (Read)
300G, 2ms
Non-Operating Shock
900G, 1 ms
Acoustics
Idle Mode
24 dBA (average)
Seek Mode 0
26 dBA (average)
Temperature (English)
Operating
41° F to 140° F
Non-Operating
-40° F to 149° F
Temperature (Metric)
Operating
5° C to 60° C
Non-Operating
-40°C to 65° C
Humidity
Operating
8-90% RH non-condensing
Non-Operating
5-95% RH non-condensing
Altitude (English)
Operating
-1,000 feet to 10,000 feet
Non-Operating
-1,000 feet to 40,000 feet
Altitude (Metric)
Operating
-305M to 3.050M
Non-Operating
-305M to 12,200M
Vibration (Operating)
Linear
10-500 Hz, 1.0G (0 to peak)
Random
10-500 Hz (0.309 g2/Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write
500 mA
Idle
400 mA
Standby
50 mA
Sleep
20 mA
Power Dissipation
Read/Write
2.50 Watts
Idle
2.00 Watts
Standby
0.25 Watts
Sleep
0.10 Watts
OWC Mercury On-The-Go
USB 2.0 2.5" Portable Case Kit for SATA 2.5" Hard Drives:
Hard Drive Not Included
Install any 2.5" SATA hard drive, or upgrade the drive in your MacBook, MacBook Pro, or Mac mini Intel and use your old drive in this case!
The OWC Mercury On-The-Go USB 2.0 Portable SATA drive Kit packs an incredible punch into a 3"Wx5.5"Lx1"H 11 ounce package!
If you're looking for one of the most compatible mass storage solutions made, look no further! The OWC Mercury On-The-Go drive is all you'll need! Designed with a cross-platform compatible USB 2.0 port, the OWC Mercury On-The-Go has what it takes to work perfectly with Macintosh or PC systems.
The OWC Mercury On-The-Go USB features a high-speed USB 2.0 chipset creating one perfectly integrated storage solution.
The OWC Mercury On-The-Go keeps everything running silent while still keeping your drive cool with a built in aluminum heatsink underneath the hard drive, and passthrough cooling vents on the top of the case.
The On-The-Go External USB SATA Case kit is ready to accept your own 2.5" SATA Hard Drive! Why not upgrade your PowerBook's internal drive and put your old drive in an external case? This solution will give you an excellent transportable storage device, or a backup option that you may have not had!
Product Specifications:
Bus Interface:
USB 2.0 / 1.1 Backwards compatible 5 pin mini "A" port.
Chipset:
JMicron 20339 USB 2.0
Max Data Transfer Rate:
480 Mbps (or 60MB/sec) - USB 2.0
System Requirements:
USB 2.0:
Macintosh: Macintosh with USB interface, either built in or via 3rd party card. USB 2.0 drivers required for use with Mac OS X, USB 2.0 not supported on any other Macintosh OS. Mac OS 8.6 and above for use with USB 1.1. USB 2.0 is fully backwards compatible with USB 1.1.
PC: PC with USB interface and Windows 98 or other OS with USB support. USB 2.0 drivers required for USB 2.0 use. Check with your OS manufacturer for the availabilty of USB 2.0 drivers for your system, and if your USB card supports USB 2.0. USB 2.0 is fully backwards compatible with USB 1.1.
Power Supply
Bus Power via USB on all models with USB 2.0 port factory stock, or any system via add-on USB 1.1 or USB 2.0 PCI Card.
Use of an AC Adapter is optional (and not included), units are designed for Bus Power and do not require the use of external power source.
External Case Dimensions:
3.5" (W) x 5.5" (D) x 1" (H)
Total Shipping Weight:
Less than 2.5Lbs.
Operating Environment:
Temperature:
Dependant on mechanism installed
Relative humidity:
Dependant on mechanism installed
Vibration:
Dependant on mechanism installed
MTBF:
Dependant on mechanism installed
Warranty:
1 year
Rear View:
Kit Contents:
Bottom Heatsink View:
This OWC Mercury On-The-Go SATA USB 2.0 Case Kit Includes:
OWC Mercury On-The-Go Pro USB 2.0 storage solution for SATA 2.5" Hard Drives
High Quality Double Shielded USB 2.0 (5 pin mini A - B) certified connecting cable
