Description: Ships: Price:
GearTANK 4 bay miniSAS JBOD Storage with Infiniband cable. Designed for enterprise users that require stable, high performance and reliable storage devices. Supports hot-swap of hard drives. 2 Year Raidon Warranty. (RD-ST5650-4S-U5-InfiCbl) Same Day $339.99
Add to Your Basket:

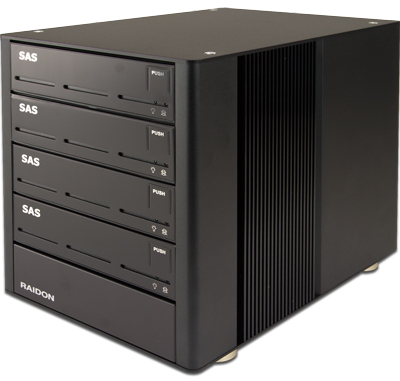

Raidon GearTANK
0GB 4-bay mini-SAS Drive Enclosure
Mac | PC | mini-SAS | eSATA | Supports Hot-Swap

Mac PC

The Raidon GearTANK series is designed for simple, multi-drive data storage, making it an affordable option for your high-capacity storage needs. It can function with all the drives appearing independently or, with the addition of a controller card, as an inexpensive RAID unit.

ST5650-4S-U5 system utilizes SAS (Serial Attached SCSI) technology to enable simultaneous support of SAS and SATA hard drives. With this unit, you will be able to benefit from the high system performance of SAS hard drives; or acquire cost-effective storage when using SATA hard drives. The systems are also equipped with a removable hard drive tray that is compatible with many other Raidon product series that will bring convenience and efficiency when data sharing or interchangeability is required.

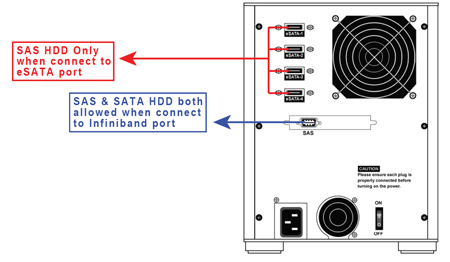

Supports SAS & SATA HDDs
Using SAS hard disk can provide higher usability and better performance of R/W; it is quite suitable for on-line data backup. Using SATA hard disk can fulfill capacity expansion but with low cost, it is suitable for off-line data backup.
Supports Hot-Swapping
Supports Hot-Swap function, you don't need to shut down the computer or server when the hard disk be replaced. If you use the RAIDON newest swappable tray module, you can apply to other STARDOM products to achieve data sharing purpose.
RAID function upgradeable
When using SATA hard disk, once the 4 Bays storage collocates with an RAID device (ex: RAIDON SL5650-4S-L4D), it will become an 8 Bays RAID subsystem. When using SAS hard disk, you can connect with the SAS HBA card which build up the RAID controller inside, the solution will become an RAID subsystem too.

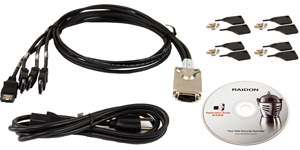

Package Includes
  • (1) GearTANK ST5650-4S-U5 Enclosure
  • (1) Four connection eSATA to InfiniBand cable
  • (1) Accessory bag including keys & screws
  • (1) Power Cable
  • (1) User Manual (on CD)
Gallery
Specifications
Manufacturer Part Number
  • ST5650-4S-U5

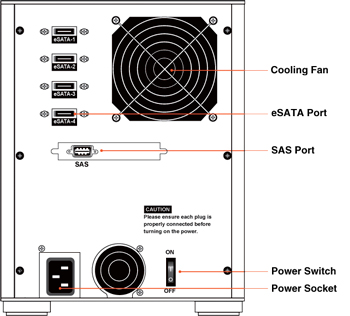

Host Interface / Ports
  • 1x Mini SAS port (36pin)
  • 4x eSATA ports
Compatible Drives
  • 3.5" SATA Revision 2 - 3.0Gb/s hard drive
  • 3.5" SATA Revision 1 - 1.5Gb/s hard drive
    Supports large volumes in excess of 2TB
Mechanisms Supported
  • Supports four identical 3.5" SATA (Serial ATA) or SAS hard drives up to 2.0TB each.
Drive Rotation Speed
  • Varies with drive mechanisms installed
Drive Cache Size
  • Varies with drive mechanisms installed
Data Transfer Rate
  • mini-SAS up to 6.0Gbps (600MB/s)
  • eSATA up to 3.0Gbps (300MB/s)
OS System Requirements
  • OS Independent
RAID Levels Supported
  • JBOD (supports higher levels with the addition of a controller card)
Cooling
  • (1) 8cm Fan
Power Supply
  • Input: 100~240V
  • Output: 200W
Certifications
  • CE, FCC
Warranty 2 Year Raidon/Stardom Warranty
Physical
Temperature Operating: 5°C ~ 40°C
Non-Operating: -20°C ~ 70°C
Humidity

Operating: 20%RH ~ 80%RH
Non-Operating: 10%RH ~ 90%RH

Dimensions 177W x 270D x 231H
Weight 6.2 kg
