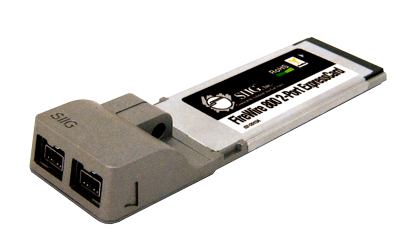

2-Port FireWire 800 ExpressCard/34 Adapter
Plug & Play | Hot Swappable
This card adds:
- Two External FireWire 800 Ports (up to 2 devices)
Requires:
- Available ExpressCard/34 Slot
See Specifiactions below for system and/or OS compatibility information |
Add two additional FireWire 800 ports to your ExpressCard/34 equipped MacBook Pro or laptop PC. |
 |
|
Features
- Easily add FireWire 800 connectivity to ExpressCard equipped computers
- Provides two FireWire 800 port (9-pin) & supports up to 63 devices
- Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems, & other audio/video devices
- Works in either 34mm or 54mm ExpressCard slot
- Supports isochronous and asynchronous data transfer modes
- Hot-swapping allows you to connect/detach devices without first turning your system off
|
|
|
|

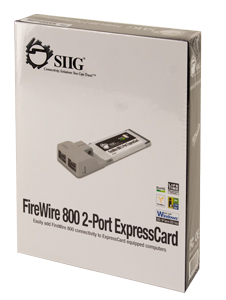

| Includes |
- FireWire 800 2-Port ExpressCard/34
- Driver CD
- User's manual
|
 |
|

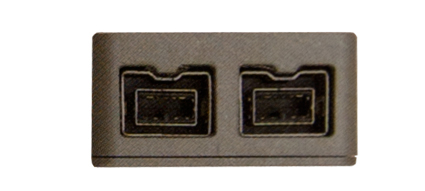

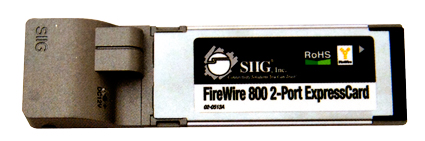

| Gallery |
 |
|
 |
|
| Specifications |
| Ports |
- 2 External FireWire 800 (IEEE 1394B)
|
| Connections |
|
| Form Factor |
|
| Bus Type |
|
| Controller / Chipset |
- Texas Instruments Ti XIO2213BZAY
|
| Data Transfer Rates |
- FireWire 800 - 800Mbps (or 100MB/sec)
- FireWire 400 - 400Mbps (or 50MB/sec)(1)
|
| Operating System Support |
- Mac OS X 10.4.x or later
- Windows® 7 (32-/64-bit)
- Windows® Vista (32-/64-bit)
- Windows® XP (32-/64-bit)
- Windows® Server 2003 & 2008 (32-/64-bit)
- Windows® 2000
|
| Hardware Requirements |
- MacBook Pro with an available ExpressCard/34 slot
- PC notebook with an available ExpressCard/34 slot
|
| Voltage |
- +3.3V ~+3.0V
(±5% wide range power supply)
|
| Agency Compliances |
|
| Notes |
- FW400 usage requires a FW800 to FW400 adapter cable sold separately.
|
| Warranty |
|
| Physical |
|
| Dimensions |
- 4.8125" x 1.375" x 0.6875"
- 34mm ExpressCard Compliant
|
| Weight |
|
| Operating Temperature (Hardware Environment) |
|
| Relative Humidity |
- Operating: 20% to 80%
- Non-Operating: 15% to 90%
|
|
| Click here to get your Model Identifier number |
| This is compatible with the following laptops: |
 |
Machines Have Model Identifier MacBookPro8,3
MacBook Pro (17-inch Early 2011, 2.2GHz, 2.3GHz)
(February, 2011)
|
 |
|
Machines Have Model Identifier MacBookPro6,1
MacBook Pro (17-inch Mid 2010, 2.53GHz, 2.66GHz, 2.8GHz)
(April, 2010)
|
|
|
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch Mid 2009, 2.8GHz, 3.06GHz)
(June, 2009)
|
|
|
Machines Have Model Identifier MacBookPro5,2
MacBook Pro (17-inch Early 2009, 2.66GHz, 2.93GHz)
(January, 2009)
|
|
 |
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (17-inch Early 2008, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (17-inch Mid/Late 2007, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
|
Machines Have Model Identifier MacBookPro2,1
MacBook Pro (17-inch Core 2 Duo, 2.33GHz)
(October, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,2
MacBook Pro (17-inch, 2.16GHz)
(April, 2006)
|
|
 |
Machines Have Model Identifier MacBookPro5,1
MacBook Pro (15-inch Late 2008, 2.4GHz, 2.53GHz, 2.66GHz 2.8GHz)
(October, 2008)
|
|
 |
Machines Have Model Identifier MacBookPro4,1
MacBook Pro (15-inch Early 2008, 2.4GHz, 2.5GHz, 2.6GHz)
(February, 2008)
|
|
|
Machines Have Model Identifier MacBookPro3,1
MacBook Pro (15-inch Mid/Late 2007, 2.2GHz, 2.4GHz, 2.6GHz)
(June, 2007)
|
|
|
Machines Have Model Identifier MacBookPro2,2
MacBook Pro (15-inch Core 2 Duo, 2.16GHz, 2.33GHz)
(October, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch Glossy, 2.0GHz, 2.16GHz)
(May, 2006)
|
|
|
Machines Have Model Identifier MacBookPro1,1
MacBook Pro (15-inch, 1.83GHz, 2.0GHz, 2.16GHz)
(January, 2006)
|
|
 |
PC/Wintel Laptops running Windows XP, Vista, or Windows 7
with available ExpressCard/34 slot
|
|
|
|
