| Transducer Type |
Dynamic |
|

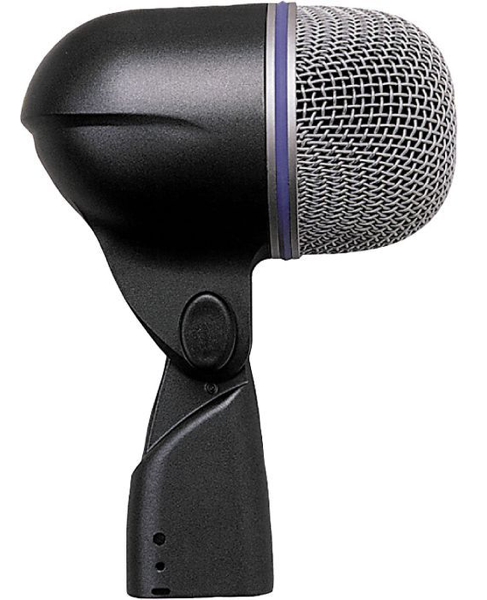

Designed specifically for kick drums and bass instruments, the Shure Beta 52A is a high output dynamic microphone that delivers the attack and punch that you need for your mix. The Beta 52A delivers studio quality sound and can handle extremely high sound pressure levels.
The Beta 52A features a modified supercardioid pattern throughout its frequency range to insure high gain-before-feedback and excellent rejection of unwanted sound. A built in dynamic locking stand adapter with an integral XLR connector simplifies installation, particularly if the microphone is to be placed inside a kick drum. The stand adapter keeps the microphone position fixed and resists slipping, even when subjected to sharp blows and strong vibrations. A hardened steel mesh grille protects the Beta 52A from the abuse and wear associated with touring.
|

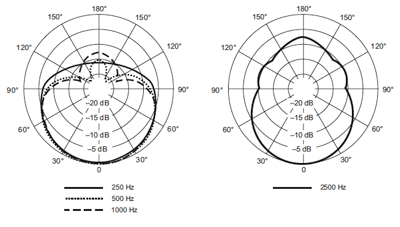

| Polar pattern |
Supercardioid |

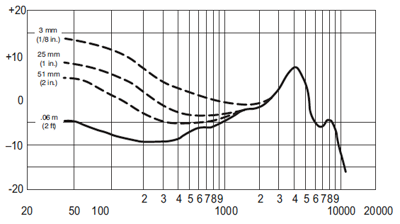

| Frequency response |
20 to 10,000 Hz |
| Impedance |
150 ohms (45 ohms actual) for connection to microphone inputs rated low Z |
| Output Level (at 1,000 Hz) |
Open Circuit Voltage: -64 dBV/Pa* (0.6 mV)*1 Pa = 94 dB SPL |
| Phasing |
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Maximum SPL |
174 dB at 1000 Hz (calculated) |
| Connector |
Three-pin professional audio connector (male XLR type) |
| Adjustable, Locking Stand Adapter |
Integral, dynamic locking, adjustable through 180 degrees, with standard 5/8"-27 thread |
| Weight |
605g (21.6oz.) |
