| Transducer Type |
Condenser |
|

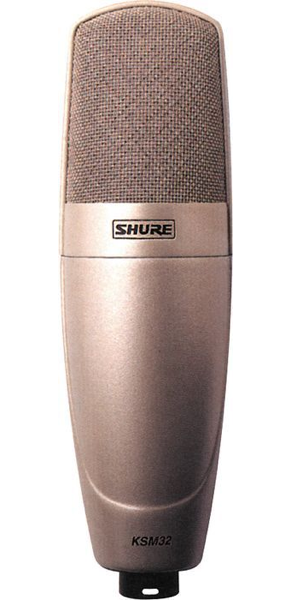

An embossed single-diaphragm, side-address, cardioid condenser microphone for highly critical studio recording and live sound productions. The Shure KSM32 offers an extended frequency response for an open, natural sounding reproduction of the original sound source.
Performance Characteristics
- Extended frequency response
- Very low self-noise
- Exceptional low-frequency reproduction
- High output level
- High input SPL capability
- No cross-over distortion
- Extremely uniform polar response
- Superior common mode rejection and suppression of radio frequency interference
|

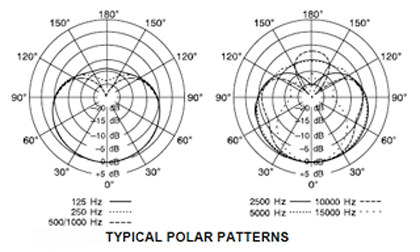

| Polar pattern |
Cardioid |

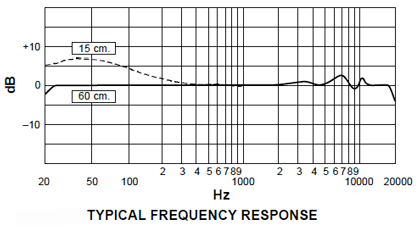

| Frequency response |
20 to 20,000 Hz |
| Impedance |
150 ohms |
| Attenuation Switch |
0 or -15 dB attenuation |
| Low Frequency response switch |
flat; -6 db/octave below 115 Hz;
-18 dB/octave below 80 Hz |
| Phantom Power |
48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3 |
| Current Drain |
4.65 mA typical at 48 Vdc |
| Common Mode Rejection |
> 50 dB, 20 Hz to 20 kHz |
| Polarity |
Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3 |
| Sensitivity |
-36 dBV/Pa (16 mV) |
| Self-noise |
13dB |
| Maximum SPL at 1000 Hz |
139 (154) dB
133 (148) dB |
| Output Clipping Level* |
2500 ohm load (Attenuator on): +9 dBV
1000 ohm load (Attenuator on): +3 dBV |
| Dynamic Range |
2500 ohm load: 126 dB
1000 ohm load: 119 dB |
| Signal to Noise ratio** |
81 dB |
| Total Harmonic Distortion (THD), 2500 ohm load |
<0.08% for a 120 dB equivalent SPL input. |
| Dimensions and Weight |
55.9 mm (2.20 in.) maximum body diameter, 187 mm (7.37 in.) long |
| Weight |
490 grams (17.3 oz.) |

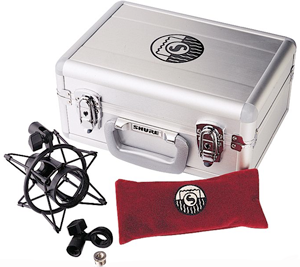

Includes:
