| Specifications |
|
| Cartridge Type |
Condenser (externally biased) |

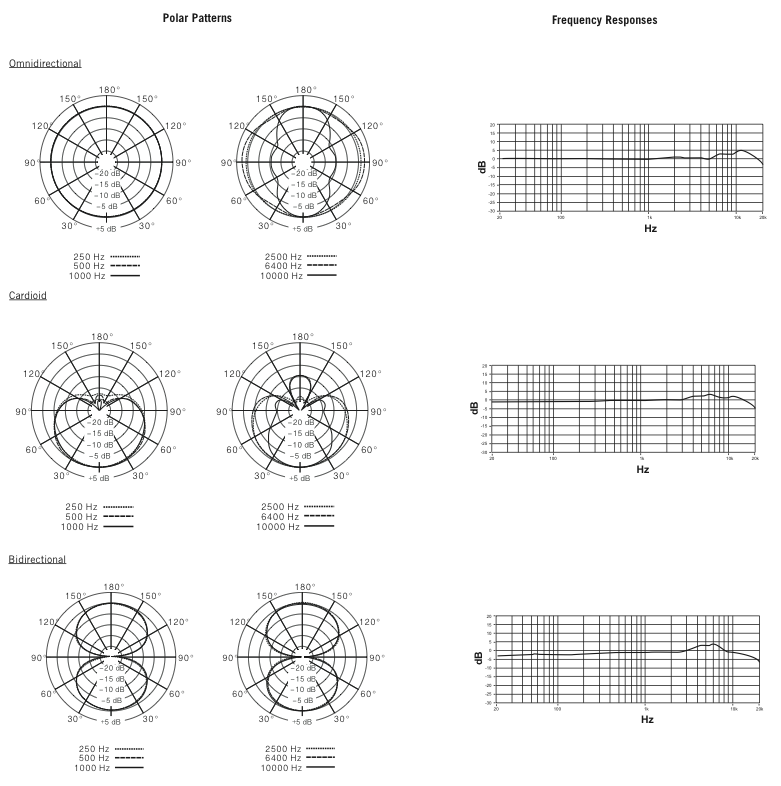

| Polar Pattern |
Cardioid, Omnidirectional, Bidirectional |
| Frequency Response |
20 to 20,000 Hz |
| Output Impedance |
50 ohms |
| Attenuator Switch |
15 dB |
| Low-Frequency Filter Switch |
Flat, –6 dB/octave below 115 Hz, or –18 dB/octave below 80 H |
| Power Requirements |
11–52 V DC phantom power (IEC-61938) 5.8 mA, maximum |
| Common Mode Rejection (10 to 100,000 Hz) |
> 50 dB |
| Common Mode Rejection (20 Hz to 20 kHz) |
> 50 dB |
| Polarity |
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Net Weight |
492 g (17.4 oz.) |
| Connector |
Three-pin professional audio (XLR). male, balanced |
| Warranty |
2 Year Manufacturer Warranty |
| Cardioid |
|
| Sensitivity (open circuitvoltage, @ 1 kHz, typical) |
–31 dBV/Pa† (29.8 mV) |
| Self Noise (equivalent SPL,A- weighted, typical) |
4 dB SPL-A |
| Preamplifier Distortion (at1 kHz, 94 dB SPL) |
<0.00 1% |
| Signal-to-Noise Ratio |
90 db |
| Clipping Level (20 Hz to 20 kHz, 1% THD) |
2500 Ω load: 9dBv
1000 Ω load: 6dBv |
| Dynamic Range (@ 1kHz) |
2500 Ω load: 130 dB
1000 Ω load: 127 dB |
| Maximum SPL (1 kHz at1% THD) |
PAD ON/2500 Ω load: 150 dB SPL
PAD ON/1000 Ω load: 147 dB SPL
PAD OFF/2500 Ω load: 134 dB SPL
PAD OFF/1000 Ω load: 131 dB SPL |
| Omnidirectional |
|
| Sensitivity (open circuitvoltage, @ 1 kHz, typical) |
–37 dBV/Pa† (14.8 mV) |
| Self Noise (equivalent SPL,A- weighted, typical) |
6 dB SPL-A |
| Preamplifier Distortion (at1 kHz, 94 dB SPL) |
<0.00 1% |
| Signal-to-Noise Ratio |
88 db |
| Clipping Level (20 Hz to 20 kHz, 1% THD) |
2500 Ω load: 9dBv
1000 Ω load: 6dBv |
| Dynamic Range (@ 1kHz) |
2500 Ω load: 134 dB
1000 Ω load: 131 dB |
| Maximum SPL (1 kHz at1% THD) |
PAD ON/2500 Ω load: 152 dB SPL
PAD ON/1000 Ω load: 149 dB SPL
PAD OFF/2500 Ω load: 140 dB SPL
PAD OFF/1000 Ω load: 137 dB SPL |
| Bidirectional |
|
| Sensitivity (open circuitvoltage, @ 1 kHz, typical) |
–36 dBV/Pa† (16.8 mV) |
| Self Noise (equivalent SPL,A- weighted, typical) |
7.5 dB SPL-A |
| Preamplifier Distortion (at1 kHz, 94 dB SPL) |
<0.00 1% |
| Signal-to-Noise Ratio |
86.5 db |
| Clipping Level (20 Hz to 20 kHz, 1% THD) |
2500 Ω load: 9dBv
1000 Ω load: 6dBv |
| Dynamic Range (@ 1kHz) |
2500 Ω load: 131 dB
1000 Ω load: 128 dB |
| Maximum SPL (1 kHz at1% THD) |
PAD ON/2500 Ω load: 151 dB SPL
PAD ON/1000 Ω load: 148 dB SPL
PAD OFF/2500 Ω load: 139 dB SPL
PAD OFF/1000 Ω load: 136 dB SPL |
