| Transducer Type |
Condenser |
|

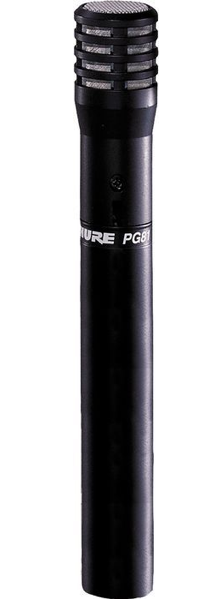

Shure's PG81-XLR is an ideal condenser microphone for acoustic instruments due to it's flat frequency response and consistent sensitivity.
PG Microphones are the pro-quality, versatile
introduction to Shure engineering excellence,
featuring cardioid polar patterns that reduce
background noise and feedback. With a lineup
that includes XLR and USB side-address
condenser models, PG microphones are built
to withstand the demands of everyday use,
while delivering pro-caliber sound that’s ideal
for rehearsal, performance and recording.
| Signal-to-Noise Ratio |
68 dB (IEC 651)* at 94 dB SPL |
| Power |
- Phantom Power
- Supply Voltage: 11 to 52 Vdc
- Current Drain: 2.0 mA max at 52 Vdc
- Maximum Exteral Voltage Applied to Pins 2 and 3 with respect to Pin 1: +52 Vdc
- Reverse polarity protected to: 100 Vdc
- Battery Power Recommended: 1.5 V alkaline AA size (NEDA 15A)
- Life: up to 10,000 hours
|
| Dynamic Range (maximum SPL, 2k ohm load, to A-weighted noise level) |
111 dB (phantom); 107 dB (battery) |
|

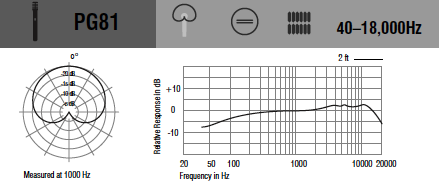

| Polar pattern |
Cardioid |
| Frequency response |
40 to 18,000 Hz |
| Polarity |
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector |
| Output Impedance (at 1000 Hz) |
600 ohms |
| Sensitivity (at 1000 Hz) |
-48 dBV/Pa, (1.6 mV), 1 Pascal=94 dB SPL |
| Electromagnetic Hum Sensitivity |
-7 dB equivalent SPL in a 1 millioersted field (60 Hz) |
| Recommended Input Load Impedance |
800 ohms minimum |
| Output Clipping Level (1 kHz, 1 % THD) |
- 2000 ohm load
- -13 dBV (0.22 V) (phantom)
- -17 dBV (0.14 V) (battery)
|
| Maximum SPL |
2000 ohm load: 131 dB (phantom), 127 dB (battery) |
| Self-Noise (Equivalent SPL) |
20 dB typical, A-weighted |
| Switch |
Built-in On/Off switch |
| Connector |
Three-pin professional audio connector (male XLR type) |
| Weight |
250g (8.8 oz.) |
