Description: Ships: Price:
Sonnet FireWire 800 ExpressCard/34 - Adds FireWire 800 Ports for the MacBook Pro 15" / 17", PC Laptop/Notebook with Express34 slot. 1 Year Sonnet Warranty. (FW800-E34) Same Day $97.99
Add to Your Basket:


Sonnet

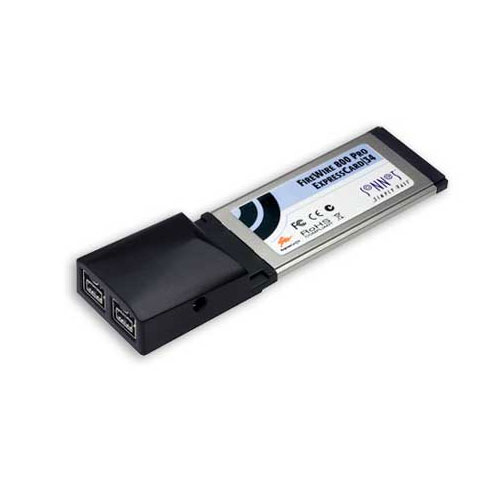

2-Port FireWire 800 ExpressCard/34 Adapter
Supports Hot-Swap & Bus Power | Up to 63 FireWire Devices

This card adds:

  • Two External FireWire 800 ports

Requires:

  • Available ExpressCard/34 Slot

See Specifiactions below for system and/or OS compatibility information

  • Simple way to add high-speed FireWire ports to any compatible notebook computer
  • Provides support for the fastest FireWire multimedia peripherals
  • Works in any ExpressCard slot
  • Plug-and-play simplicity
  • Supports hot-swappable device connection. Plug in and disconnect peripherals without shutting off your computer
  • Compatible with Sonnet's Echo ExpressCard/34 Thunderbolt Adapter
  • RoHS compliant

Add FireWire 800 Connections to Your MacBook Pro or PC Notebook Computer

Sonnet's FireWire 800 Pro ExpressCard/34 provides you the ability to connect the fastest FireWire® multimedia peripherals to your MacBook Pro or Windows notebook computer with an ExpressCard slot. Do you work with files stored on external hard drives? You may not be getting the maximum performance from them. Many drive enclosures include a FireWire 800 (1394b) interface, which provides up to twice the data transfer speeds and bandwidth of FireWire 400 (1394a), both critical attributes when working with multimedia applications. Don't settle for a slower connection and less than maximum performance; get a Sonnet FireWire 800 Pro ExpressCard/34 adapter to add the FireWire 800 ports you need!

Sonnet's FireWire 800 Pro ExpressCard/34 features two 9-pin FireWire 800 ports to satisfy the high-bandwidth demands of video and pro audio applications. Offering plug and play simplicity(1), this card works in ExpressCard/34 and ExpressCard/54 slots, supports all FireWire 800 and FireWire 400(2) peripherals, and features hot-pluggable and hot-swappable device connection with automatic device configuration.

Includes
  • FireWire 800 Pro ExpressCard/34
  • Quick start guide

Specifications
Ports
  • 2 External FireWire 800 (IEEE 1394B)
Connections
  • External - Up to 63 (data only)
Bus Specifications
  • PCI Express
Form Factor
  • ExpressCard/34
Transfer Rates
  • FireWire 800 - 800Mbps (or 100MB/sec)
    FireWire 400 - 400Mbps (or 50MB/sec)(2)
Chipset
  • Texas Instruments
Operating System Support
  • Mac OS X Version 10.5+
  • Windows 7
  • Windows Vista
  • Windows XP SP2
Hardware Requirements
  • MacBook Pro(3) with an available ExpressCard/34 slot
  • PC notebook with an available ExpressCard/34 slot
External Connectivity
  • x2 FireWire 800
Internal Connectivity
  • none
Hot Plug Support
  • Yes
Hot Swap Support
  • Yes
Agency Approvals & Compliance
  • RoHS
  • CE
  • FCC
Notes
  1. Windows XP and Vista require installation of driver for FireWire 800 support.
  2. FW400 usage requires a FW800 to FW400 adapter cable sold separately.
  3. Sonnet's FireWire 800 Pro (blue label) is compatible with all MacBook Pro models (with ExpressCard/34 slots). Sonnet's discontinued FireWire 800 ExpressCard/34 (orange label) is not compatible with 15" MacBook Pro, Model Identifier 2, 2; or 15"/17" MacBook Pro Model Identifier 4,1. Compatible with all other models. Check System Profiler (Apple Menu->About This Mac->More Info) for Model Identifier.
  4. May also be used in external Thunderbolt to ExpressCard/34 adapters.
Warranty
Physical
Dimensions
  • 113mm(L) x 34mm(W) x 4mm(H)
Weight
  • 0.45 lbs

Click here to get your Model Identifier number
This is compatible with the following laptops:

Machines Have Model Identifier MacBookPro8,3

MacBook Pro (17-inch Early 2011, 2.2GHz, 2.3GHz)
(February, 2011)

Machines Have Model Identifier MacBookPro6,1

MacBook Pro (17-inch Mid 2010, 2.53GHz, 2.66GHz, 2.8GHz)
(April, 2010)

Machines Have Model Identifier MacBookPro5,2

MacBook Pro (17-inch Mid 2009, 2.8GHz, 3.06GHz)
(June, 2009)

Machines Have Model Identifier MacBookPro5,2

MacBook Pro (17-inch Early 2009, 2.66GHz, 2.93GHz)
(January, 2009)

Machines Have Model Identifier MacBookPro4,1

MacBook Pro (17-inch Early 2008, 2.5GHz, 2.6GHz)
(February, 2008)

Machines Have Model Identifier MacBookPro3,1

MacBook Pro (17-inch Mid/Late 2007, 2.4GHz, 2.6GHz)
(June, 2007)

Machines Have Model Identifier MacBookPro2,1

MacBook Pro (17-inch Core 2 Duo, 2.33GHz)
(October, 2006)

Machines Have Model Identifier MacBookPro1,2

MacBook Pro (17-inch, 2.16GHz)
(April, 2006)

Machines Have Model Identifier MacBookPro5,1

MacBook Pro (15-inch Late 2008, 2.4GHz, 2.53GHz, 2.66GHz 2.8GHz)
(October, 2008)

Machines Have Model Identifier MacBookPro4,1

MacBook Pro (15-inch Early 2008, 2.4GHz, 2.5GHz, 2.6GHz)
(February, 2008)

Machines Have Model Identifier MacBookPro3,1

MacBook Pro (15-inch Mid/Late 2007, 2.2GHz, 2.4GHz, 2.6GHz)
(June, 2007)

Machines Have Model Identifier MacBookPro2,2

MacBook Pro (15-inch Core 2 Duo, 2.16GHz, 2.33GHz)
(October, 2006)

Machines Have Model Identifier MacBookPro1,1

MacBook Pro (15-inch Glossy, 2.0GHz, 2.16GHz)
(May, 2006)

Machines Have Model Identifier MacBookPro1,1

MacBook Pro (15-inch, 1.83GHz, 2.0GHz, 2.16GHz)
(January, 2006)

PC/Wintel Laptops running Windows XP, Vista, or Windows 7
with available ExpressCard/34 slot
