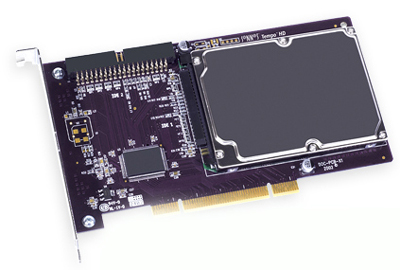

Ultra ATA/133 Hard Drive Controller
RAID 0, 1, 5, 10, & JBOD | Up to 3 SATA devices

This card adds:
- One (1) Internal ATA/133 Port (up to 2 devices)
- One (1) 2.5" parallel ATA drive on card
(2.5" HDD not included)
Requires:
- Available PCI / PCI-X Slot
See Specifiactions below for system and/or OS compatibility information |
When you need a trouble-free way to add more storage space to your system, choose a Tempo HD—it's the internal hard drive that installs in seconds. |
 |
|
Is your computer's hard drive running out of storage space? Does the idea of opening your computer to upgrade it scare you? It's easier than you think! With the Tempo HD from Sonnet Technologies, you can add more storage in an instant. Just attach a 2.5" parallel ATA drive, insert it into any PCI slot, and your installation is complete—it's that simple. Finally, you'll have the room you need without the installation hassles. Adding a hard drive has never been this easy!
Tempo HD enables you to put that old (or new) 2.5" notebook drive back to work. And you can connect two 3.5" parallel ATA drives to the additional ATA/133 port to expand your storage capacity. |
Key Benefits
- ATA/133 drive controller card with on-board storage capability
- Easy installation
- Add up to one 2.5" and two 3.5" interal ATA drives
- Maximum transfer rate of 133 MB/s
|
|
| Includes |
- Tempo HD PCI card
- Four (4) hard drive mounting screws
- Software CD
|
|
|
| Gallery |
 |
The Tempo HD installs easily into a PCI slot. (The location of your computer's PCI slots may vary from this illustration.)
Recently upgraded your notebook? Put the old drive to good use. With Tempo HD its easy to add your old drive to the Tempo HD card and utilize the drive in your Power Mac or Windows desktop computer. |
 |
|
| Specifications |
| Ports |
- 2 Internal IDE (1 standard, 1 for onboard 2.5" drive)
|
| Connections |
|
| Bus Specifications |
- PCI 32bit@33/66/100/133 MHz
|
| Form Factor |
|
| RAID |
|
| Operating System Support |
- Mac OS x 10.3.x through 10.5.8
- Windows® Vista, Server 2003, XP SP2
|
| External Connectivity |
|
| Internal Connectivity |
|
| Electrical |
- PCI+3.3V : 0.9A
- Power : 3W
|
| Notes |
- *Not bootable - usable for storage only*
|
| Warranty |
|
| Physical |
|
| Dimensions |
|
| Weight |
|
| Operating Temperature (Hardware Environment) |
|
| Operating Temperature (Storage Environment) |
|
| Relative Humidity |
|
|
| Click here to get your Model Identifier number |
| This is compatible with the following models: |
 |
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (Early 2005, 2x 2.3GHz, 2x 2.7GHz)
(April, 2005)
|
 |
|
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (Early 2005)
(April, 2005)
|
|
|
Machines Have Model Identifier PowerMac9,1
Power Mac G5 (Late 2004)
(October, 2004)
|
|
|
Machines Have Model Identifier PowerMac7,3
Power Mac G5 (June 2004)
(June, 2004)
|
|
|
Machines Have Model Identifier PowerMac7,2
Power Mac G5 (1.6GHz, 1.8GHz, 2x 1.8GHz, 2x 2.0GHz)
(June, 2003)
|
|
 |
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002 ED, 867MHz)
(August, 2002)
|
|
|
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver 2002, 733MHz, 800MHz, 933MHz, 2x 1.0GHz)
(January, 2002)
|
|
|
Machines Have Model Identifier PowerMac3,5
Power Mac G4 (QuickSilver, 733MHz, 867MHz, 2x 800MHz)
(July, 2001)
|
|
 |
Machines Have Model Identifier PowerMac3,4
Power Mac G4 (Digital Audio, 466MHz, 533MHz, 2x 533MHz, 667MHz, 733MHz)
(January, 2001)
|
|
|
Machines Have Model Identifier PowerMac3,3
Power Mac G4 (Gigabit Ethernet, 400GHz, 2x 450MHz, 2x 500GHz)
(July, 2000)
|
|
|
Machines Have Model Identifier PowerMac3,1
Power Mac G4 (AGP Graphics, 350MHz, 400MHz, 450GHz, 500GHz)
(September, 1999)
|
|
|
Machines Have Model Identifier PowerMac1,2
Power Mac G4 (PCI Graphics, 350MHz, 400MHz)
(August, 1999)
|
|
 |
PC running Windows 2000/XP/2003/Vista
and available PCI expansion slot
|
|
|
|
