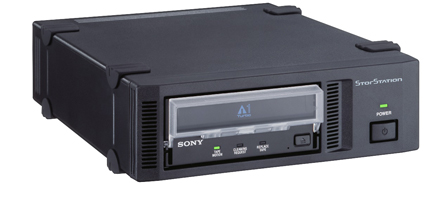

AIT-1 Turbo External USB/iLink
Tape Drive
(AIT-e100-UL)

Give your backup a boost with the enhanced AIT Turbo drives providing greater flexibility, performance and value. AIT Turbo drives offer an entry level, as well as multiple migration drive options with enhanced capacity, performance and reliability for DDS, DAT72 and VXA2 users.

The concept is simple, more capacity and performance for less.

Key Features

• Capacity: Up to 40GB⁵ native storage capacity, or 104GB⁵ compressed (2.6:1) in a compact form-factor - store more information in less space.
• Performance: Sustained data transfer rate of 6 MB/s native provides high performance backups - up to 21.6GB⁵/hour native.
• Compression: Adaptive Lossless Data Compression (ALDC) provides greater data compression efficiency - offers average compression of 2.6:1.
• Reduced Periodic Maintenance: Super Head Cleaner™ provides an automated cleaning solution - increases head life and reduces the need for periodic cleaning.
• Reliability: Helical scan recording writes the tape in one pass with a slow tape speed and allows higher recording densities than linear recording - reduces wear-and-tear on the data cartridge and drive, increasing reliability, head life, and storage capacity within a compact form-factor.

Specifications

General

• Recommended Use : SMB
• Tape Capacity : 40GB⁵ native
• Native Capacity : 40GB⁵
• Configuration : Internal Drive
• Compressed Capacity : 104GB^{5, 3}

Hardware

• Interfaces : USB 2.0, IEEE 1394

Memory

• Buffer Memory : 12MB

Operating Conditions

• Sustained Transfer Rate : 6 Mbps (native)
• Burst Transfer Rate : Synchronous: 400Mbps (max)
• Average Head Life : 50,000 tape contact hours (typical)
• Average Media Uses : 30,000 passes (typical)
• Cartridge Access Time : 35 seconds (with MIC)
• MTBF - Drive : 300,000 hours at 100% duty cycle
• Error Rate : Less than 10^-17 bits
• Operating Temperature : 50°F to 95°F (10°C to 35°C)
• Operating Humidity : 30% to 80% (non-condensing)
• Storage Temperature : -40°F to 158°F (-40°C to 70°C)
• Transfer Rate : 6 MB/s

Power

• Power Requirements : AC 100-200/220-240V
• Power Consumption : 20W (average)

Service and Warranty Information

• Limited Warranty : 3 years with 3-year Advance Exchange

Weights and Measurements

• Weight (Approx.) : 5lbs 5oz (2.4kg)
• Dimensions (Approx.) : 7.80 x 2.54 x 9.69" (198 x 64.5 x 246mm)

1. AIT-1 Turbo drives are backward compatible with AIT-E media.
2. Specifications and product plans are subject to change without notice.
3. Compressed capacities are based on 2.6:1 compression ratio using ALDC. Actual capacity may vary.
4. MTBF, head life, and media use specifications are averages based on normal environmental conditions. Actual experience may vary.
5.GB means one billion bytes.
