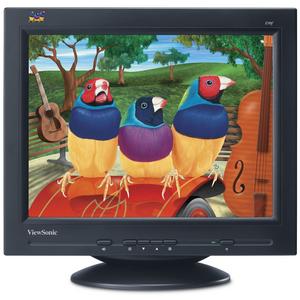

ViewSonic 19" CRT PerfectFlat Monitor - Black (VWSE90FB)
|
24-48 hrs
|
$219.00 |
Perfectly
suited to your desktop.
The ViewSonic® E90fB 19" (18.0" viewable) CRT monitor offers QUALITY,
PERFORMANCE AND RELIABILITY designed to fit your budget. The PerfectFlat® screen
ensures you'll view distortion-free,edge-to-edge images with minimized reflection
and glare. The ultrafine 0.20mm horizontal dot pitch delivers precise picture
definition when viewing everyday applications. Adjust your screen with the OnView® controls
and secure them with the OSD lock function to ensure OPTIMUM SCREEN PERFORMANCE.
The E90fB is the large screen CRT with big performance and an affordable price
tag. Perfect for demanding business, SOHO and education applications.
It's not
just another quality CRT. It's a ViewSonic. |
 |
 |
 |
|
Features
0.20mm
horizontal dot pitch; 0.25mm diagonal dot pitch
Ultra-fine dot pitch delivers clear, crisp images with precise picture
definition, even at the highest resolution.
1792x1344
maximum resolution
Displays a maximum resolution of 1792x1344; 1280x1024 @ 80Hz filcker-free refresh
rate for easy-on-the-eyes viewing.
PerfectFlat® screen
for distortion-free images
Absolutely flat screen provides realistically proportioned, precise images with
reduced reflection, image distortion and eye fatigue.
SuperClear® technology
SuperClear screen technology incorporates enhanced phosphor treatment and optimized
glass filter to deliver vivid colors and image clarity.
OSD
lock secures your settings
When activated, user-controlled OSD lock function prevents changes to monitor
settings, maintaining an optimized image.
OnView® controls
This user-friendly control system easily adjusts image quality, size, position
and geometry for optimal viewing.
MPR
II and ENERGY STAR® qualified
Complies with the world's strictest standards of low radiation, safety, ergonomics
and power management while saving cost through automatic power saving modes.
Three-year
limited warranty
Product Specifications:
| CRT |
| Type |
19.0" (18.0" viewable)
90° deflection |
| Dot Pitch |
0.20mm (horizontal) x 0.13mm (vertical);
0.25mm diagonal |
| Phosphor |
Pigment coated P22 (Cd free) |
| Glass Surface Tint: |
TM~53.6%, anti-reflection, anti-static
screen coating |
| |
|
| VIDEO SIGNAL |
| Video |
RGB analog (75 ohms, 0.7 Vp-p) |
| Sync |
H/V separated (TTL) |
| Frequency |
Fh: 30~86kHz, Fv: 50~160Hz |
| |
|
| COMPATIBILITY |
| PC |
IBM and compatibles (from VGA up
to 1792x1344) |
| Mac®** |
Power Mac/G3/G4/G5 (from 640x480
to 1600x1200) |
| Others** |
Most workstations |
| |
|
| CONNECTOR |
| Analog |
15-pin mini D-sub (high density) |
| Power |
3-pin plug (IEC320) |
| |
|
| POWER |
| Voltage |
AC 100-240VAC, 50/60Hz (+/-3) |
| Consumption |
100W (typ) |
| |
|
| CONTROLS |
| Basic |
Power, 1, down, up, 2, recall |
| On
View® |
Contrast,
brightness, H./V. size, H./V. position,
zoom, pincushion, trapezoid, pinbalance,
parallelogram, tilt, moiré reduction,
degauss, ViewMatch® (9300, 6500,
5000, user), OSD position, language,
ViewMeter®, memory recall |
| |
|
| VIDEO INPUT |
| Bandwidth |
210MHz Pixel Clock (-3 dB nominal) |
| |
|
| MISCONVERGENCE |
| 0.25mm (max) at center |
| 0.35mm (max) at corner |
| |
|
| DISPLAY AREA (HORZ. x
VERT.) |
| Factory Setting |
352mm x 264mm (typ) |
| Full Scan |
360mm x 270mm (dependent upon timing
signal) |
| |
|
| OPERATING CONDITIONS |
| Temperature |
32-104° F (0-40° C) |
| Humidity |
5-95% (non-condensing) |
| |
|
| DIMENSIONS (WxHxD) |
| Physical (mm) |
445mm x 424mm x 465mm |
| Physical (in.) |
17.6" x 16.7" x
18.3" |
| |
|
| WARRANTY |
| Three-year limited warranty on CRT,
parts and labor. |
| |
|
| WEIGHT |
| Net |
39.7 lb. (18.0 kg) |
| Gross |
46.7 lb. (21.2 kg) |
| |
|
| PACKAGE CONTENTS |
| CRT display, power cable,
15-pin VGA video cable (attached),
Quick Start Guide, ViewSonic Wizard
CD |
| |
|
| REGULATIONS |
| UL/cUL,
FCC-B, CB, DHHS, ICES 003, NOM, TUV/GS,
TUV/Ergo, MPR II, GOST-R, SASO, BSMI,
CCC, PSB,RoHS Argentina - TUV/S,
ENERGY STAR® '05,
CE |
| |
|
| POWER MANAGEMENT |
| Meets
MPR II and ENERGY STAR® '05 standards |
| |
| * These are recommendations
only. There are variables that may
require alterations to these dimensions,
such as wall mount depth, non-ViewSonic
stand height, etc. Specifications and
pricing subject to change without notice.
Selections, offers and programs may
vary by country; see your ViewSonic
representative for complete details.
Prices in U.S. dollars. |
|
|
|
