Widescreen LCD with 5ms Video Response
Extreme widescreen clarity.

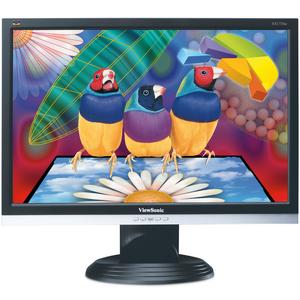

ViewSonic’s 19" VA1926w LCD brings new clarity to budget-pricedwidescreen displays. Prepare to be amazed at this display’s EXTREME CLARITY, AMAZING COLOR AND STUNNING BRIGHTNESS. With 2000:1 DYNAMIC CONTRAST RATIO (typ), 1440x900 resolution and fast ClearMotiv® 5ms video response, graphics videos and spreadsheets have never been clearer. Be more productive while viewing two full-size documents side-by-side or WORKING IN MULTIPLE APPLICATIONS SIMULTANEOUSLY on the widescreen display. With its stylsih, slim bezel and VESA® wall-mount compliance, the VA1926w fits seamlessly into any office decor. It's the right choice for home/small office users, corporate professionals and gamers.
Features
- Fast 5ms video response delivers superior picture clarity
- Full 19" viewable widescreen
Displays a full, flat 19"" viewable area with crisp detail and fully saturated color.
- 1440x900 native resolution
Incredible image detail for sharp text and graphics.
- 2000:1 dynamic contrast ratio Learn more about dynamic contrast ratio.
Provides for darker black levels and better overall front-of-screen performance.
- Stylish slim-bezel design
The thin bezel lets you see more without taking up valuable desktop real estate. The high neck and floating head design accentuate the visual experience.
- OptiSync® digital/analog inputs expand your connectivity
Multi-mode input technology supports both digital (DVI) and analog (VGA) signals for ultimate compatibility and configuration flexibility.
- OSD/power lock secures your settings
Prevents changes to monitor settings and maintains an optimized image.
- OnView® controls for superior screen adjustability
Screen adjustments are precisely made via an easy-to-use on-screen menu.
- Windows Vista certified
- ViewSonic Wizard included
User-friendly Wizard software automates the setup process to deliver optimized screen performance.
- PC and Mac® compatible
- TCO'03 and ENERGY STAR® qualified
Specifications
| LCD |
Type |
19" color TFT active matrix WSXGA LCD |
| |
Display Area |
16.1" horizontal x 10.0" vertical; 19.0" diagonal |
| |
Optimum Resolution |
1440x900 |
| |
Brightness |
300 cd/m2 (typ) |
| |
Contrast Ratio |
700:1 static (typ), 2000:1 dynamic (typ) |
| |
Viewing Angle |
160° horizontal, 160° vertical |
| |
Response Time |
5ms (typ) |
| |
Panel Surface |
Anti-glare |
| |
Light Source |
Long life, 50,000 hrs. (typ) |
|
| VIDEO INPUT |
Analog/Digital |
RGB analog (75 ohms, 0.7 Vp-p)/HDCP-DVI |
| |
Frequency |
Fh: 30~82kHz, Fv: 50~75Hz |
| |
Sync |
H/V separated (TTL) |
|
| COMPATIBILITY |
PC |
VGA up to 1440x900 non-interlaced |
| |
Mac®* |
Power Mac" G3/G4/G5 up to 1440x900 |
|
| CONNECTOR |
Analog/Digital |
15-pin mini D-sub/Digital |
| |
Power |
3-pin AC plug (CEE22) |
|
| POWER |
Voltage |
AC 100-240V (universal), 50/60Hz (auto switch) |
| |
Consumption |
32W (typ) |
|
| ERGONOMICS |
|
Tilt -5°/+20° |
|
| CONTROLS |
Basic |
Power, 1, down, up, 2 |
|
| OPERATING CONDITIONS |
Temperature |
32-104°F (0-40°C) |
| |
Humidity |
20-90% (non-condensing) |
|
| DIMENSIONS
(WxHxD) |
Physical with stand |
17.3" x 15.2" x 7.7" (440mm x 383mm x 195mm) |
| |
Physical without stand |
17.3" x 12.0" x 2.4" (440mm x 304mm x 62mm) |
|
| WEIGHT |
Net with stand |
8.8 lb. (4.0 kg) |
| |
Net without stand |
7.7 lb. (3.5 kg) |
| |
Gross with stand |
11.2 lb. (5.1 kg) |
|
| REGULATIONS |
|
UL, cUL, FCC-B, CB, CE, NOM, TUV-S, TUV/GS, TUV/ERGO (covers ISO13406-2), MPR II, BSMI, CCC, ENERGY STAR,® PSB, C-TICK, RoHS, WEEE, VCCI, GOST-R, SASO, TCO03, EPEAT-Silver |
|
| RECYCLING/DISPOSAL |
|
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. |
|
| PACKAGE CONTENTS |
|
LCD display, video cable, power cable, Quick Start Guide, ViewSonic Wizard (DVI cable not included) |
|
| POWER MANAGEMENT |
|
Meets TCO-03 and ENERGY STAR® standards |
|
| WARRANTY |
|
Three-year limited warranty on parts, labor and backlight |
|
