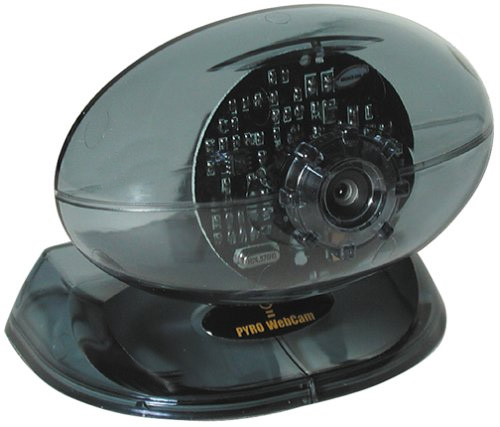

ADS API-200 Pyro 1394 Web Cam - Works natively with iChat!

Click for larger image
FireWire webcam technology offers the best image quality over the Internet, period.

Unlike USB cameras that compress the video stream, the PYRO 1394 Web Cam has ZERO compression & utilizes a high-quality Sony(r) CCD so you can make the best possible impression.

Top Features:

  • Offers the sharpest image quality on the Net
  • IEEE-1394a interface, fully compliant connection at 100/200/400 Mbps
  • High-quality videoconferencing
  • Clear, vivid pictures with 24 bit true color processing
  • True Plug & Play performance
  • Works with Apple iChat and other popular applications
  • Video Snapshots
  • Still frame to full motion video
  • Plug and Play device
  • Digital YUV or RGB output
Read MacWorld's comparison "FireWire Web Cams: Apple's iSight Goes Up Against Established Products" for more information about this product.
Product Specifications:
CCD image sensor Sony
Optical size 1/4 inch format
Number of effective pixels 659(h) x 494(v)
Interface formats 640 x 480, 320 x 240, 160 x 120
Video modes YUV 4:1:1, 4:2:2, 4:4:4, RGB 24-bit
Frame rate 30 frames/sec. at 640 x 480 format
Brightness Automatic or manual controlled
White balance Manual adjust, or automatic
Focal length 4.00 mm
Back focal length 3.50 mm
F # 2.0
Focus area 1.0 cm to infinity
Angle of view 62 degree, diagonal
Distortion <-12.0 %
Image Controls Brightness, Contrast, Saturation, Sharpness, Gamma, Exposure, White Balance and Backlight compensation
Applications:
  • Videoconferencing
  • Video E-mail
  • Live Web Cam broadcasting with Teveo
  • Video Snapshots
PYRO 1394 Web Cam includes:
  • PYRO 1394 Web Cam with attached 1394 cable
  • CD with bundled software and drivers
  • User's manual
Software for Mac:

For OS X

  • Apple iChat (Not included - but natively supported!)
  • Pyro WebCam Driver - OS X Driver for the Pyro WebCam
  • ISpQ VideoChat - Main Client software bundle for VideoConferencing on the Internet.
  • PhotoShow - Creat Photo SlideShows for Sharing on CD or through the Internet for FREE.
  • BTV Pro - 15 day Trial version. Allows you to capture video and still frames from your PyroWebCam or from any video source
  • Oculus 3 - Create your own web cam page with security application

For OS 9.X

  • Pyro WebCam Driver - Installer that will copy the PYRO WEBCAM enabler to your extension folder
  • ISpQ VideoChat - Main Client software bundle for VideoConferencing on the Internet.
  • PhotoShow - Creat Photo SlideShows for Sharing on CD or through the Internet for FREE.
  • iVisit - OS 9.X client software that will allow you to have web based video conferencing with other mac's and pc's that are are connected to the internet
  • BTV Pro - 15 day Trial version. Allows you to capture video and still frames from your PyroWebCam or from any video source
  • Oculus 3 - Create your own web cam page with security application
Software for PC:
  • MS Netmeeting
  • MS Media Player 7
  • ArcSoft Video Impression
  • ArcSoft Photo Fantasy
  • Teveo
Sony CCD Description:
The imager is a 1/4-inch optical interline CCD solid-state image sensor with a square pixel array which supports VGA format. Progressive scan allows all pixel signals to be output independently within approximately 1/30 second. This chip features an electronic shutter with variable charge-storage time, which makes it possible to realize full-frame still image without a mechanical shutter. High resolution and high color reproductivity are achieved through the use of R, G, B primary color mosaic filters. Further, high sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.
Operating System Requirements:
Macintosh:
  • Desktops: Any PowerMac G4/G5, iMac DV or later, Blue and White G3 or Beige Mac with Firewire PCI Card
  • Portables: Any PowerBook G4, iBook G3/G4, or G3 "Pismo" w/ Built in Firewire / G3 "Wallstreet" or "Lombard" with FireWire CardBus Card. NOTE: Some early "Pismo" sytems may experience problems using this due to a FireWire bus problem. Use of a FireWire CardBus card may be required to alleviate this issue.
  • Mac OS 9.0 or Better or OS X 10.1.2. Tested as fully compatible with Mac OS X 10.3/10.4 using Apple iChat.
  • 128MB of system RAM
  • 100MB of free hard disk space
  • CD-ROM drive for installation of the bundled software
  • Microphone required audio recording and conferencing (either third party or built in)
  • A modem or internet connection is required for the application of videoconference and video mail software
PC:
  • Windows 98SE, 2000, ME and XP
  • Intel Celeron (400 Mhz & up) / Pentium III or higher / AMD Athlon/ Duron CPU's
  • Built in OHCI FireWire Port or PYRO PCI Host 1394 Card
  • 128MB RAM
  • 100MB of Hard Drive Space
  • CD-ROM drive for installation of the bundled software
  • Microphone required audio recording and conferencing (either third party or built in)
  • A modem or internet connection is required for the application of videoconference and video mail software
Dimensions:
  • White Box Package Dimensions: 9"W x 9"H x 4.5"D
  • UPC 7-57887-20000-8
  • PART# API-200
Warranty:
  • One Year Manufacturer Warranty
