OWC Install Videos / MacBook 13" Unibody (Late 2009 / Mid 2010) / Memory

Apple MacBook 13-inch Unibody (Late 2009 / Mid 2010)

MacBook 13" (Late 2009 / Mid 2010)

Memory Install Video

Step-by-step video of how to install memory in the Apple MacBook 13-inch Unibody (Late 2009 / Mid 2010).

Skill Level: "Easy" | Duration: 4:07 |
Model ID: MacBook6,1 & MacBook7,1 How to find your Mac's Model ID

OWC SuperSlim
for Apple SuperDrive

A perfect companion for the OWC Data Doubler

Memory Solutions

Upgrades 4GB to 8GB

OWC Data Doubler
only $29.00

Drive Solutions
from $49.88

14 Piece Toolkit
only $16.88

DISCLAIMER: Although every effort is made to provide the most accurate and useful information in OWC Videos, no warranty, expressed or implied, is made regarding accuracy, completeness, reliability, or usefulness of any information. Models used for demonstration on Videos may vary from that used by you. You use the Videos at your own risk, and you agree OWC shall not be held liable for any use of the information contained in OWC Videos. Your use of OWC Videos is expressly subject to the complete Site Terms and Conditions available at: http://eshop.macsales.com/service/terms

Interested in using these videos on your site view our video usage policy.

How to Upgrade/Replace the Memory in a MacBook (Late 2009) OWC Video Transcript Download as PDF (size here) Skill Level Easy Time to Complete Approximately 10 Minutes Tools You'll Need

Small Phillips Screwdriver

Caution

CAUTION

Perform upgrade using proper anti-static precautions
Discharge static electricity before beginning
Work on a static free surface

Part One: Removing the Original Memory

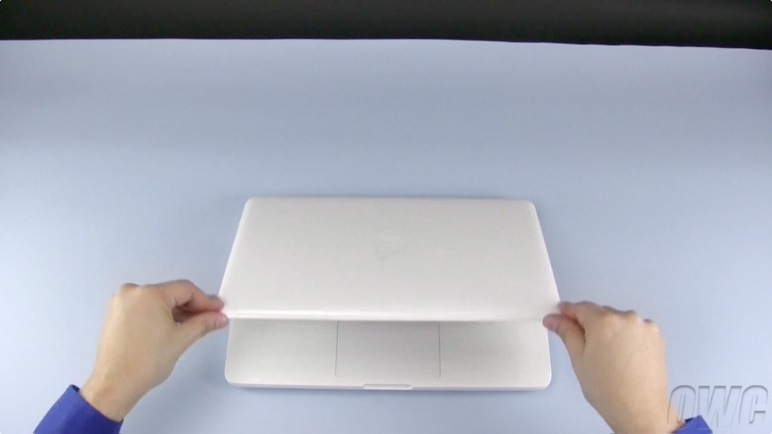

1: The first step is to close the MacBook and flip it over.

Macbook 2009 Upgrade Step 1

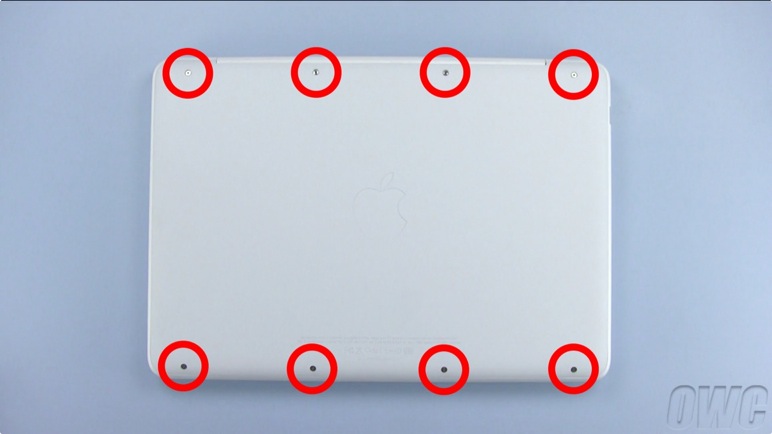

2: To access the inside of the MacBook there are 8 Phillips screws to remove from the bottom cover. Start with the top 4 screws, then proceed to the bottom 4.

Macbook 2009 Upgrade Step 2

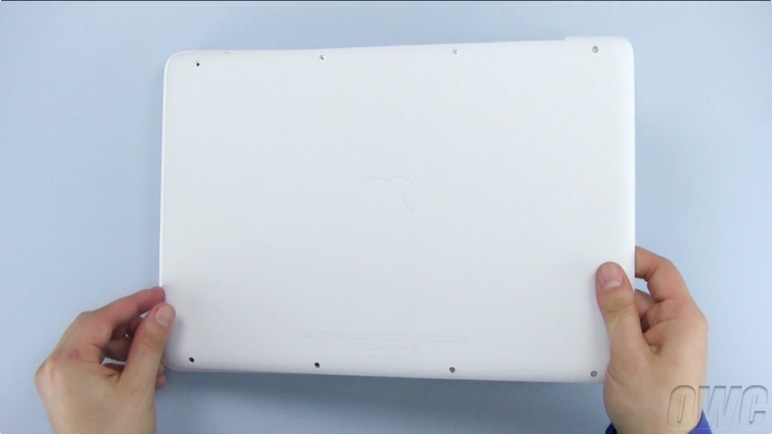

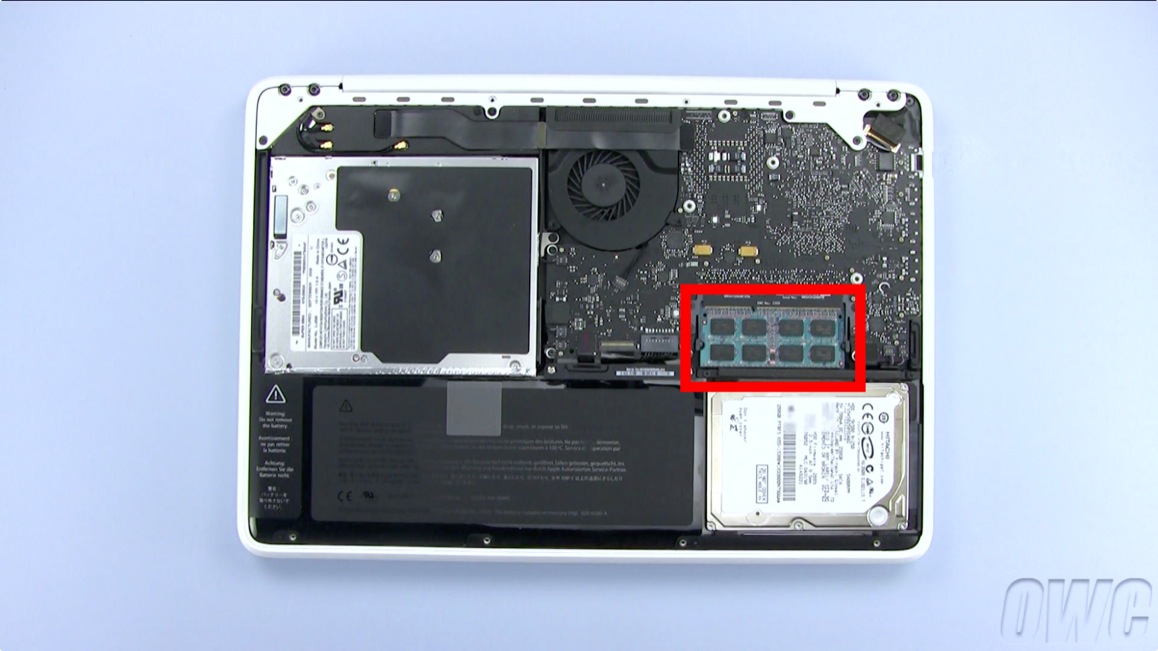

3: a. The bottom cover can now be removed. Simply lift up on the bottom cover to detach it from the two clips on the inside, then set it aside.; b. The memory is located near the middle of the system.

Macbook 2009 Upgrade Step 3a

Macbook 2009 Upgrade Step 3b

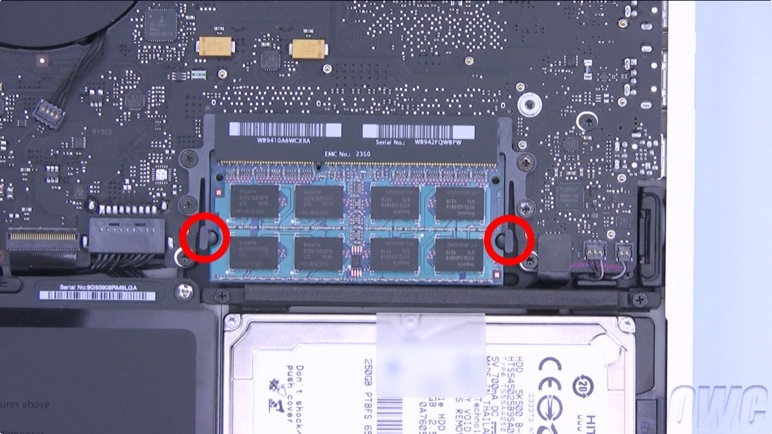

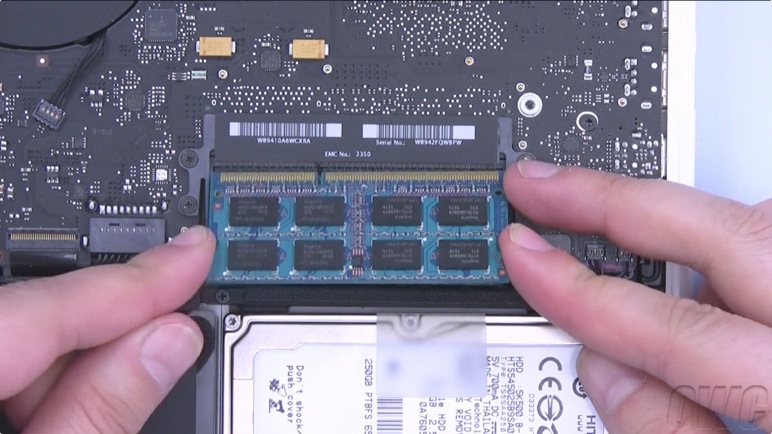

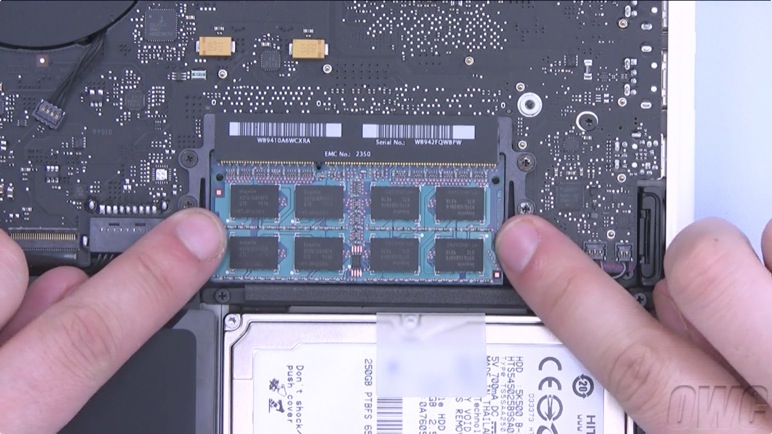

4: a.To begin removing the original memory, simply push outward on the two retaining arms until the top module pops up.; b.You can then slide the module straight out of the slot.

Macbook 2009 Upgrade Step 4a

Macbook 2009 Upgrade Step 4b

Macbook 2009 Upgrade Step 4c

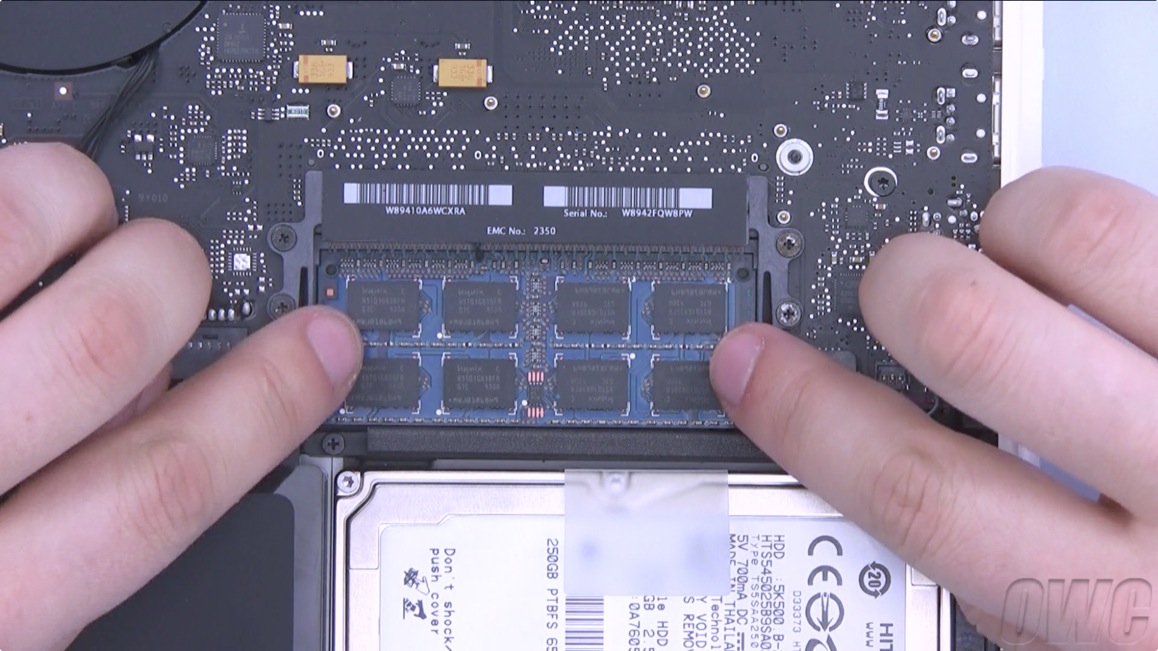

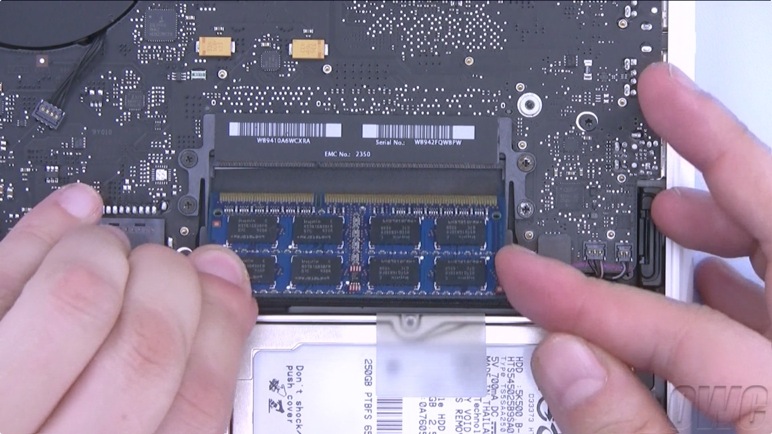

5: Repeat the process for the lower module. You may need to push on the retainer arms twice to eject the memory completely.

Macbook 2009 Upgrade Step 5a

Macbook 2009 Upgrade Step 5b

Part Two: Installing the New Memory

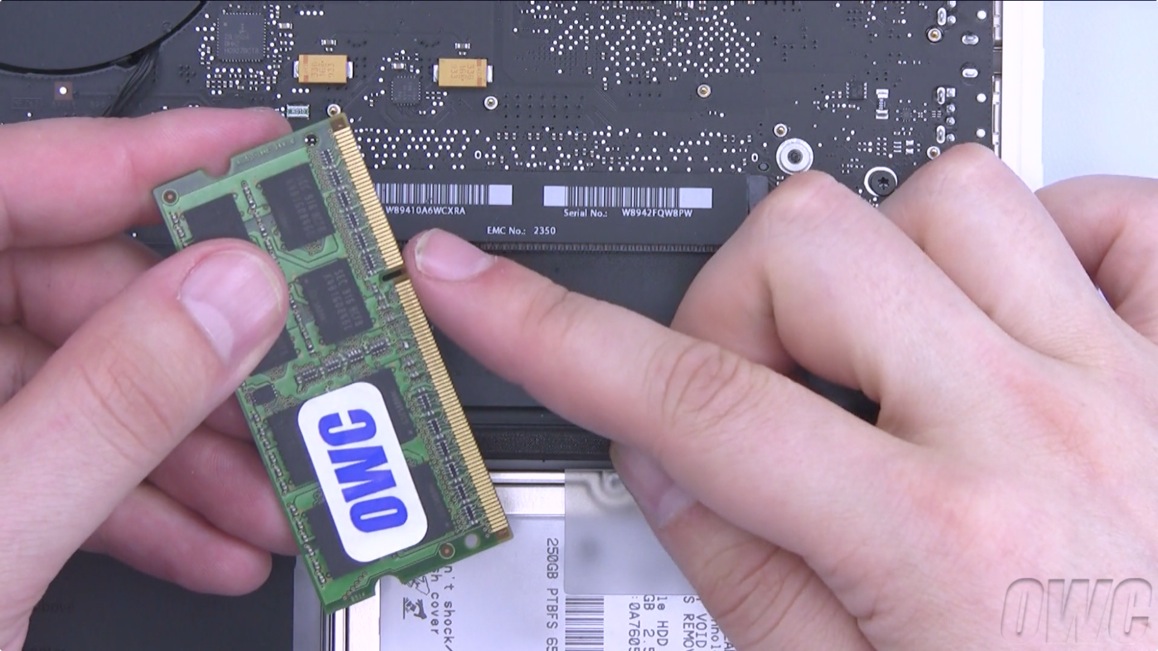

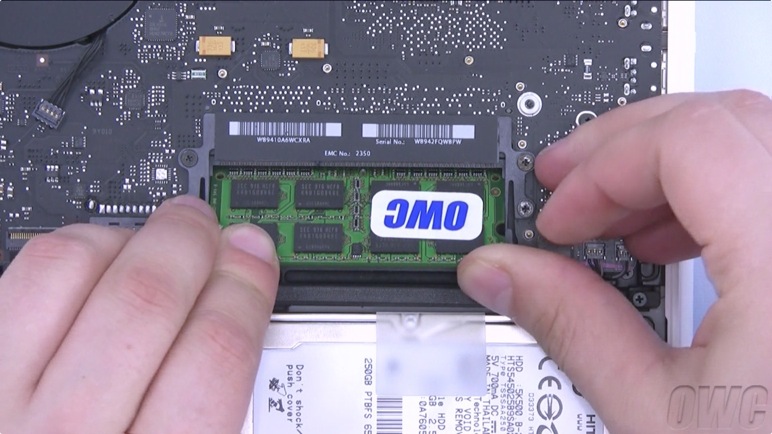

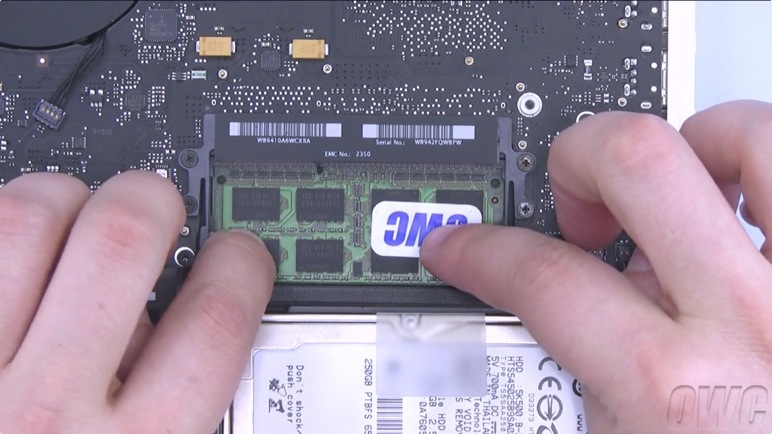

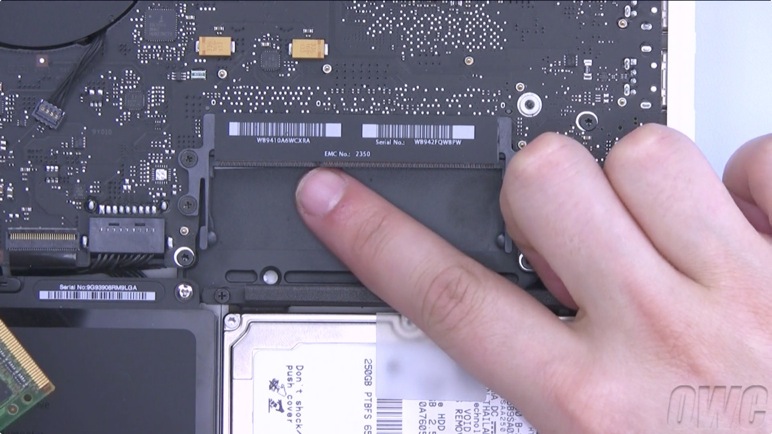

6: a.To install the new memory, first line up the notch on one of the memory modules with the pin in the memory slot. Then slide the module into the lower slot until it is fully seated.; b.Finally, push down on the module until it clicks into place.

Macbook 2009 Upgrade Step 6a

Macbook 2009 Upgrade Step 6b

Macbook 2009 Upgrade Step 6c

Macbook 2009 Upgrade Step 6d

7: With the lower memory module installed, repeat the process with the top module.

Macbook 2009 Upgrade Step 7a

Macbook 2009 Upgrade Step 7b

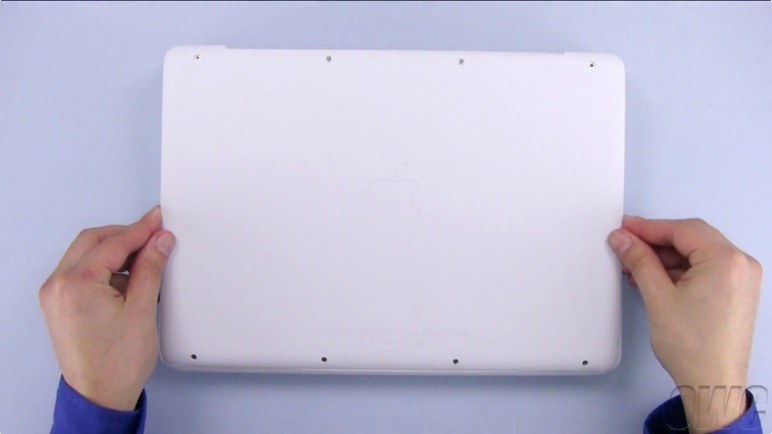

8: Once the memory is installed, set the bottom cover back into place.

Macbook 2009 Upgrade Step 8

9: Using a Phillips screwdriver, replace the 8 screws that hold the bottom cover in place.

Macbook 2009 Upgrade Step 9

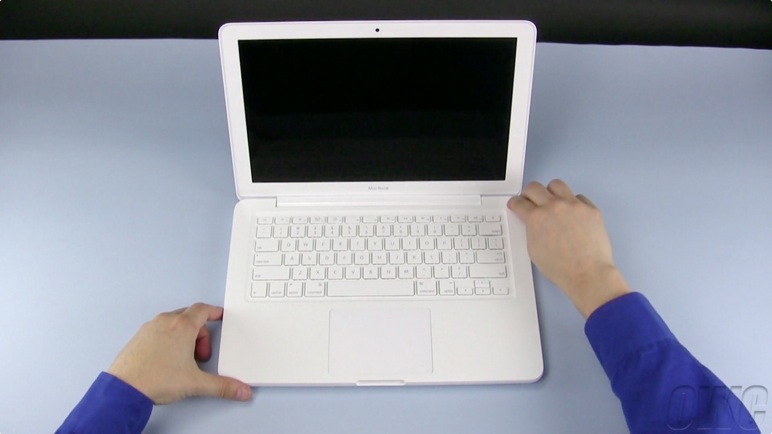

10: Once the bottom cover is secured, the MacBook can be flipped over and powered on.; The installation is now complete!

Macbook 2009 Upgrade Step 10a

Step 10b

Thank you for choosing OWC as your upgrade provider. For additional assistance with this upgrade, please contact our award-winning technical support team, available 24x7.
