Crucial / Micron

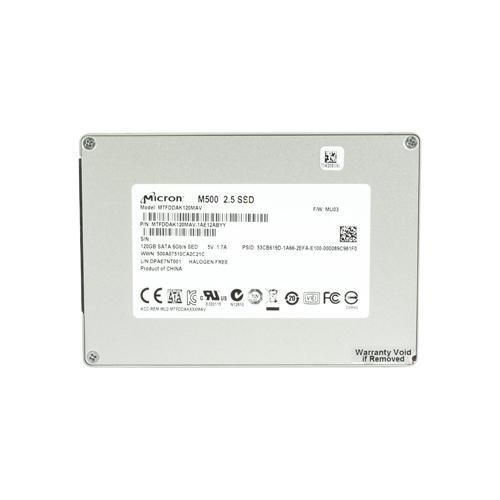

120GB M500 Solid State Drive

2.5-inch | SATA 6.0Gb/s
Transform your system's performance.
Dramatically faster than a hard drive, the Crucial / Micron M500 SSD isn't just a storage upgrade - it's a complete system transformation. Designed to keep your system up to speed with today's multitasking demands that often require instant and simultaneous use of apps, websites, downloads, work files and more, the Crucial / Micron M500 delivers nearly instant boot times, powerful data transfer speeds, increased multitasking capability, and rock-solid reliability - all at an affordable price. The Crucial / Micron M500 also includes top-level encryption technology to keep your data safe and is available in capacities up to terabyte-class. Built on proven quality, the Crucial / Micron M500 SSD has passed hundreds of SSD quality tests and over a thousand hours of prerelease validation testing. Don't settle for anything less.
Micron® Quality
As a brand of Micron, one of the largest NAND manufacturers in the world, Crucial SSDs are designed and developed in-house with the latest technology. This means four things: hundreds of SSD qualification tests, over a thousand hours of prerelease validation testing, 1.5 billion dollars invested in R&D, and more than 30 years of industry expertise.
Adaptive Thermal Protection
Greater thermal management enables the Crucial / Micron M500 to work with the host computer to dynamically adjust power consumption based on usage demands, which helps address the cooling challenges of ultra-small, thermally constrained systems.
Hardware Data Encryption
The Crucial / Micron M500 SSD offers top-level hardware-based encryption, enabling enhanced data security. Our AES 256-bit hardware encryption engine and TCG Opal 2.0 compliant firmware allow the drive to operate at full speed without the performance loss that's typically found in drives that use software-based encryption technology.

120GB Crucial M500 Specifications:


Form Factor
2.5″ SSD
SATA 6Gb/s (SATA 3GB/s compatible)
Formatted Capacity2
20nm Micron MLC NND
SMART Attributes
Self-monitoring, analysis, and reporting technology (SMART) command set
Manufacturer Model Number
RoHS Compliant


Height (max)
7.0mm (0.275″)
Width (max)
69.85mm (2.750″)
Length (max)
100.50mm (3.957″)
Weight (typical)
75g (0.165 lbs.)


MTBF (Mean Time Between Failures)
1,200,000 hours
72TB total bytes written (TBW), equal to 40GB per day for 5 years
3 Year Crucial Limited Warranty


Sequential Read (up to)
500 MB/sec (SATA 6Gb/s)
Sequential Write (up to)
130 MB/sec (SATA 6Gb/s)
Random 4K Read
62,000 IOPS
Random 4K Write
35,000 IOPS

Environmental (Operating)

1500G / 1.0ms
Temperature (°F)
32°F to 158°F
Temperature (°C)
0°C to 70°C
2-500Hz at 3.1G

Environmental (Non-Operating)

1500G / 1.0ms
Temperature (°F)
-40°F to 185°F
Temperature (°C)
-40°C to 85°C
2-500Hz at 3.1G


Idle (Typical)
0.0 bels
Seek (Typical)
0.0 bels
  1. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.
  2. In terms of standard gigabytes, 1GiB ≈ 1.074GB and refers to the actual formatted capacity of shown under Mac OS 10.5 or earlier and Microsoft Windows OS.
  3. Specific application environments such as temperature and duty cycle will affect the overall reliability rates.
Manufacturer provided specifications for Crucial p/n CT120M500SSD1 UPC#: 649528764171 | Micron p/n: MTFDDAK120MAV



The best warranty is one you never have to use - but should the need occur - we're proud to provide a superior level of support and service coverage to our customers.

90 Day OWC Replacement Warranty
OWC is proud to offer an extended replacement window of 90 days on new internal hard disk drives. Once a return authorization number has been issued and we receive the problematic drive back, you will get a brand new replacement drive, rather than a factory refurbished drive.

3 Year Crucial Warranty
After 90 days, the drive is fully backed by the manufacturer to be free from defects in material and workmanship for the remainder of the three year warranty period.

Customer Ratings

Write a Review 5 / 5 2 out of 2 (100%) reviewers would recommend this product
Verified Buyer Top 100 Contributor
Reviewer: Mdwycyoff Location: Indiana Age: 55-65 Experience Level: Power User Owned Product: over 6 months
Rating: 5/5 Great SSD for OS X El Capitan and Public Betas January 25, 2016 I installed this 120GB Micron SSD drive in my mid-2011 21.5" iMac about 9 months ago (June 2015), using the OWC installation kit to add an internal SSD to an existing HDD to a mid-2011 iMac. SSD installation is time consuming, and probably daunting to some, because it requires removal of screen, DVD, and system board to install and place the power and data cables, but I had no difficulties with it by following the detailed OWC YouTube video of the procedure. (I also upgraded my HDD at the same time using the revised OWC HDD kit containing the updated temperature sensor module for mid-2011 iMacs, again following the updated OWC YouTube video.)

I use the SSD exclusively for testing the latest Public Beta versions of OS X and apps, and I've had no issues at all. Boot-up and shut-down times are extremely fast, when compared to a 1TB 7200rpm HDD in the same computer.

120GB is enough capacity to contain OS X and all the Apple apps now supplied for free, with more than 70GB free for data and other apps you want to try out.

I would recommend this item to a friend!

Verified Buyer
Reviewer: Anonymous Location: Key Largo FL Age: 55-65 Experience Level: Home User Owned Product: 1-3 months
Rating: 5/5 Excellent Replacement Drive for Macbook Pro January 30, 2015 Replaced my HD in 2007 Macbook Pro with this drive. Installation was easy after reviewing OWC video and new SSD drive took about 30 minutes to complete. I then cloned the old HD over to the new SSD drive and you are done. This SSD greatly improves read write speeds and is silent in operation. I also feel my battery life is extended with the new drive.

I would recommend this item to a friend!
